WiFi Module 4

Description

Works with ODROID series
Android and Linux compatible

Please update your OS to the latest version if it doesn’t work.

• MediaTek(Ralink) RT5572N chipset
• Dual-Band MIMO 2×2 Solution ( 2×2 MAC/BB/RF+PA)
• USB 2.0 host interface
• LED for WiFi Link Activity and WPS status indicators
• Dimension : 68.5 x 22.8 x 8.5 mm
• Weight : 12g

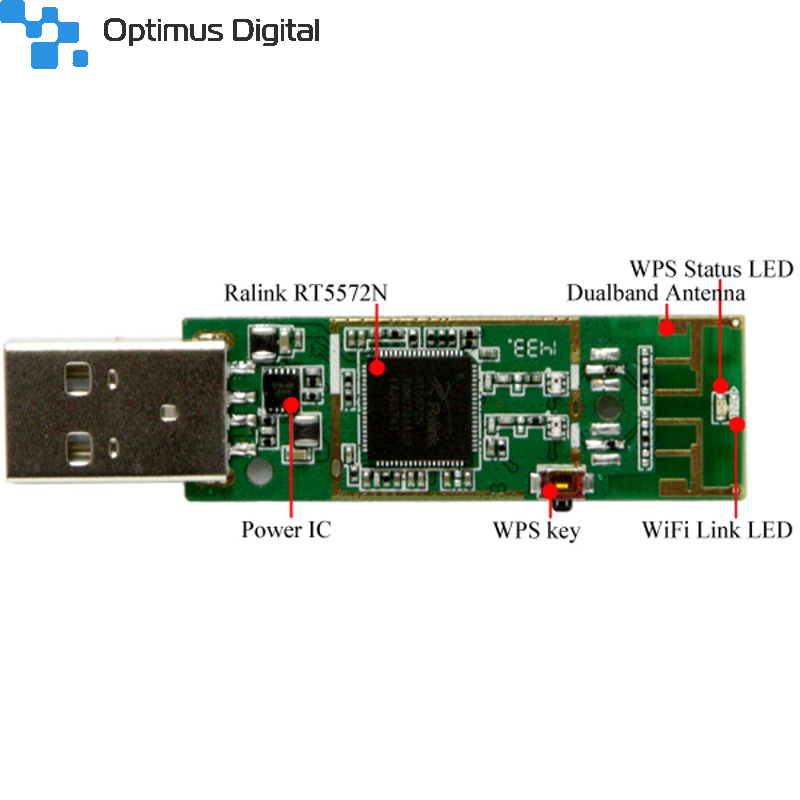

Board Detail

Experimental test with C2 USB 2.0 port

Equipments for test.

1. ODROID-C2 with Ubuntu 16.04, updates as 20-10-2016.
2. Provided 802.11n Wifi Adapter, ODROID branded 2×2 MIMO WiFi Module 4
3. Ubiquiti UAP-AC-PRO 3×3 MIMO Wifi Access Point, firmware: 3.4.19.3477
4. TP-Link Jetstream 24 Port – TL-SG3424, firmware: 1.0.2
5. Dell PowerEdge T430, Xeon E5-2650v4, 128GB RDIMM DDR4-2400, Broadcom 5720, Ubuntu 16.04, updates as 20-10-2016.

Network Configuration

• 2.4Ghz Network configured for Channel 6 (2437Mhz) with HT40 enabled.
• 5Ghz Network configured for Channel 36 (5180Mhz Center, 5170-5190) 20Mhz Bandwidth, VHT80 enabled.
• 2.4Ghz was established at 144Mbit/s.
• 5Ghz was established at 300Mbit/s.
