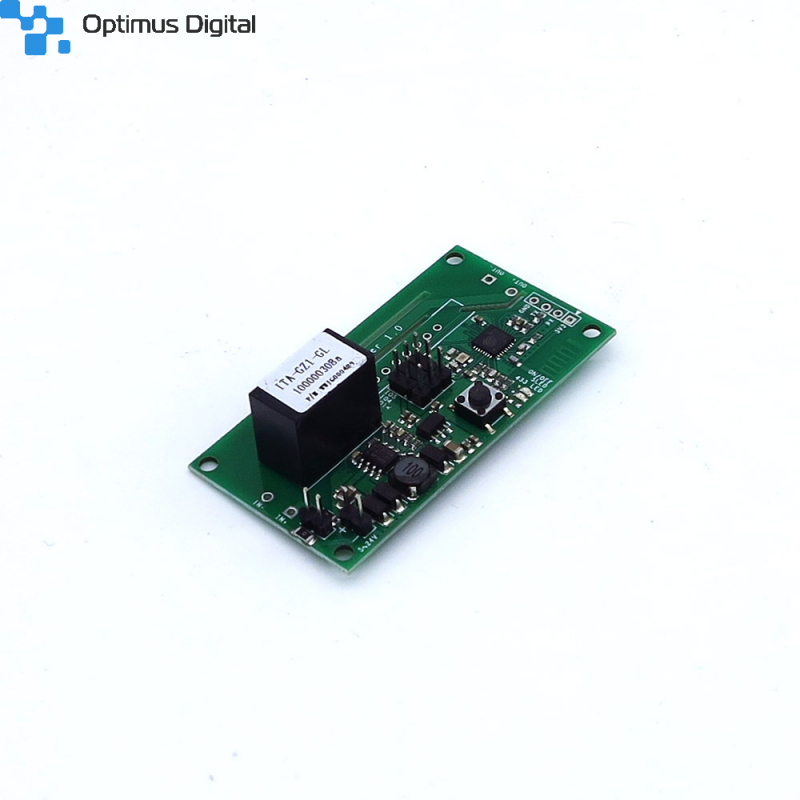

Modul Inteligent de Pornire/Oprire Wireless WiFi

Description and specifications:

With this interceptor you can easily control various devices, you can design different projects (such as a smart lock) and more. It accepts voltages ranging from 5V to 24V. It requires some simple soldering. Control is done with the eWeLink application that offers numerous options.

It also has GPIO pins for further development.

• Supports voltages from 5V to 24V;
• Quick SSID and application password;
• Automatic connection to server
• Timer functions;
• Pini GPIO;
• Logic voltage level: 3.3V;
• Operating temperatures: 0ºC-40ºC;
• Operating current: 80mA;
• Standby power consumption: 1.0mW;
• Sleep mode (10 uA);
• Dimensions: 65 x 34 x 16mm.

Wi-Fi Features:

• Support 802.11 b / g / n;
• 32-bit MCU with low power consumption, frequencies between 80 MHz and 160 MHz;
• TCP / IP protocols stack;
• TR switch, LNA, power amplifier;
• Output power: +20 dBm;
• WiFi @ 2.4 GHz, WPA / WPA2 support;
• WEP / TKIP / AES encryption
• Support STA / AP / STA + AP;
• UART, I2C, PWM, GPIO interfaces;
• Wake up and transfer in 2ms.
