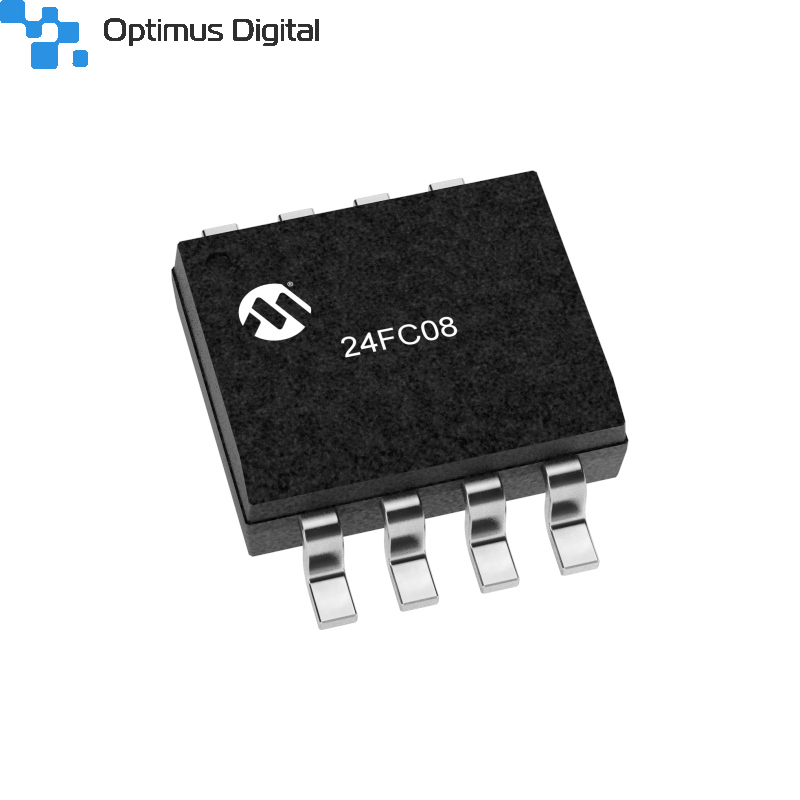

> >24FC08-I/SN
24FC08-I/SN View larger
Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

24FC08-I/SN

0104210000079210

New product

Features

  • Single supply with operation down to 1.7V
  • 2-wire serial interface, I2CTM compatible
  • 100 kHz, 400 kHz, and 1 MHz clock compatibility
  • More than 1 million erase/write cycles
  • Data retention >200 years


See description for more details about the product.

Add to cart now!

More details

11 Items

$1.44
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

The 24FC08 is a 8Kb I2C™ compatible Serial EEPROM. The device is organized as four blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 µA and 1 mA, respectively. The 24FC08 also has a page write capability for up to 16 bytes of data. The 24FC08 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 UDFN and MSOP packages and is also available in the 5-lead SOT-23 package.


Additional Features

  • Single supply with operation down to 1.7V
  • 2-wire serial interface, I2C™ compatible
  • Schmitt Trigger inputs for noise suppression
  • Output slope control to eliminate ground bounce
  • 100 kHz, 400 kHz, and 1 MHz clock compatibility
  • Page write time 3 ms, typical
  • Self-timed erase/write cycle
  • 16-byte page write buffer
  • Hardware write-protect
  • ESD protection >4,000V
  • More than 1 million erase/write cycles
  • Data retention >200 years

Parametrics
Temperature Range -40C to +85C
Density 8K bits (x8)
Op. Volt Range (V) 1.7 to 5.5
Max. Clock Freq. 1 MHz
Page Size (bytes) 16
Write Protect Whole Array
Endurance 1,000,000


Don't delay. Buy today.


Add to cart now!
