FA0520F 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Air/Gas

Description

You might be searching for a pump that operates on 12 V this could be the best choice for your project.

This is a tiny 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Gas Air/Pump Gas Release Exhaust Discouraged Solenoid Exhaust Valve. Control gas flow in and out with this small Gas valve which operates on 12V dc.

Note:
Product Image may vary from actual product in terms of manufacturer and color according to the availability.

How it Works:

1. This valve act as closed (blocked flow) when not powered
2. When you apply a 5V power supply to the input, the valve gets open and the flow-through valve get started/li>
3. Removing the supply voltage again blocks the flow/li>
4. This is a two-way valve which means it can flow in both directions/li>

Working Modes:

1. When powered on, 1 and 2 are connected, 3 and 1,2 are not connected
2. When power is off, 1 and 3 are connected, 2 and 1, 3 are not connected

Specifications

• Operating Voltage: 12V DC
• Port Size: 5.5mm (All 3 i/o are of the same size)
• Power: Pneumatic
• Pressure: Vacuum
• Operating Temperature (^oC): -10 to 60
• Type: Air Valve

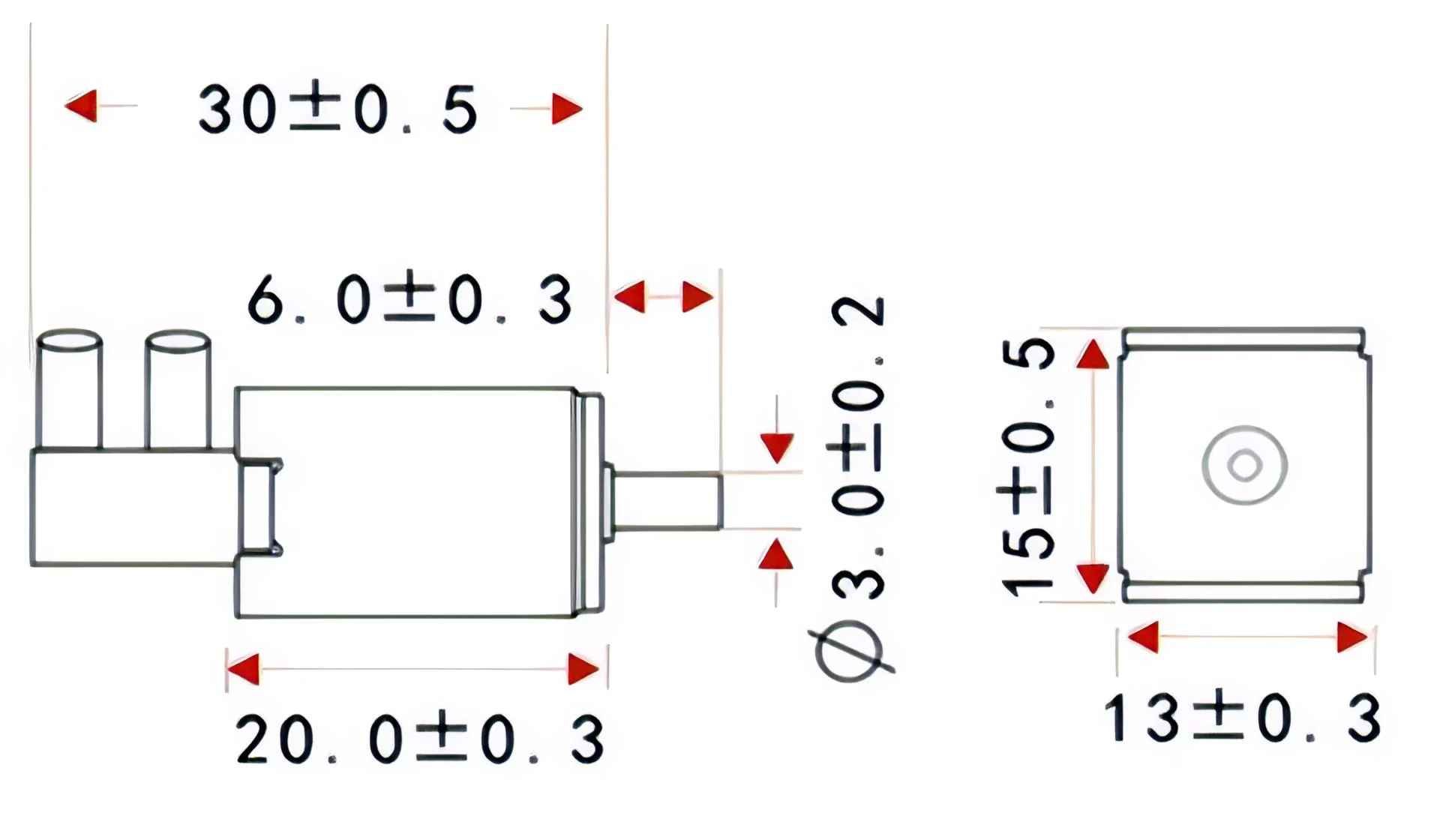

• Inner Diameter (ID) (mm): 1.6
• Outer Diameter (OD) (mm): 3
• Length (mm): 35
• Width (mm): 15
• Height (mm): 15
• Weight (gm): 20

Package Includes

1 x FA0520F 12V DC Solenoid Valve for Air/Gas
