40 x 200 x 12 mm Water Cooled Heatsink

Product Specifications

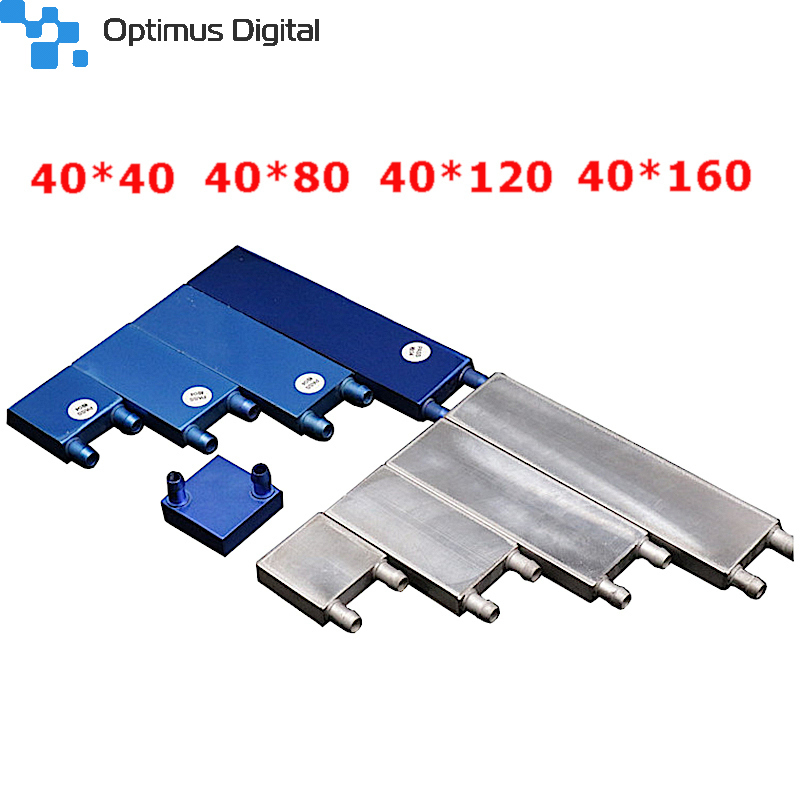

Silver and blue are mainly different internal structures. The blue surface is oxidized, not double-sided polished, the blue wall is thin, and the heat dissipation effect is better. The gold body is made of pure copper. Weighing only 117 grams, high-pressure water is strictly tested and does not leak water.

Silver and blue are mainly different internal structures. The blue surface is oxidized, not double-sided polished, the blue wall is thin, and the heat dissipation effect is better. The gold body is made of pure copper. Weighing only 117 grams, high-pressure water is strictly tested and does not leak water.

1. Use: Semiconductor refrigerating film exclusive water-cooled head, liquid-cooled water board, water-cooled exchanger, positive and negative are flat right angles, fully matched with the cooling sheet for semiconductor refrigeration film tailored, can do heat dissipation, cold transfer, cold water formation, etc...

2. Material: Aluminum, one-piece welded.

3. Pagoda water nozzle: outer diameter 9.5 mm (can be connected to the inner diameter of 7-8 mm soft water pipe), length 15 mm (manual measurement)

4. Throw very smooth, zero distance contact with the chip, good heat absorption effect.

5. All sizes of water-cooled heads are 12mm thick

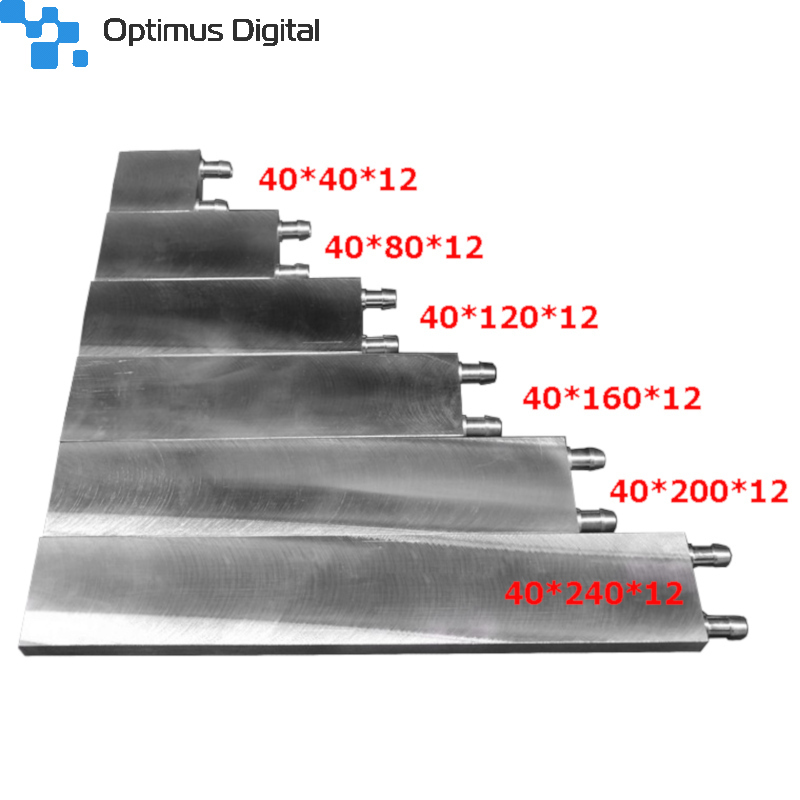

Dimensions

• Width: 40 mm.

• Length: 40 mm, 80 mm, 120 mm, 160 mm 180 mm, 200 mm and 240 mm.
