XH-W1401 Digital Temperature Controller (Thermostat) (220 V)

Technical data

• Temperature range: -9 ~ 99 ^oC

• Temperature control range: -9 ~ 99 ^oC

• Control accuracy: 1 ^oC

• Measurement accuracy: 1 ^oC

• Refresh rate: 0.5 S

• Measurement input: NTC (3950 - 10K 1%) waterproof sensor

• Power supply: 12 V DC

• Output: relay output up to 10 A

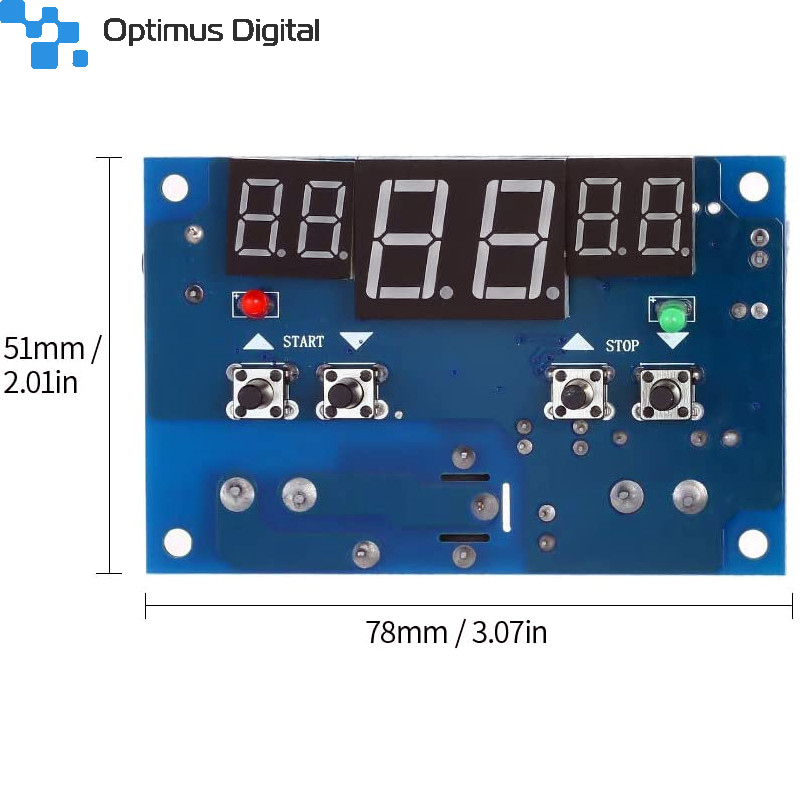

• Size: 78 x 51 mm

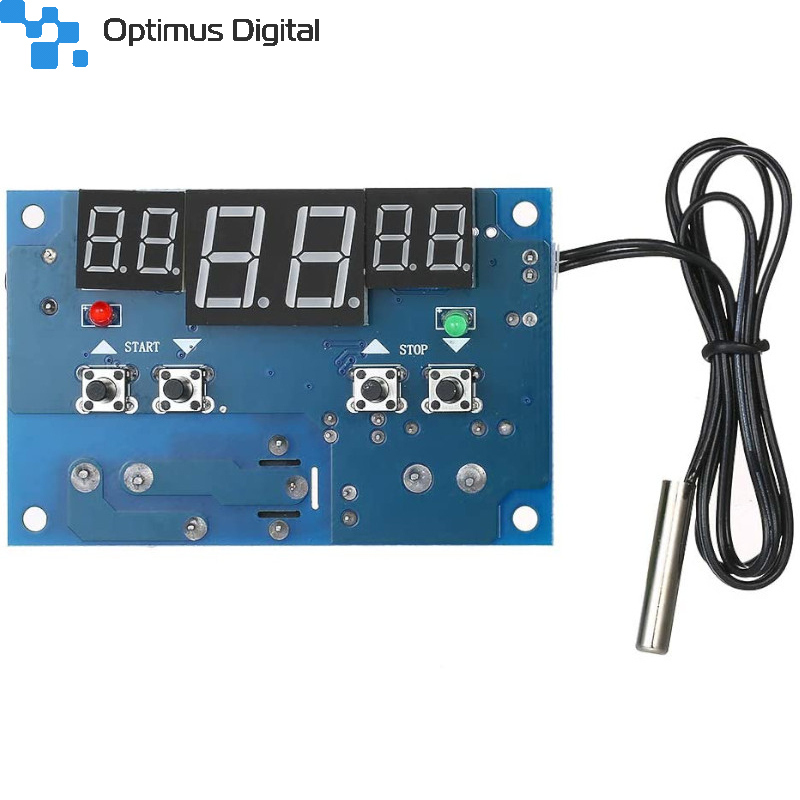

Device description

START Indicator: START(red) light is on, it indicates that the relay is closed and the controller is working.

STOP Indicator: STOP(green) light is on, it indicates that the relay is disconnected and the controller is no longer working.

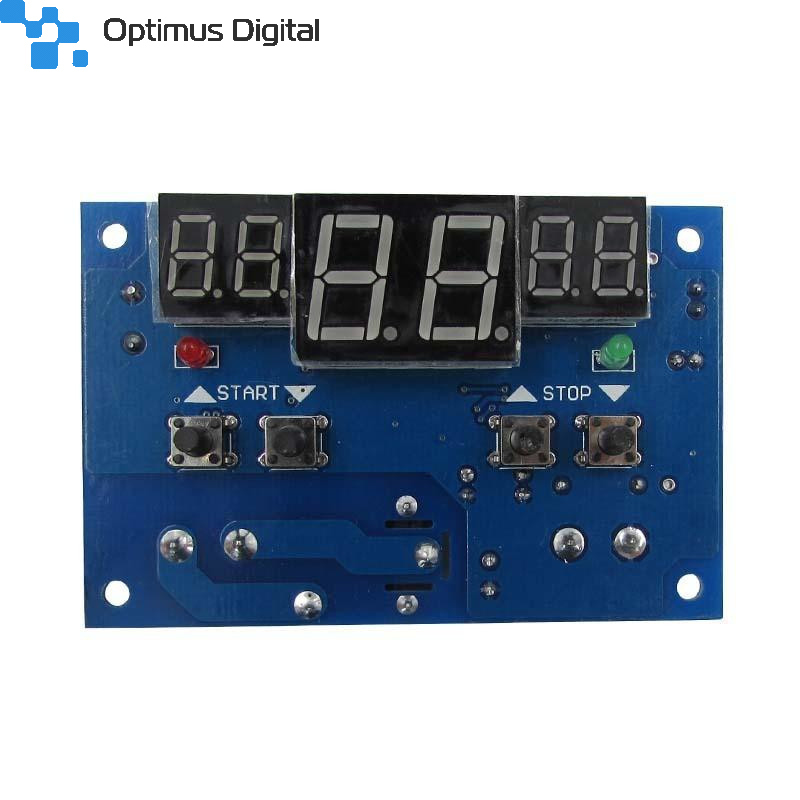

Digital Tubes

• the digital tube in the middle displays the real-time temperature

• the left digital tube displays the start temperature

• the right digital tube displays the stop temperature.

You can set both temperatures, using the UP/DOWN keys below each display.
