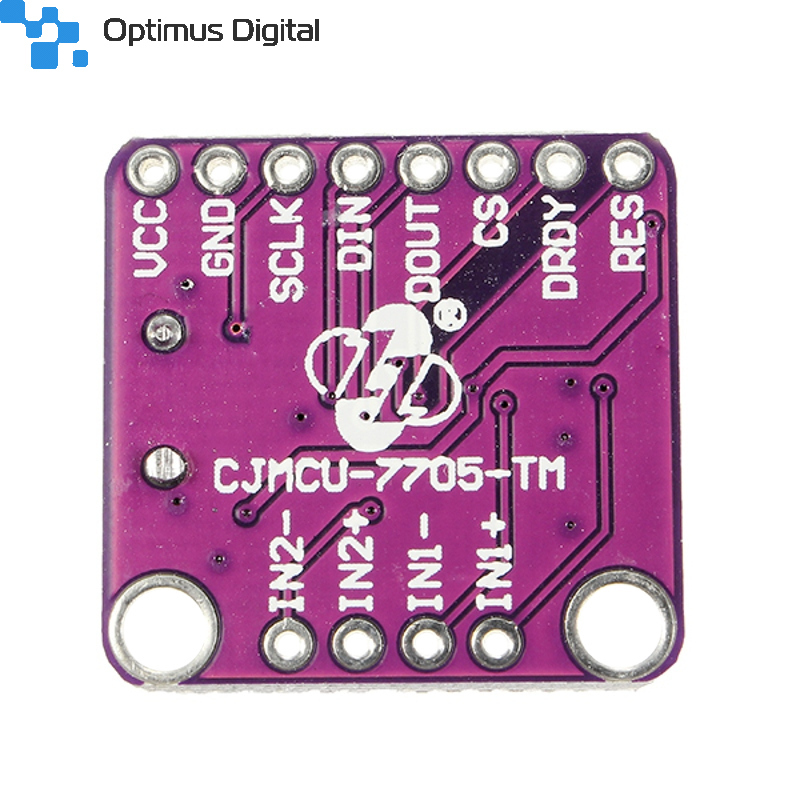

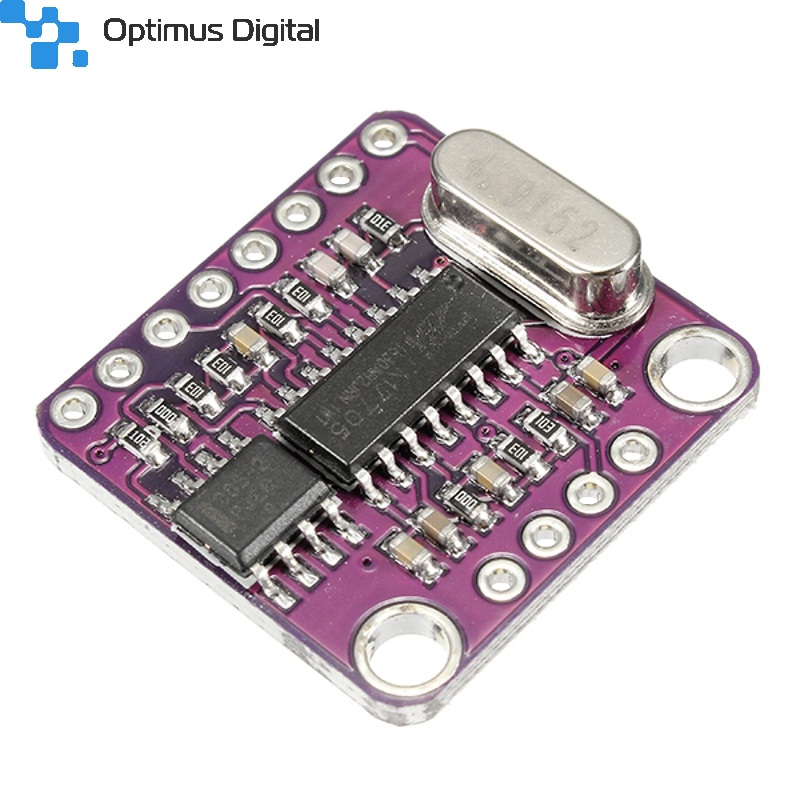

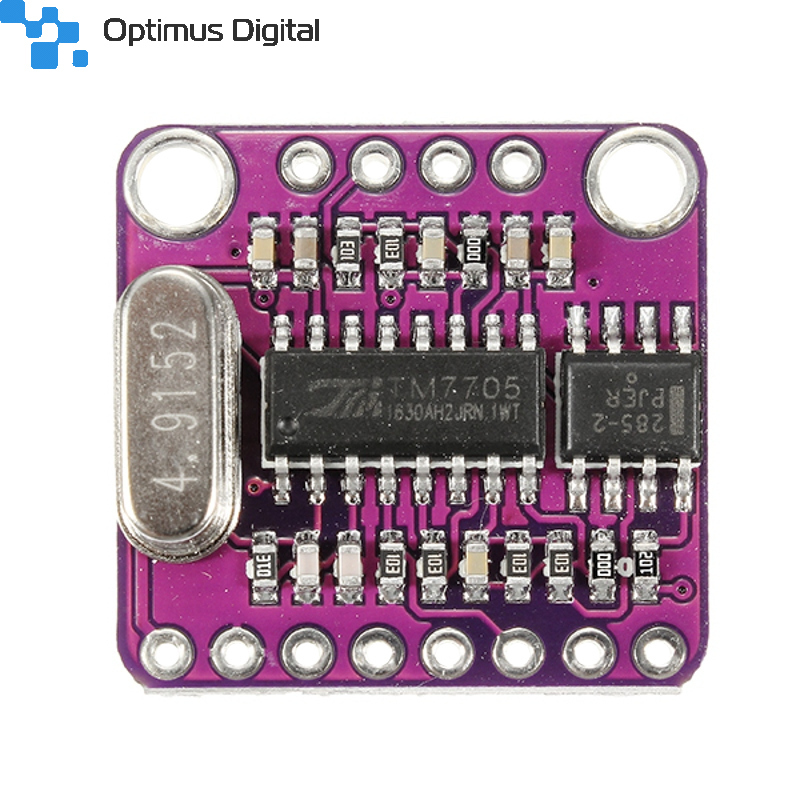

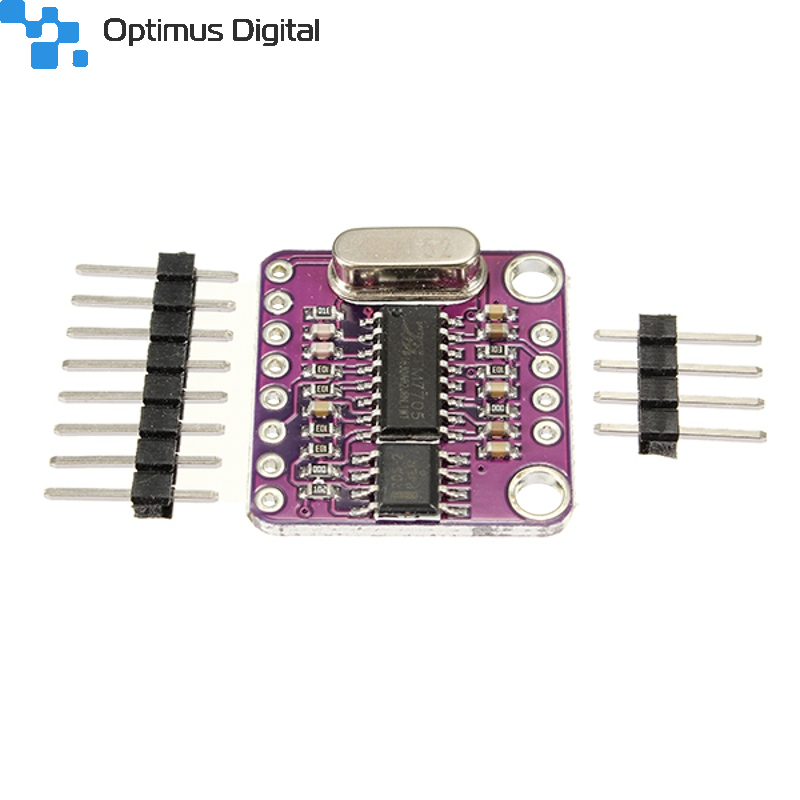

TM7705 Dual 16 Bit ADC Module with PGA

0104110000034694

New product

This analog-to-digital converter works at low frequencies.You can use it to read data from different analog sensors, have differential inputs and input for reference voltage.


See description for more details about the product.

Add to cart now!

More details

3 Items

Warning: Last items in stock!

$7.20
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

You can use this converter in various projects to accurately take data from analog sensors. The module auto-calibrates and the conversion rate can be configured via the serial interface. It is based on CMOS transistors that provide low power consumption.


Specifications

  • Differential inputs
  • 3-wire serial communication: SPI, QSPI, Microwire, DSP
  • Sampling frequency:
    • (Win x Fclkin) / 64 for win 1-4
    • Fckin / 8, for winning 8-128
  • 16 bit output;
  • Programmable gain 1-128
  • Supply voltages: 2.7V-3V or 4.75V-5.25V
  • Powered at 5V the reference voltage is 2.5V
  • Powered at 3V the reference voltage is 1.225V
  • Input voltage range depending on power supply
    • 0-2.5V powered at 5V
    • 0-1.225V powered at 3V
  • Serial Interaction
  • Consumption 1mW (powered at 3V)
