VNH2SP30 Motor Driver Module

0104110000002990

New product

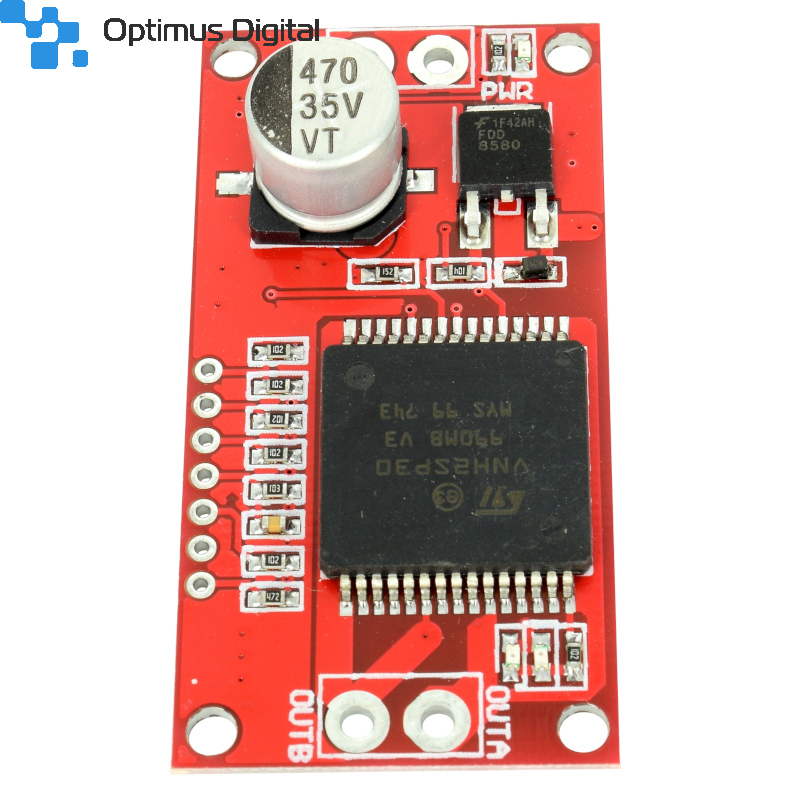

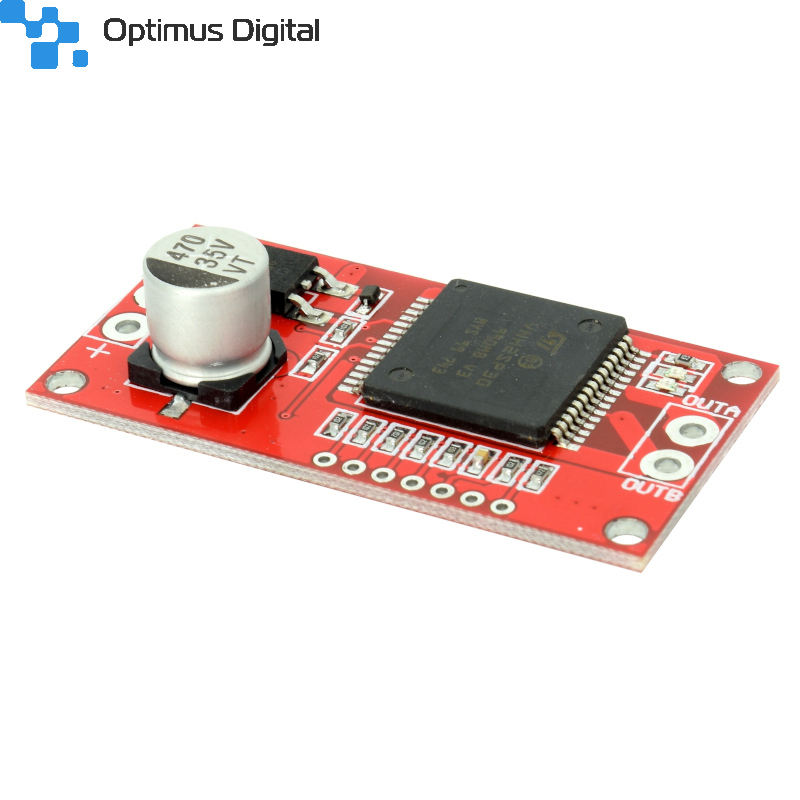

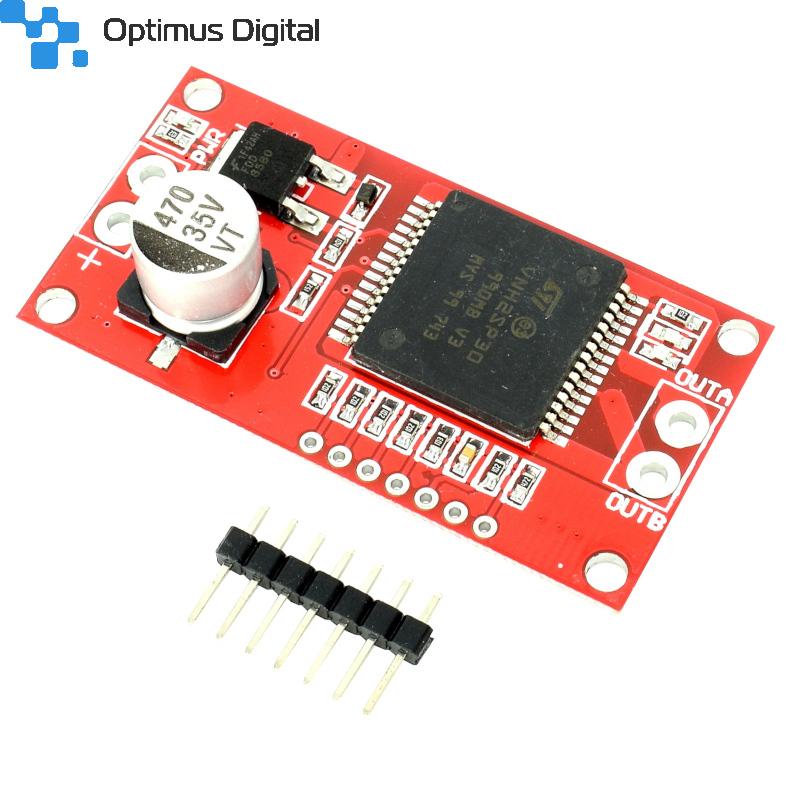

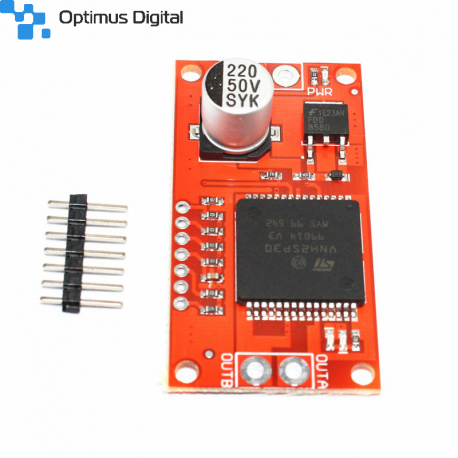

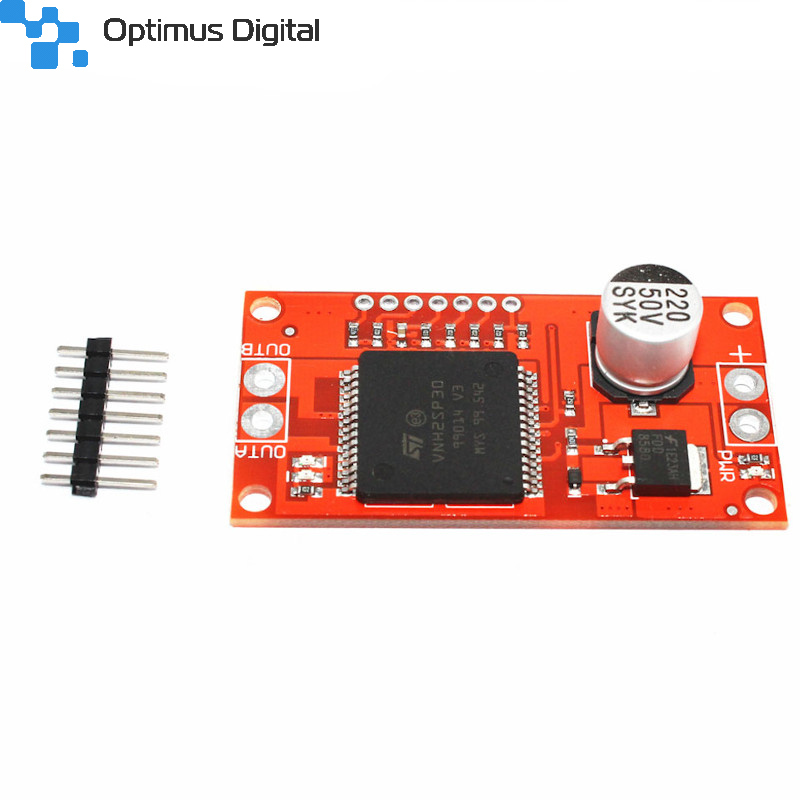

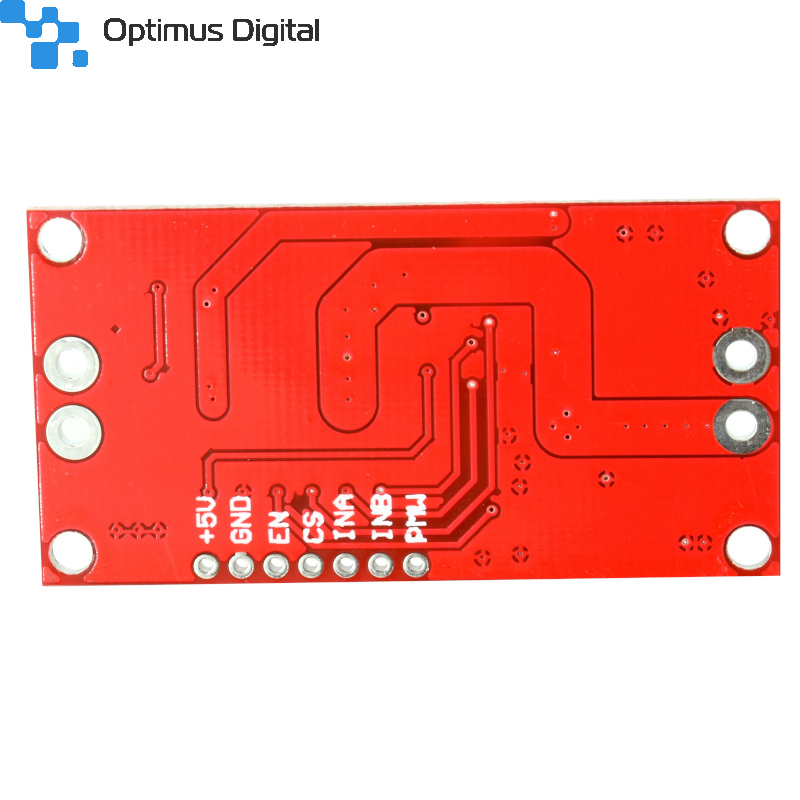

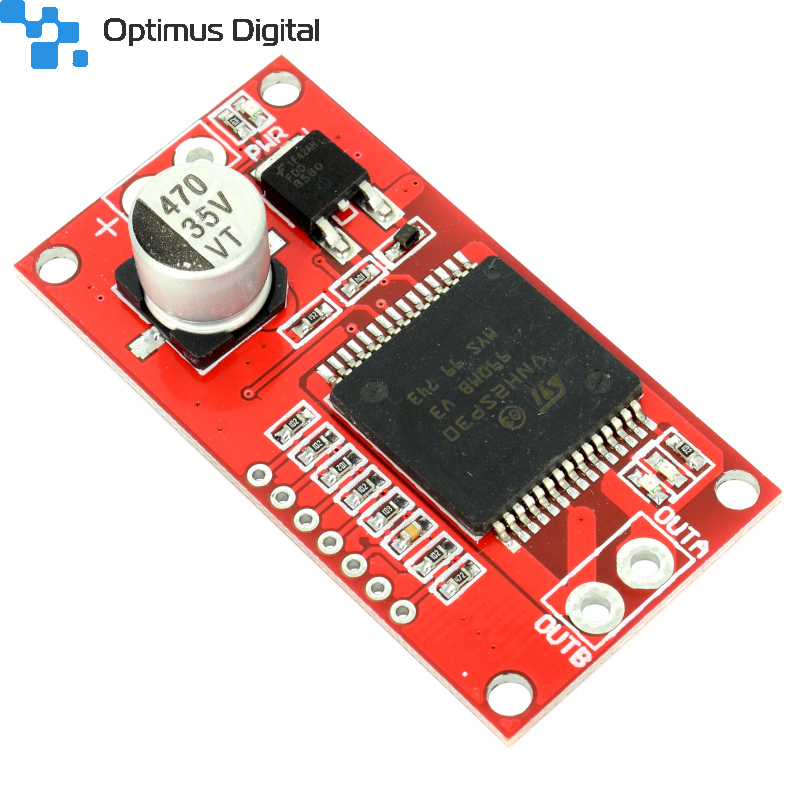

Large power motor driver based on the integrated circuit VNH2SP30. This is a simple one, it can control only one engine.


See description for more details about the product.

Add to cart now!

More details

3 Items

Warning: Last items in stock!

$7.19
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

This is essentially a ramped-up version of our Ardumoto motor driver shield. For this monster shield, we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.


Specifications

• Maximum supply voltage: 16 V

• Minimal alert voltage: 5.5 V

• Maximum current / channel: 14 A

• Maximum current / spike channel: 30 A

• Maximum PWM Frequency: 20 kHz

• Protection against: overtemperature, overvoltage, undervoltage


The driver is ideal for controlling an average power engine.

To use the driver at full capacity, it is recommended to mount a radiator or cooler.


Features

• Voltage max: 16 V

• Maximum current rating: 30 A

• Practical Continuous Current: 14 A

• Current sensing available to Arduino analog pin

• MOSFET on-resistance: 19 mΩ (per leg)

• Maximum PWM frequency: 20 kHz

• Thermal Shutdown

• Undervoltage and Overvoltage shutdown

Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.
