DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control

Description

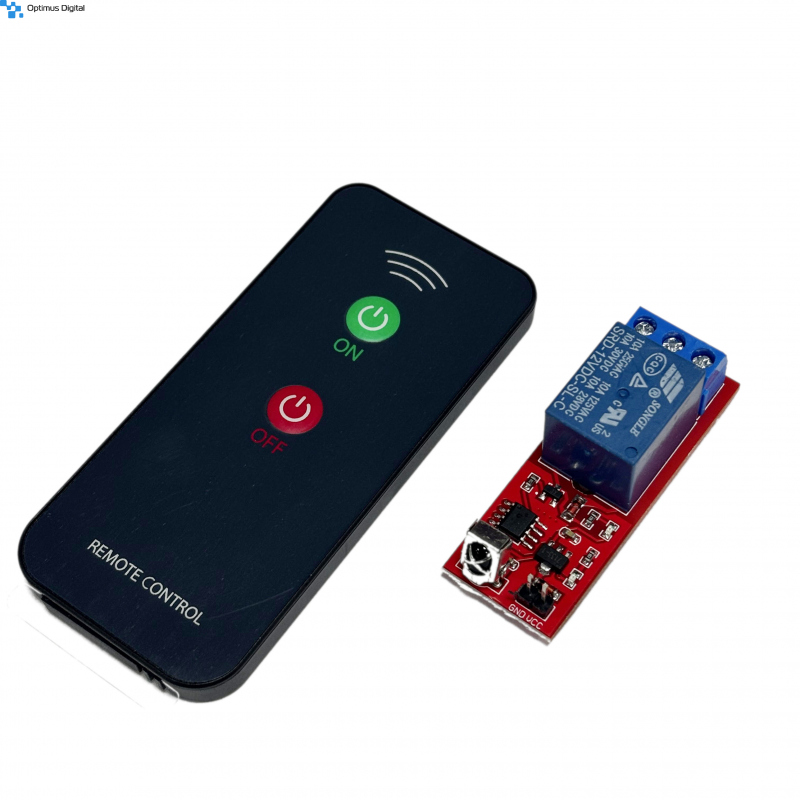

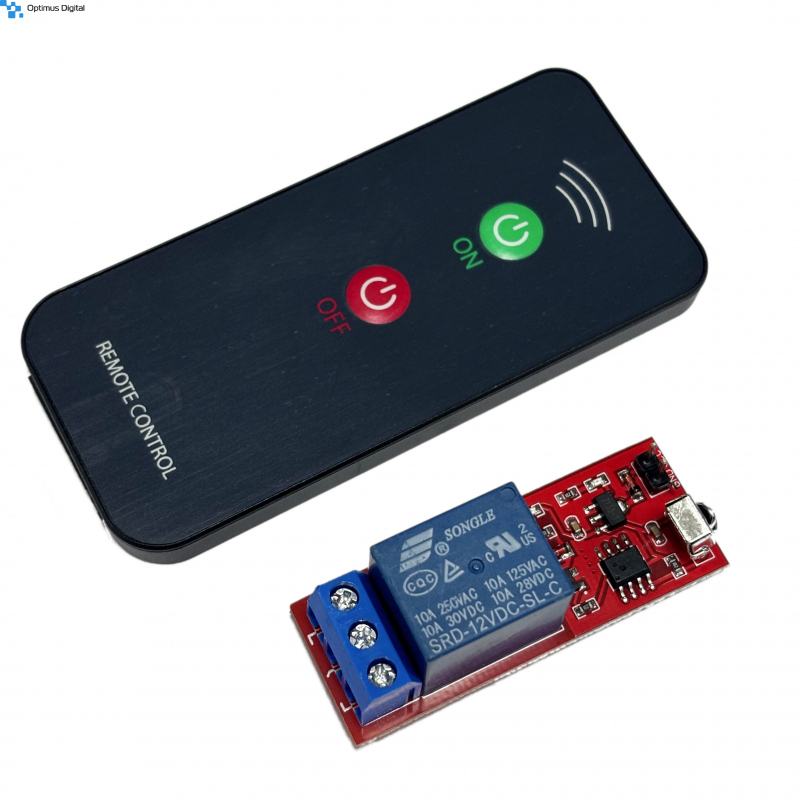

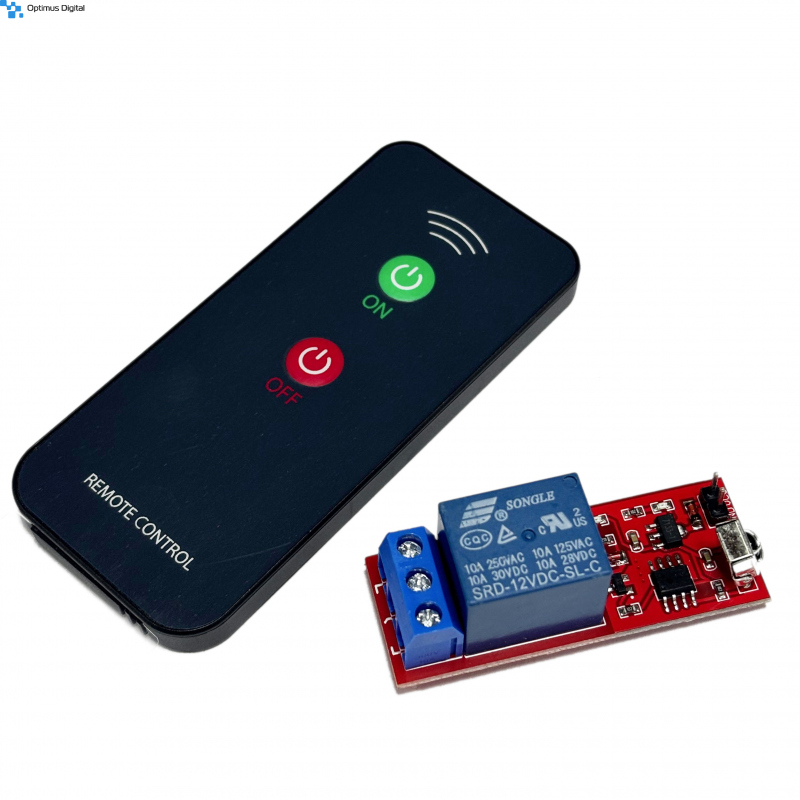

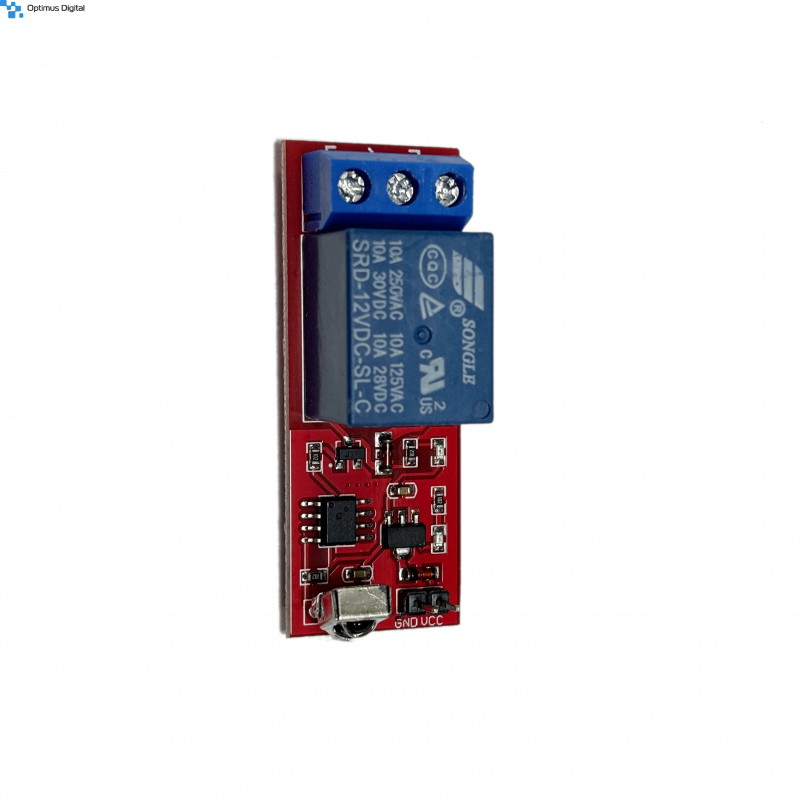

This 12V One Channel IR Wireless Relay Module with Remote Control is a one channel latching relay module. The output of the module is a passive output and it can be controlled by its 2-button IR wireless controller when the module is powered on. The module comes equipped with suitable remote control. It also can drive most household electrical appliances. The operating voltage for this module is 12VDC

Also, the module comes with a dedicated remote. Moreover, the relay used in this module is a high current relay.

There are indicator LEDs on the module for power output status.

The application for this module includes different devices with different current ratings.

Features:

1. Work status: Self-locking
2. Dedicated remote.
3. Indicator LEDs.
4. Ideal for home automation.

Specifications

• Operating Voltage (VDC): 12
• Supply Current (A): 0.07
• Operating Temperature (°C): -40 to 90
• Maximum Supported Output: 10A 28VDC | 7A 240VAC | 10A 125VAC
• Operating Distance Range (Meter): 1 ~ 5
• Storage condition (℃): -40 to 80
• Length (mm): 50
• Width (mm): 20
• Height (mm): 18

Package Includes:

1 x DC 12V 1 Channel Relay Module Infrared IR Remote Switch Control
