0104110000001092
Produs nou

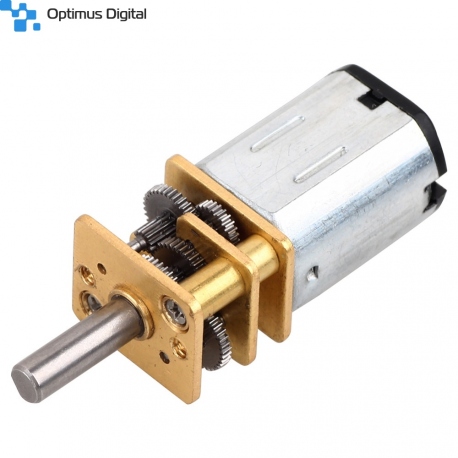

Micro motor ideal for various applications such as small robots.
0 bucata in stoc bucati in stoc
Acest produs nu mai este in stoc
Ultimele bucăți în stoc
Dată reaprovizionare:
This small and easy, but powerful reducer motor can be useful in building robots. Having a great variety in gear ratio, it will be useful in any type of application.
The axis of this engine is 10 mm long.
The parameters related to the current product are highlighted in the table with the parameters of the available engine variants of the same model.
tension |
Empty speed |
Speed under load |
Nominal couple |
Rated current |
Couple in lock |
Locking current |
Reduction ratio |
V | rpm | rpm | kg · cm | me | kg · cm | me | 1:00 |
3 | 750 | 500 | 0.02 | 80 | 0.30 | 100 | 10 |
3 | 250 | two hundred | 0.07 | 80 | 0.56 | 100 | 30 |
3 | 150 | 120 | 0.10 | 80 | 0.80 | 100 | 50 |
3 | 75 | 60 | 0.15 | 80 | 1.20 | 100 | 100 |
3 | 50 | 40 | 0.20 | 60 | 1.60 | 100 | 150 |
3 | 37 | 30 | 0.25 | 60 | 2.00 | 100 | two hundred |
3 | 25 | 20 | 0.50 | 60 | 4.00 | 100 | 298 |
3 | 19 | 13 | 0.50 | 60 | 4.00 | 100 | 380 |
6 | 1500 | 1000 | 0.05 | 160 | 0.30 | 100 | 10 |
6 | 500 | 400 | 0.15 | 160 | 1.20 | 100 | 30 |
6 | 300 | 240 | 0.20 | 160 | 1.60 | 100 | 50 |
6 | 150 | 120 | 0.30 | 160 | 2.40 | two hundred | 100 |
6 | 100 | 80 | 0.40 | 160 | 3.20 | two hundred | 150 |
6 | 74 | 70 | 0.60 | 120 | 3.20 | 200 | 200 |
6 | 50 | 40 | 1.50 | 120 | 10.00 | 200 | 298 |
6 | 39 | 40 | 1.50 | 120 | 10.00 | 300 | 380 |
12 | 3000 | 2000 | 0.08 | 200 | 0.80 | 300 | 10 |
12 | 1000 | 800 | 0.30 | 200 | 2.40 | 300 | 30 |
12 | 600 | 480 | 0.40 | 200 | 3.20 | 300 | 50 |
12 | 300 | 240 | 0.60 | 200 | 4.00 | 300 | 100 |
12 | 200 | 160 | 1.00 | 200 | 7.00 | 300 | 150 |
12 | 148 | 118 | 1.50 | 150 | 9.00 | 300 | 200 |
12 | 100 | 80 | 2.00 | 150 | 16.00 | 300 | 298 |
12 | 78 | 80 | 2.00 | 150 | 16.00 | 300 | 380 |
