New product
• Good Torque Good Speed
• 0.35 deg. Step Angle
• NEMA 17 bipolar 4-wire
• Planetary Gearbox Ratio 5.18:1
• Rated current 1.68A & resistance 1.65ohms
See description for more details about the product.
Add to cart now!
54 Item Items
Warning: Last items in stock!
Availability date:

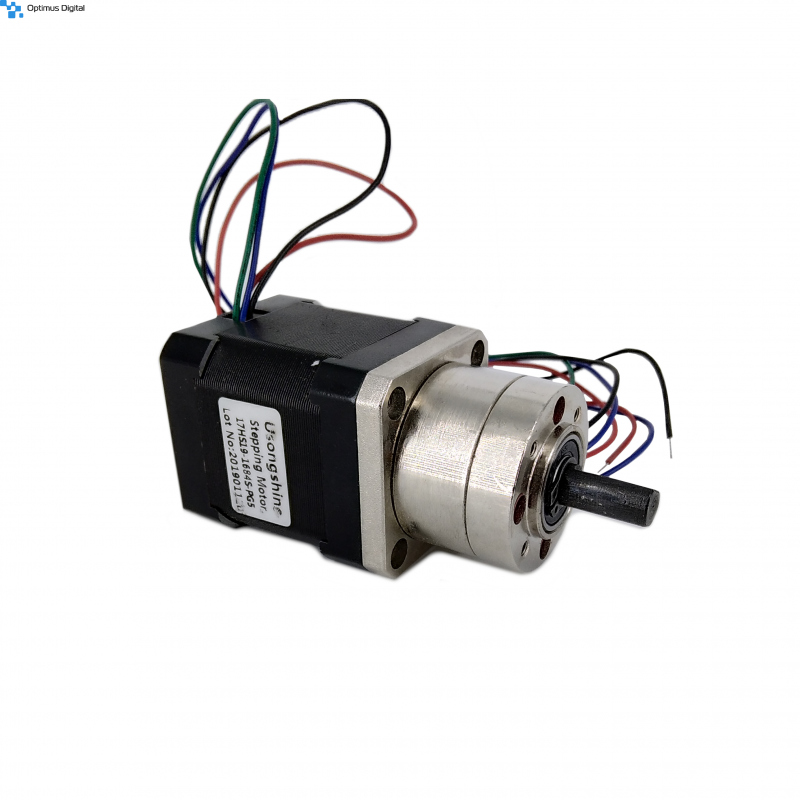

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
17HS19-1684S-PG5
Motor Type: Bipolar Stepper
Step Angle: 0.35 deg
Holding Torque without Gearbox: 52Ncm(73.6oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Voltage: 2.8V
Inductance: 2.8mH ± 20%(1KHz)
Gearbox Type: Planetary
Gear Ratio: 5.18: 1
Efficiency: 90%
Backlash at No-load: <=1 deg
Max.Permissible Torque: 2Nm(283oz.in)
Moment Permissible Torque: 4Nm(566oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N
Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length: 27.3mm
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 520g
A+ | A- | B+ | B- |
---|---|---|---|
Black | Green | Red | Blue |
