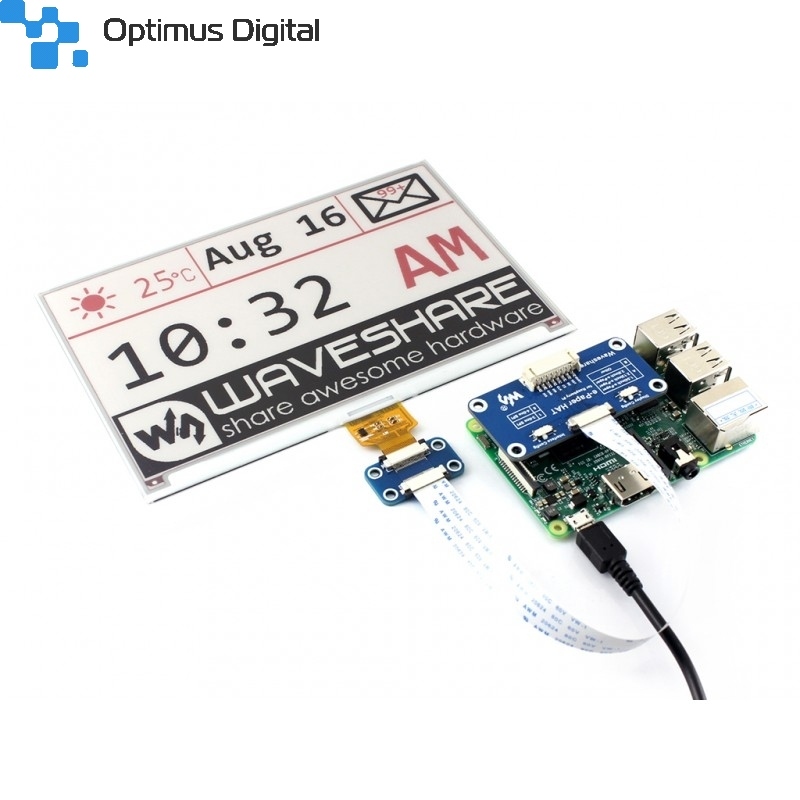

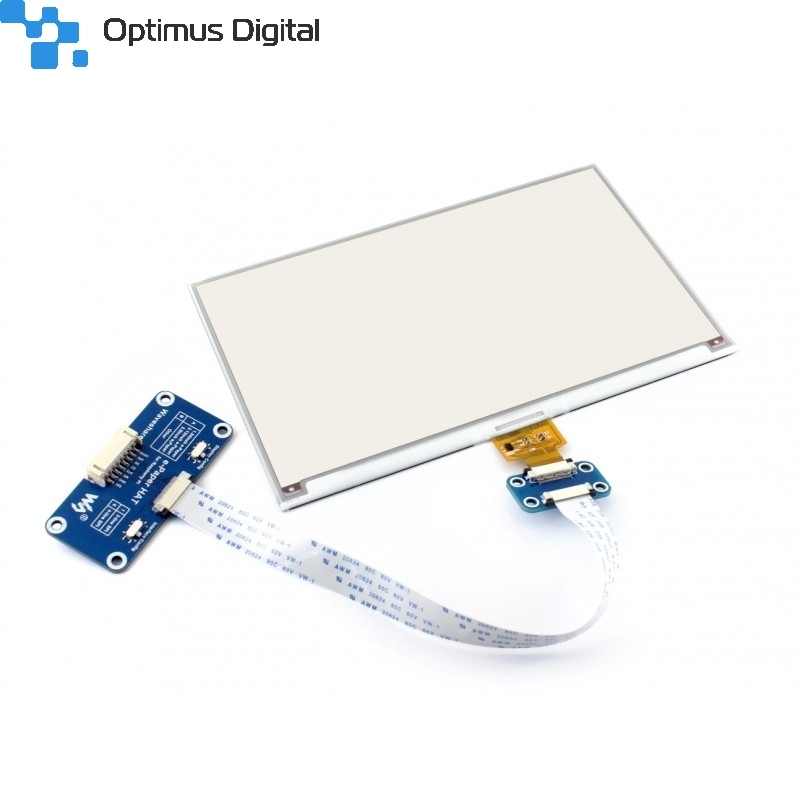

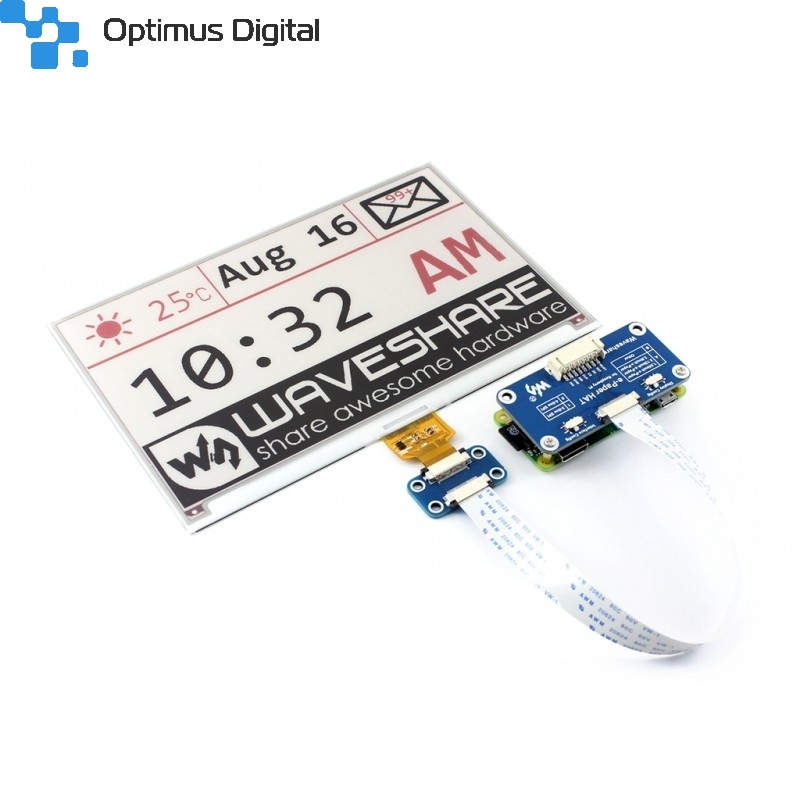

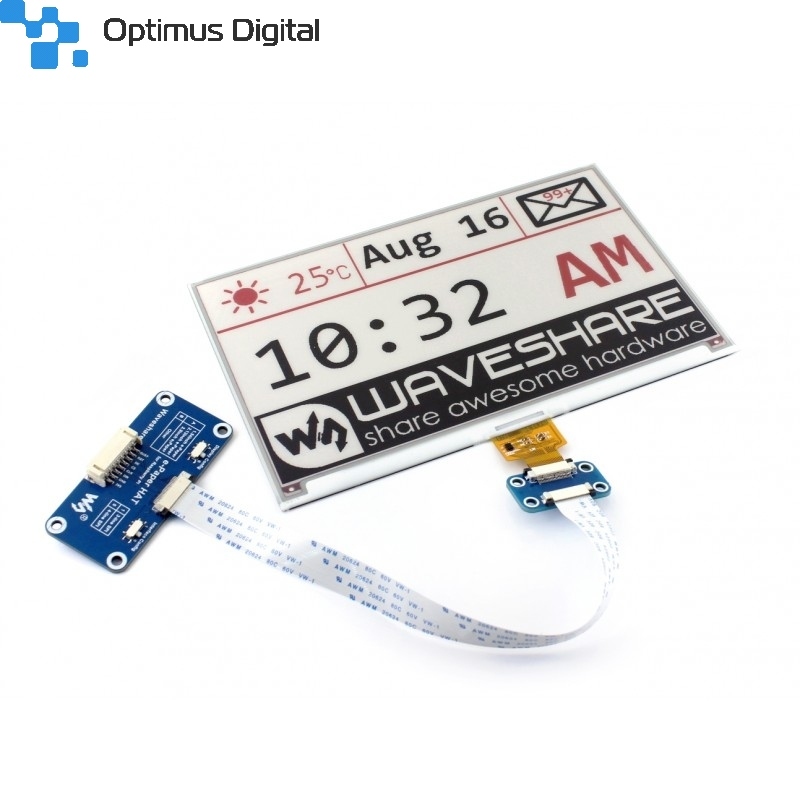

640x384, 7.5inch E-Ink Display HAT for Raspberry Pi, Three-Color

Overview

This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with an embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages of ultra-low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight keeps displaying last content for a long time even when the power down
• Ultra low power consumption, basically power is only required for refreshing
• Compatible with Raspberry Pi 2B/3B/Zero/Zero W
• SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Operating voltage: 3.3V
• Interface: SPI
• Outline dimension: 170.2mm x 111.2mm
• Display size: 163.2mm x 97.92mm
• Dot pitch: 0.255 x 0.255
• Resolution: 640 x 384
• Display color: red, black, white
• Grey level: 2
• Full refresh time: 31s
• Refresh power: 38mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Interface

Dimensions
