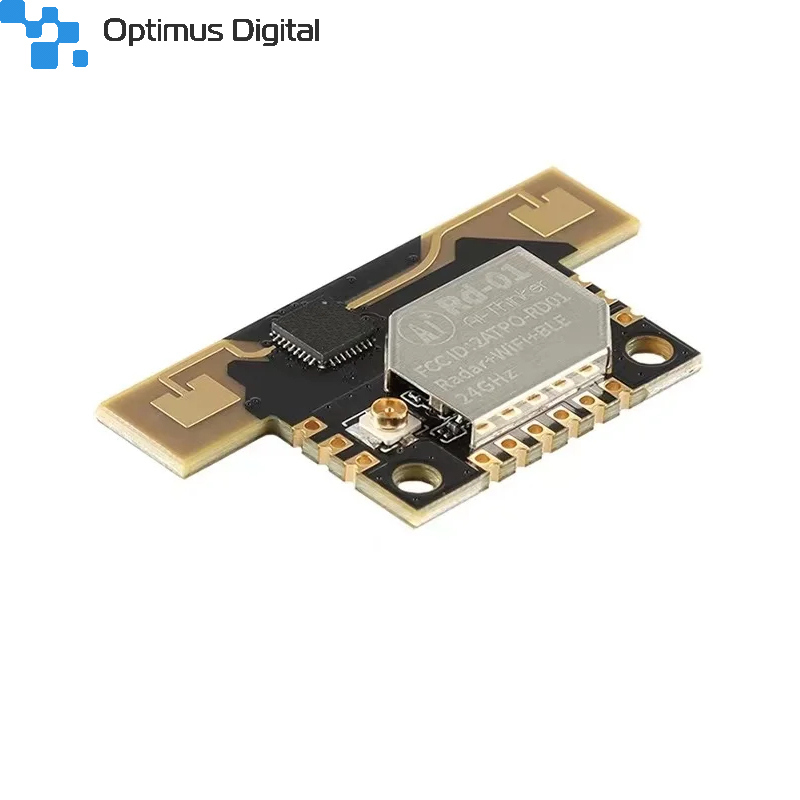

Rd-01 Radar Module

Specifications:

• SMD-12 package, compatible with standard socket or pin interface
• Radar support 24 GHZ ISM frequency band
• The radar's max sensing range is up to 5 meters
• Radar Angle is big, range of ±60 degrees
• Radar range and accurate recognition, support induction range, shielding range outside interference
• It can realize the intelligent parameter adjustment of radar through Bluetooth, convenient and fast
• Support roof, hang a wall to install a variety of ways
• Supports IEEE 802.11 b/g/n agreement
• Wi-Fi security support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
• Support 20 MHZ bandwidth, the highest rate of 72.2 Mbps
• Bluetooth low energy 5.0, Bluetooth Mesh
• Support Station + BLE model、Station + SoftAP + BLE model
• Support 32-bit RISC CPU, 276KB RAM
• Secure startup, supports the use of ECC - 256 signature image

Typical application scenario：
Human body induction lamp control
Advertising screen devices such as the human body induction
Life safety protection
Smart Application
Intelligent security
