Bară de Senzori Infraroșu Reflectivi Zumo Mărește

Imaginile sunt utilizate exclusiv cu titlu de prezentare. Fotografiile nu creează obligații contractuale.

Bară de Senzori Infraroșu Reflectivi Zumo

0104110000010261

Produs nou

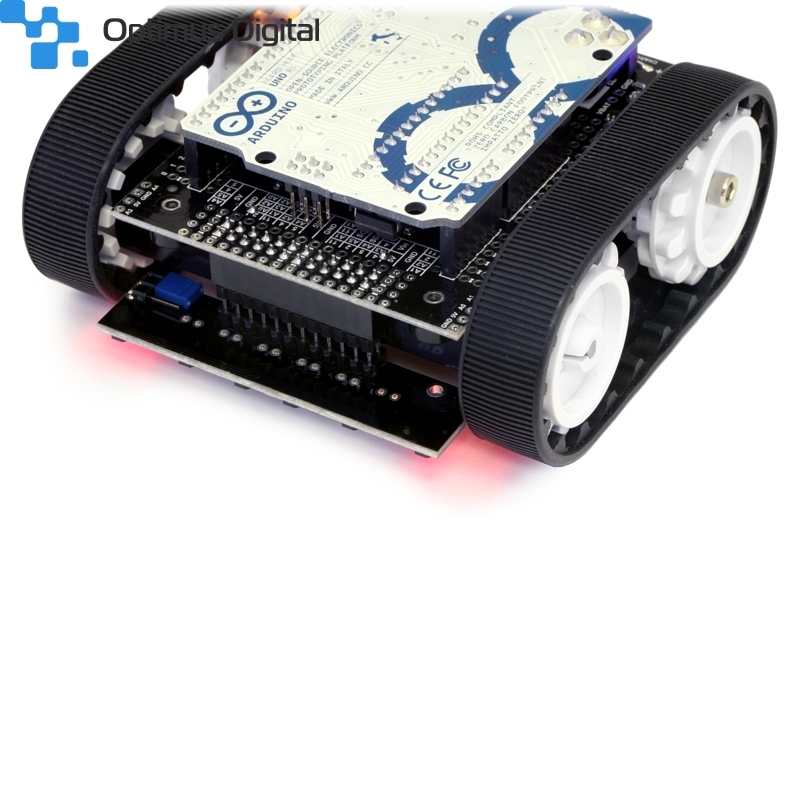

Infrared Sensor Bar Zumo Reflectors Useful for the Sumo robot of the same name.

More details

1 bucata in stoc

Ultimele bucăți în stoc

$23.04
cu toate taxele incluse

Valabil în limita stocului disponibil

Prețul include costurile colectării, tratării și eliminării DEEE și DBAT

Informații

Technical specifications:

  • Power supply LEDs: 7.45V (for Zumo robot);
  • Supply voltage to phototransistors: 5V;
  • Maximum current consumption: 40mA;
  • Maximum Sampling Frequency: 1kHz.

The steps for reading the sensor:

  1. Turn on the IR LEDs (optional);
  2. Select the pin as output and put it on HIGH;
  3. Wait a few microseconds to reach the capacitor at 5V;
  4. Select pin as input, with pull-up disabled;
  5. Measure the time until the pin detects 0 logically;
  6. Close the IR LEDs (optional).

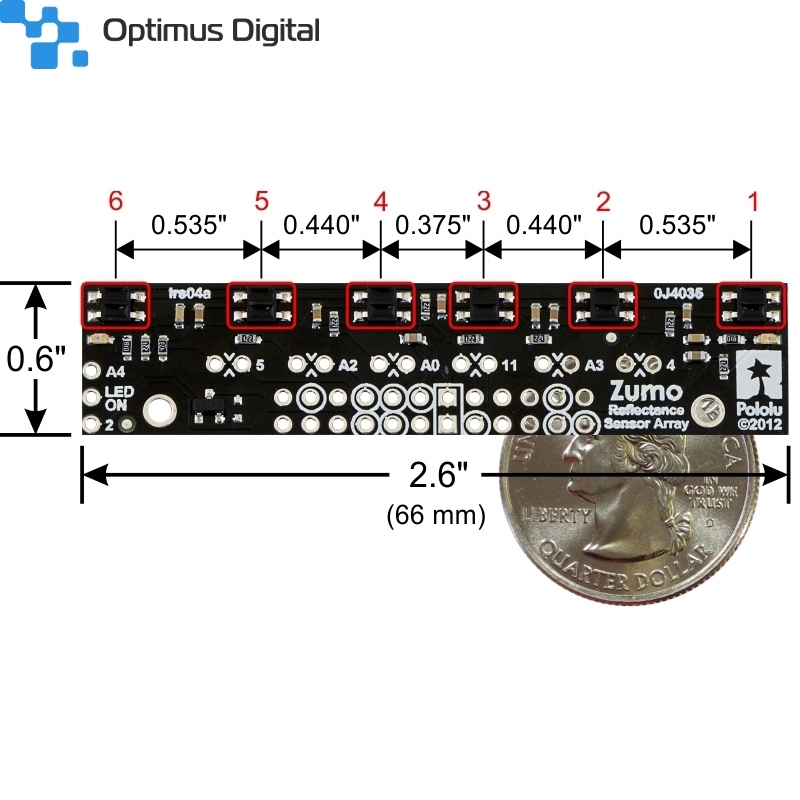

Dimensions:  2.6 "x 0.6".

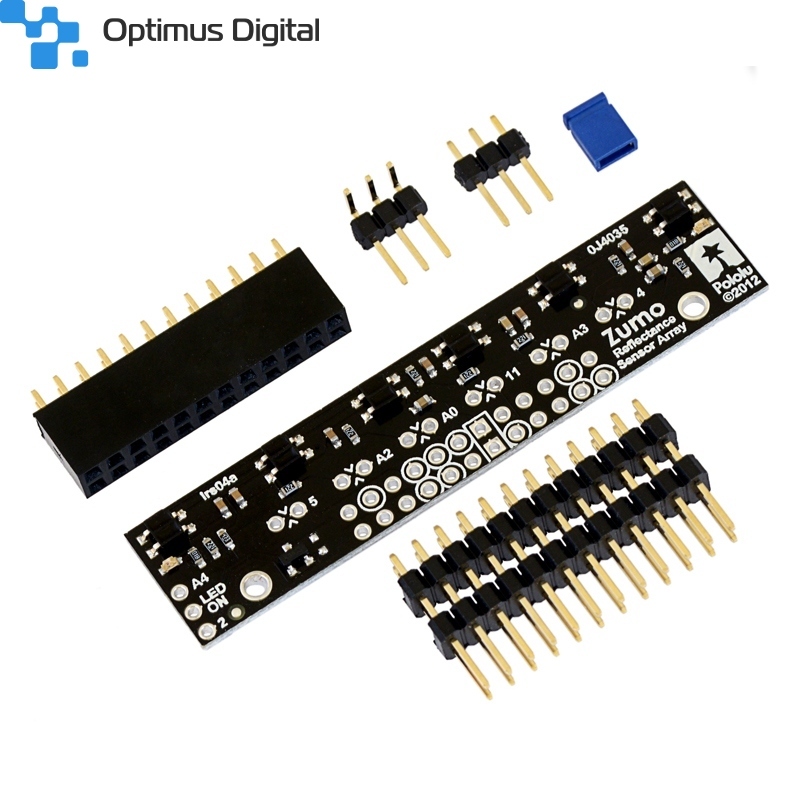

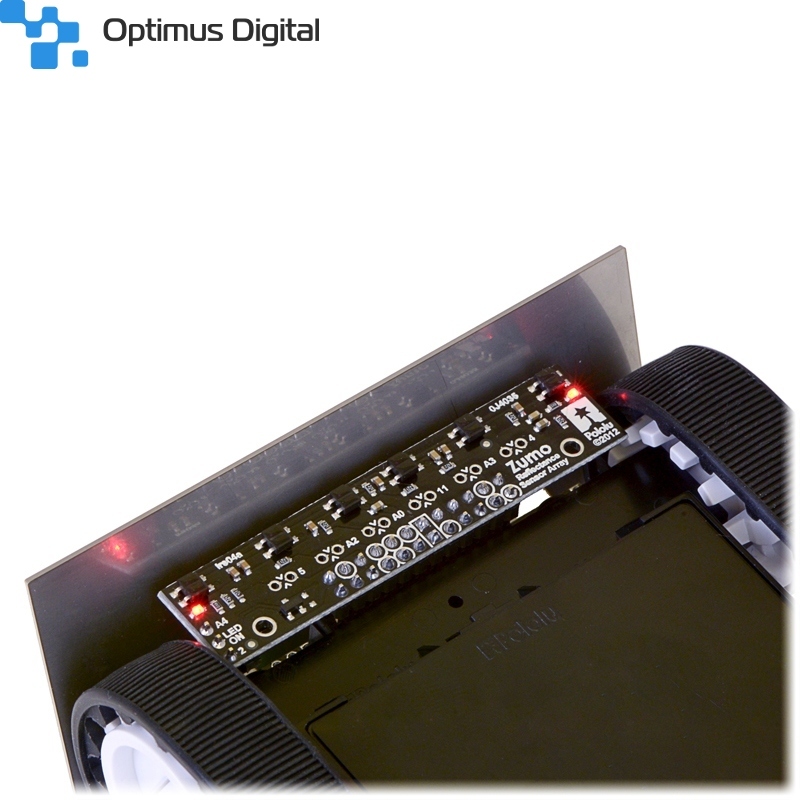

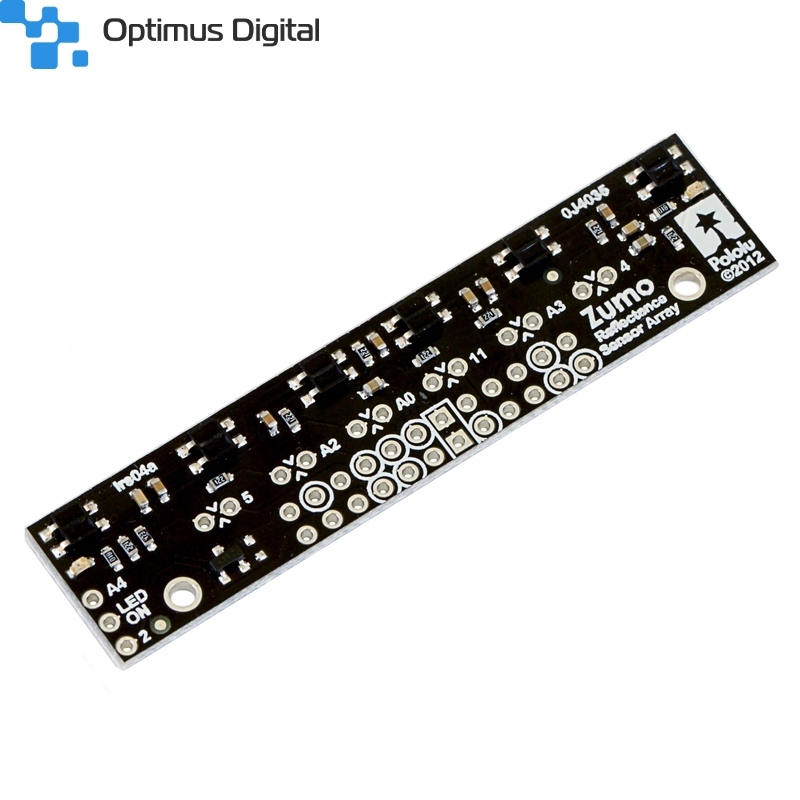

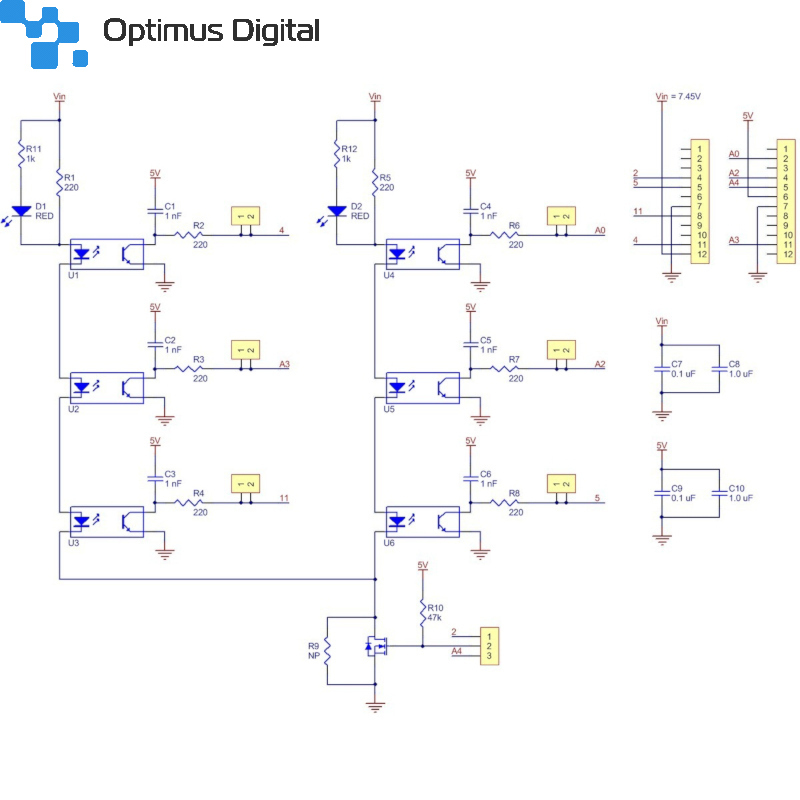

The product is an array of 6 IR reflective sensors designed specifically for the Pololu ZUMO robot. The mode of operation is the same as the QTR-8RC sensor module, based on the discharge time measurement for a small capacitor with a capacity of 1nF. These sensors are more powerful than analog ones because they can help you to figure out exactly where the line is.

The sensors are designed to detect the color of the surface beneath them, differentiating black and white.

See the manufacturer's page for more details  .
