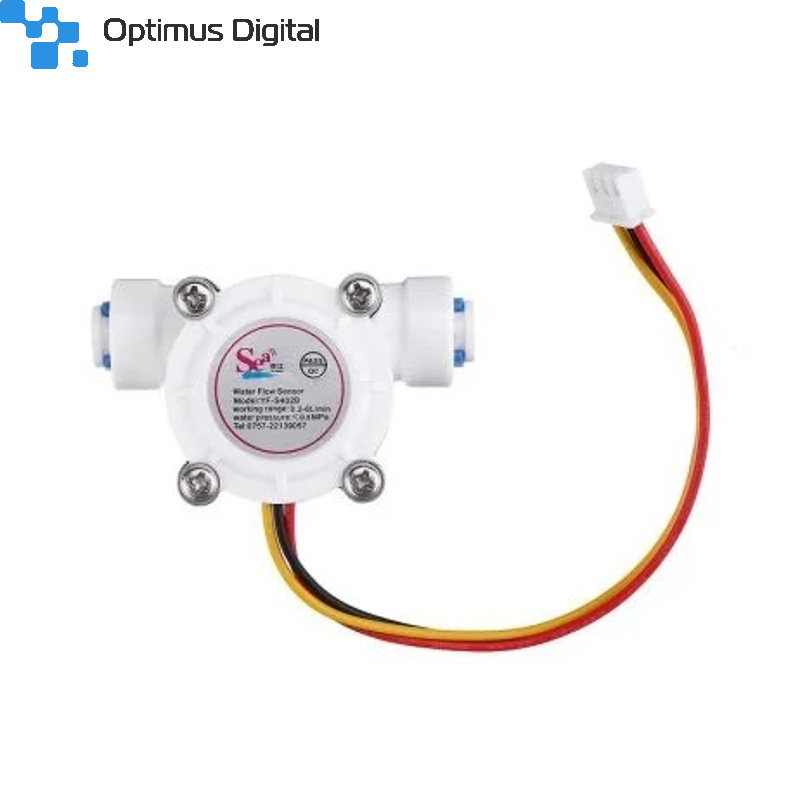

Water Flow Sensor YF-S402B 5-24V Flowmeter 0.3-6L/Min

Description

This is a Water Flow Sensor YF-S402B 5-24V Flowmeter 0.3-6L/Min. The 1/4 inch water flow sensor is basically a small turbine whose output signal is a series of digital pulses. The frequency of the pulses is proportional to the flow rate of the liquid passing through the sensor. That digital signal, whose frequency is in the range between 0Hz and 100Hz, can be read directly through one of the digital input/output pins of a microcontroller.

Applications:

Suitable for water heater, POS terminal, Automatic water dispenser, Water Purifier, etc.

Features:

1. Lightweight, Small, Easy to install
2. With stainless steel axis in the wheel, abrasion-resistant
3. Sealing ring design to prevent water leaks
4. Compliant with RoHS standard
5. Wide range of applications

Specifications

• Model: YF-S402B
• Working Voltage: 5~24V
• Working Current(mA): 15mA
• Load capability: <= 10mA
• Input/Output Diameter: 6.5mm
• Water pressure: ≤0.8MPa
• Storage Temperature(°C): -25 ~ 80°C
• Storage Humidity: 25 to 95% RH
• Working Temperature Range (°C): 0 to 80
• Length (mm): 57.5
• Width (mm): 35
• Height (mm): 27
• Weight (gm): 35

Package Includes:

1 x Water Flow Sensor YF-S402B 5-24V Flowmeter 0.3-6L/Min
