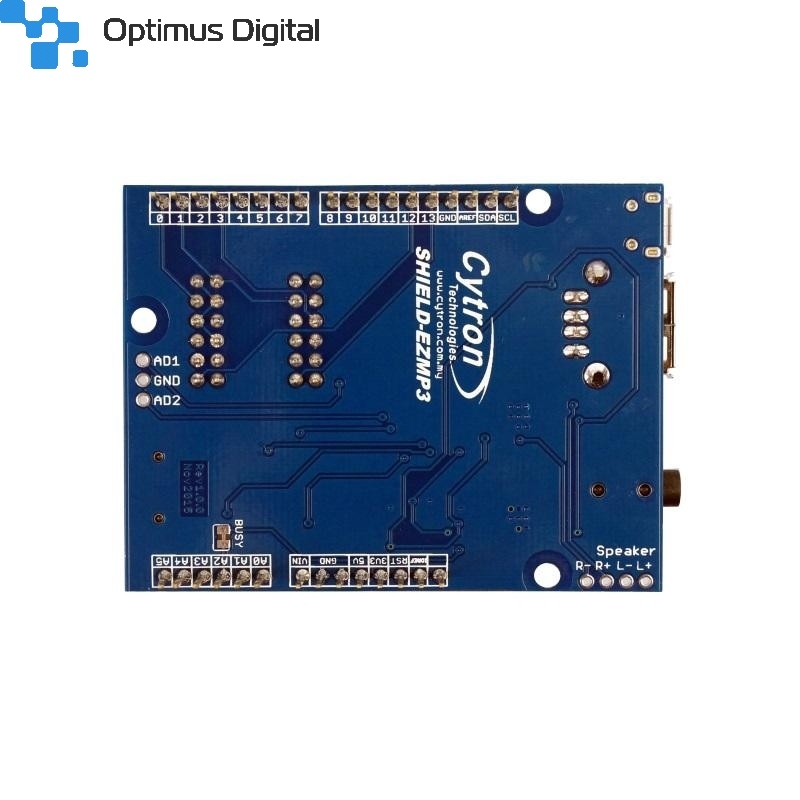

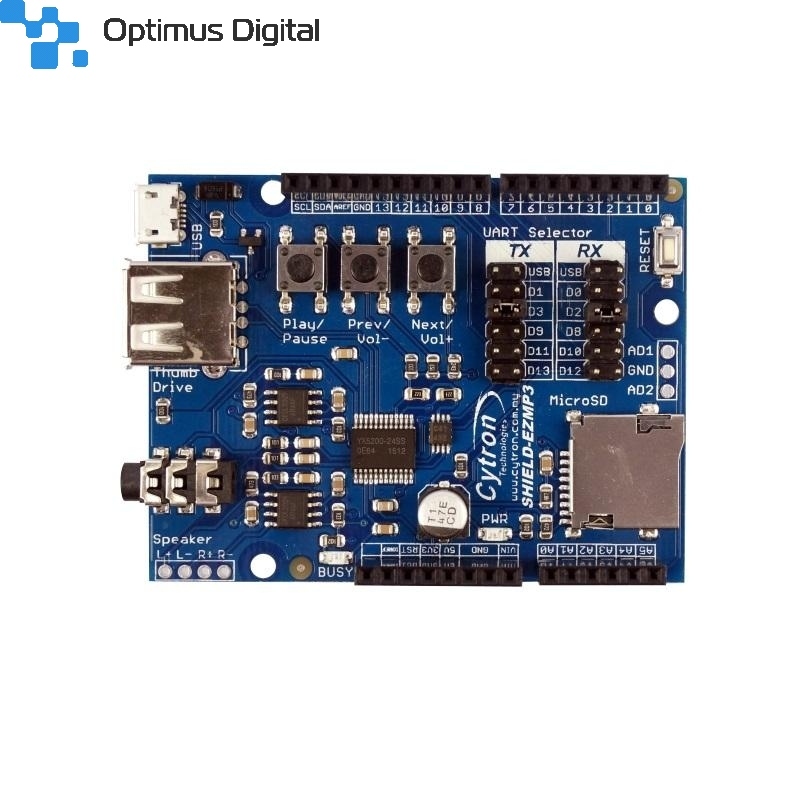

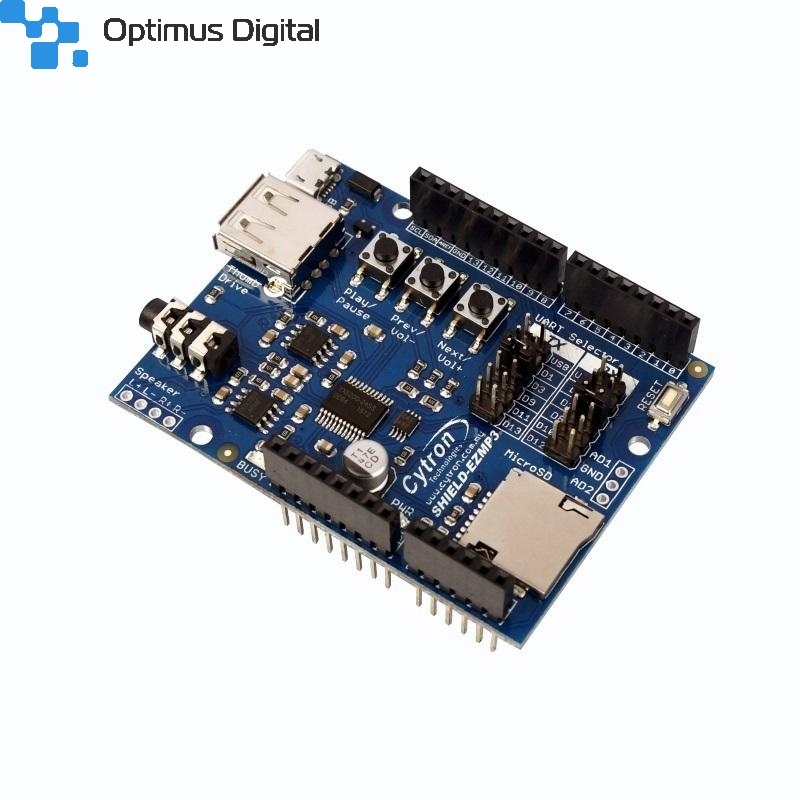

Cytron Easy MP3 Shield

Description

Here is another MP3 shield from Cytron, ezMP3 Shield is an Arduino compatible shield which is compatible with Genuino UNO, CT-UNO, CT-ARM, Genuino Mega and possibly other pin compatible main boards.

Cytron ezMP3 Shield has stackable side headers which allows more Arduino shield to be stacked on top of it. User can stack for example LCD Keypad Shield or Graphic LCD Shield and utilize it as control panel for ezMP3 Shield. It has the on-board mircoSD socket for microSD card with MP3 files. Cytron ezMP3 Shield has also on board 2 channel differential amplifier for direct drive of external loud speakers.

On top of its many features, we like it because the MP3 decoder access the MP3 files directly on the microSD card, free up the Arduino proccessor for other task while MP3 file is being played. Awesome!

This Cytron ezMP3 shield is different with Cytron MP3 shield, so the library is not compatible.

Features

• 5V powered.
• On board high quality MP3 decoder.
• On board dual channel/Stereo 3W differential audio amplifier for external speaker.
• On board stereo 3.5mm audio jack socket for earphones.
• On board microSD socket  for MP3 audio files storage.
• A MicroSD status LED.
• Interface from Arduino, UART, selectable to use soft serial.
• Jumper selectors to select different  Control pins.
• Stackable side headers.
• Dimension : 69mm x 53mm

References and Documents

• User's Manual
• Arduino Library
• Fritzing file
