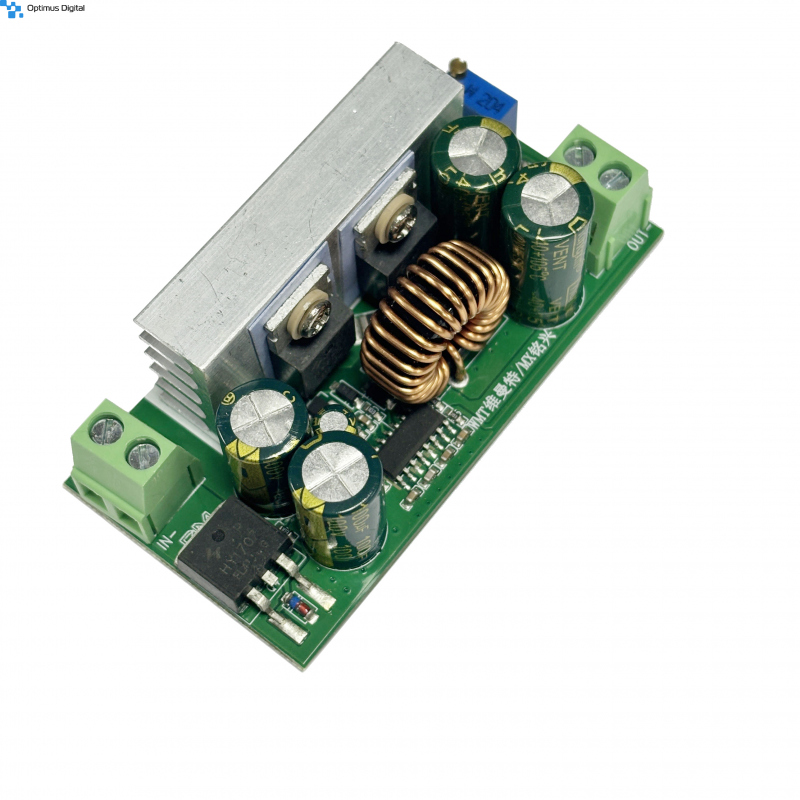

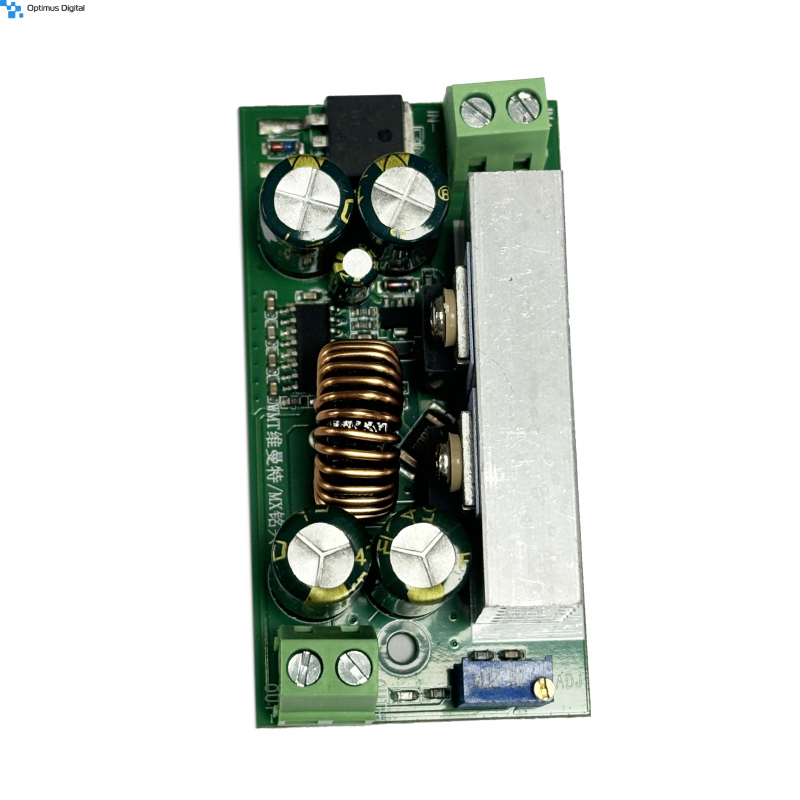

Synchronous Adjustable Step-Down Voltage Regulator (15 A, 60 V)(without case)

Technical specifications

• Input voltage: 8 V - 55 V (max 60 V)
• Output Voltage: 1 V - 36 V
• Maximum output current: 15 A
• Recommended maximum output current: 10 A
• Maximum output power with natural cooling: 100 W
• Maximum output power with forced cooling assurance: 200 W
• Operating temperature: -10 ~ + 85 degrees Celsius
• Operating Frequency: 180 kHz
• Efficiency: up to 94%
• Overtemperature and reverse power protection

Dimensions:  70 * 38 * 31 mm.

The source can also operate with natural cooling for power up to 100 W, but if you want to use the product at maximum capacity, you must ensure forced cooling. Normally, the source can operate at a current of up to 15 A, limited to a maximum power of 200 W.
