PCF8575 Remote 16 Bits I2C IIC SMBus I/O Expander Module

0104110000088222

New product

  1. Type: PCF8575
  2. Operating voltage: 2.5-5.5VDC
  3. Operating current: 100mA (max)
  4. I2C address: 0x20 (default), can be changed by soldering A1 and selection pads A2


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$3.60
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

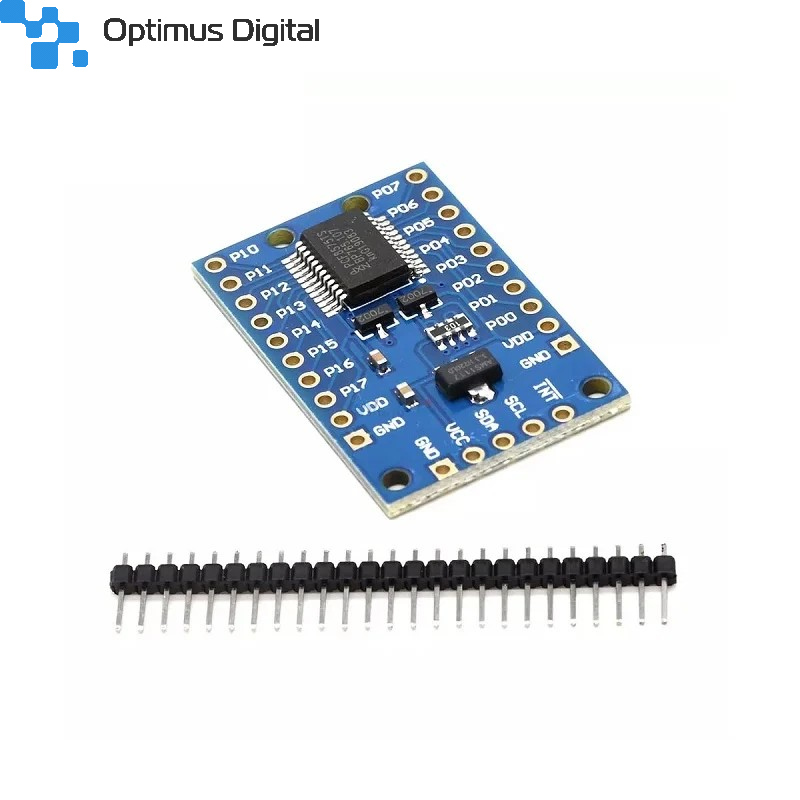

This PCF8575 Remote 16 Bits I2C IIC SMBus I/O Expander Module is a large module allows the user to expand up to 16 i/o with only two i/o for control. The PCF8575 is connected via an I2C interface and features 16-bit near-bi-directional input/output pins.

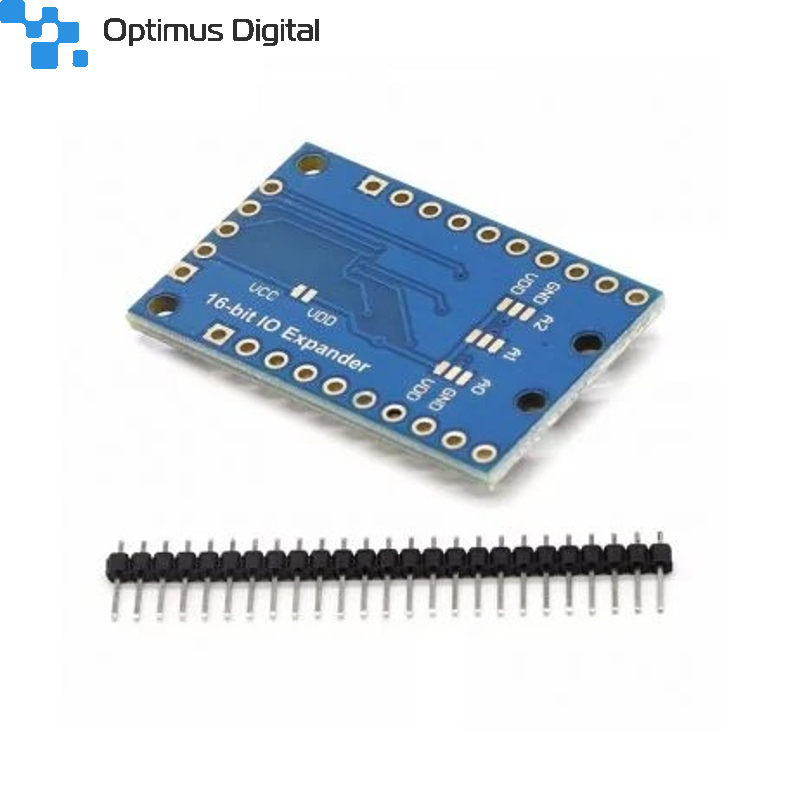

Onboard 3.3V level converter circuit, if you don’t have a solder pad of VCC-VDD, the PCF8575 level is 3.3V. If you solder it, the level will be the same as with VCC


Features:

  1. 16 individually addressable pins
  2. Each pin configurable for input or output.
  3. Open drain interrupts output pin for input change interrupt.
  4. Ideal for R3 and other MCUs to simple relay, buzzer, button, led.


Package Includes:

1 x Expander Module



Don't delay, buy today.
