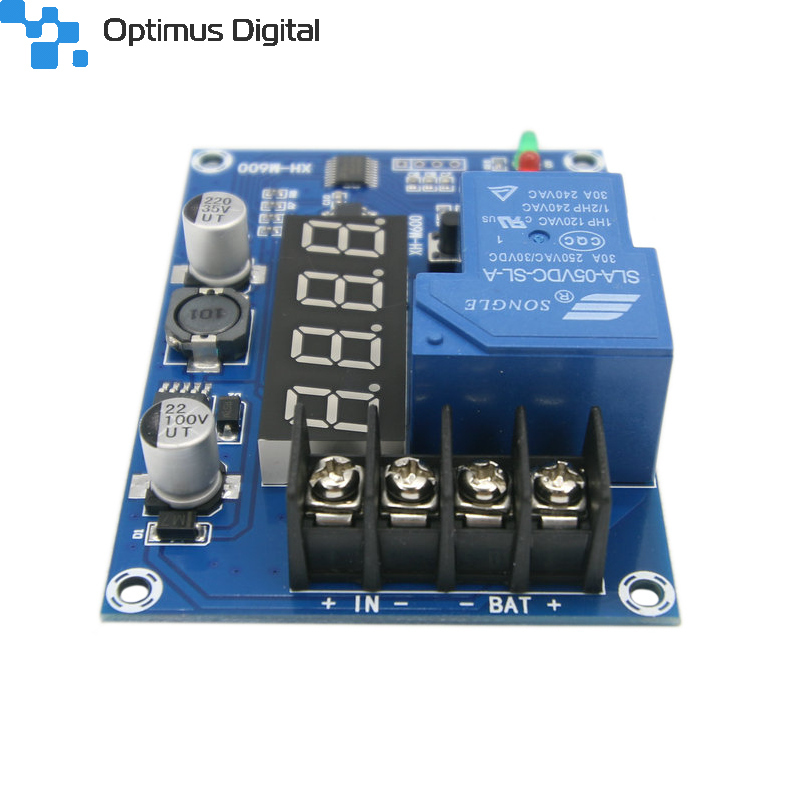

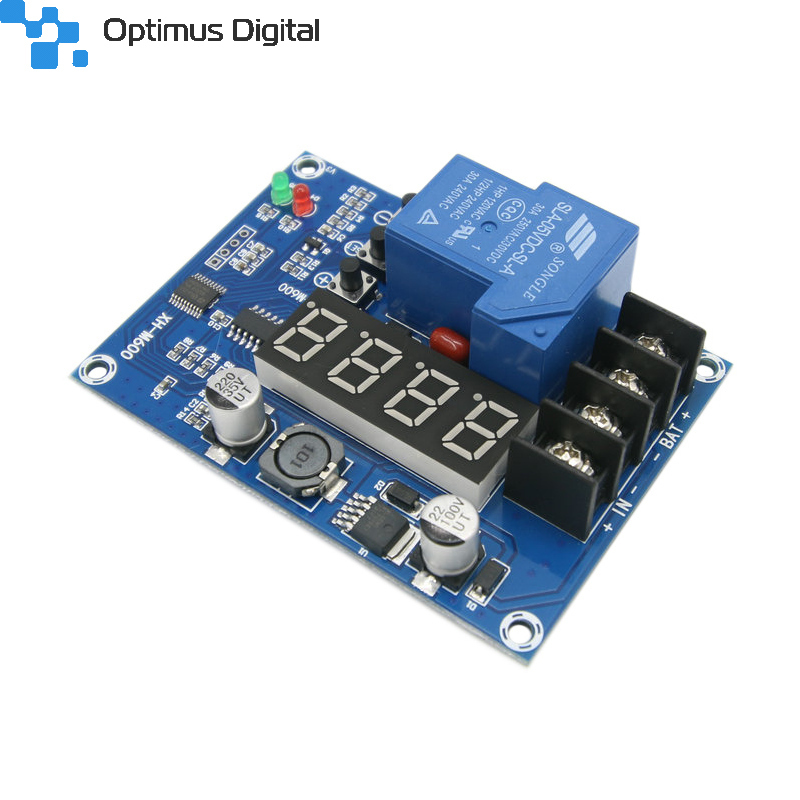

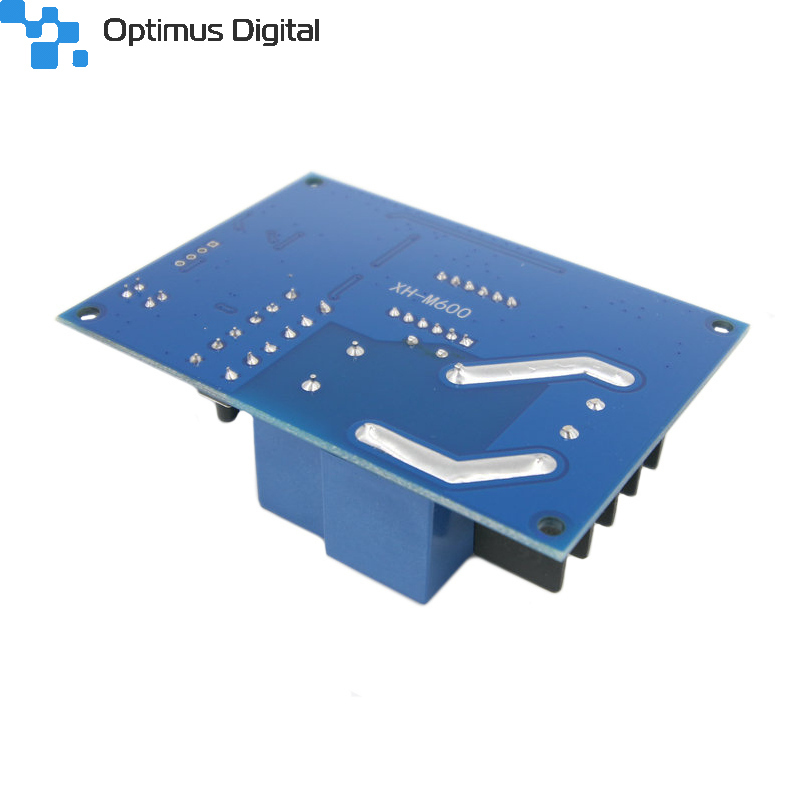

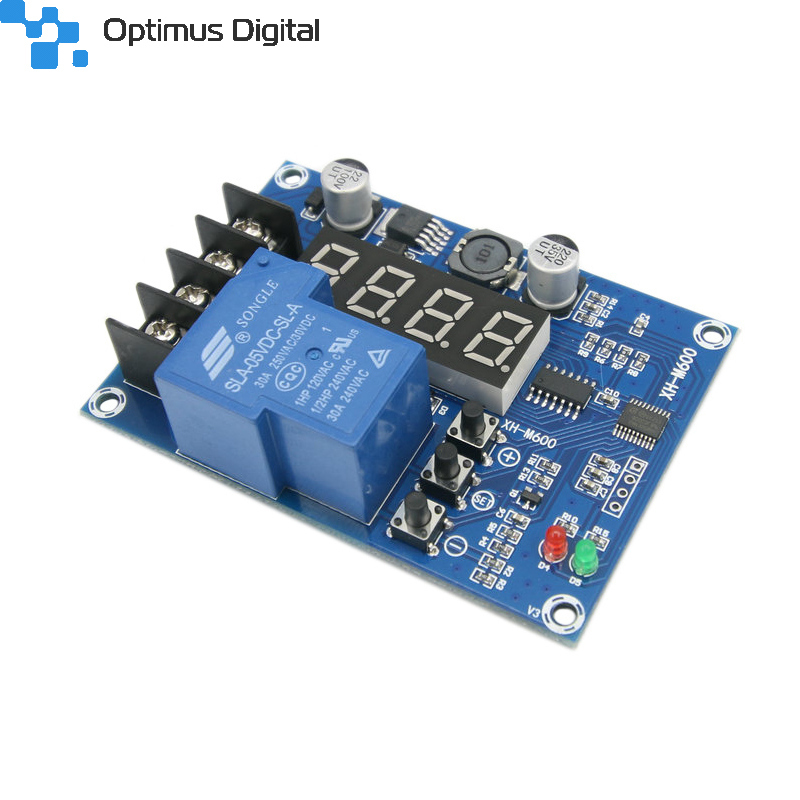

Battery Charge Controller Module with Overcharge Protection Switch (6 - 60 V, 30 A)

Product Specifications:

• Product name: Battery Charge Controller Module with Overcharge Protection Switch (6 - 60 V, 30 A)

• Product model: XH-M600

• Control voltage: DC 6 - 60 V

• Control current: ≤ 30 A

• Control Precision: 0.1 V

• Output Type: direct output

• Voltage error: ±0.1 V

• Application: 6 - 60 V Lithium batteries

• Product size: 84*60 mm

• Color: Blue

• Material: Metal + pc

Directions:

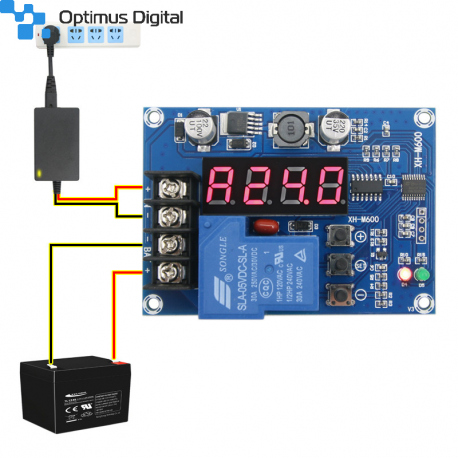

1: Connect the battery (otherwise the motherboard won't have a display).

2: Press the "+" button to display upper limit voltage. A long press will flash, then set the upper limit voltage (H).

3: Press the "-" button display lower limit voltage. A long press will flash, then set the lower limit voltage (L).

4: Connect to the charger.

5: Press close the display to save electricity.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
