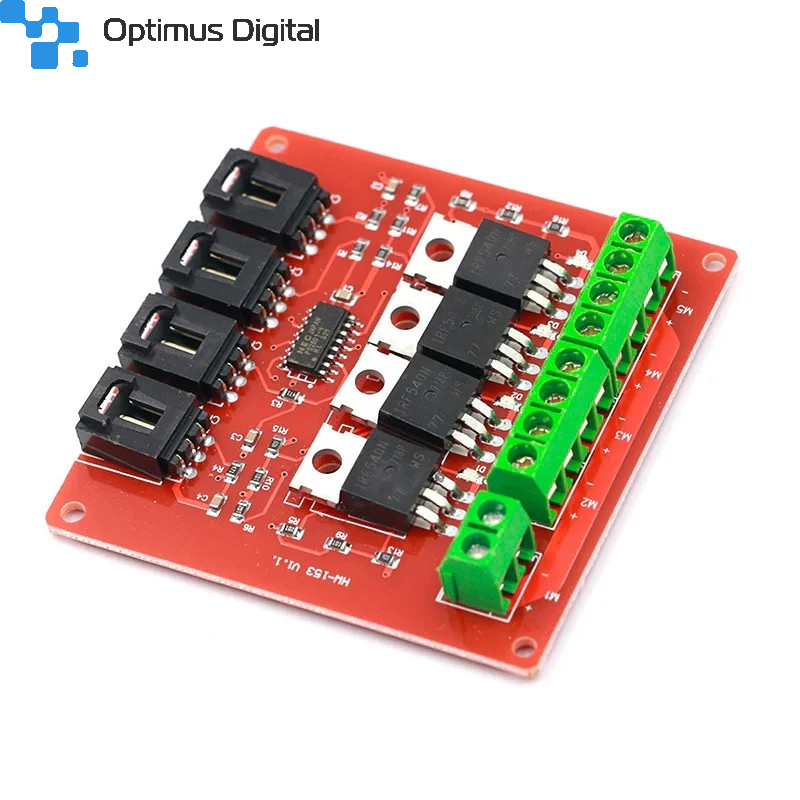

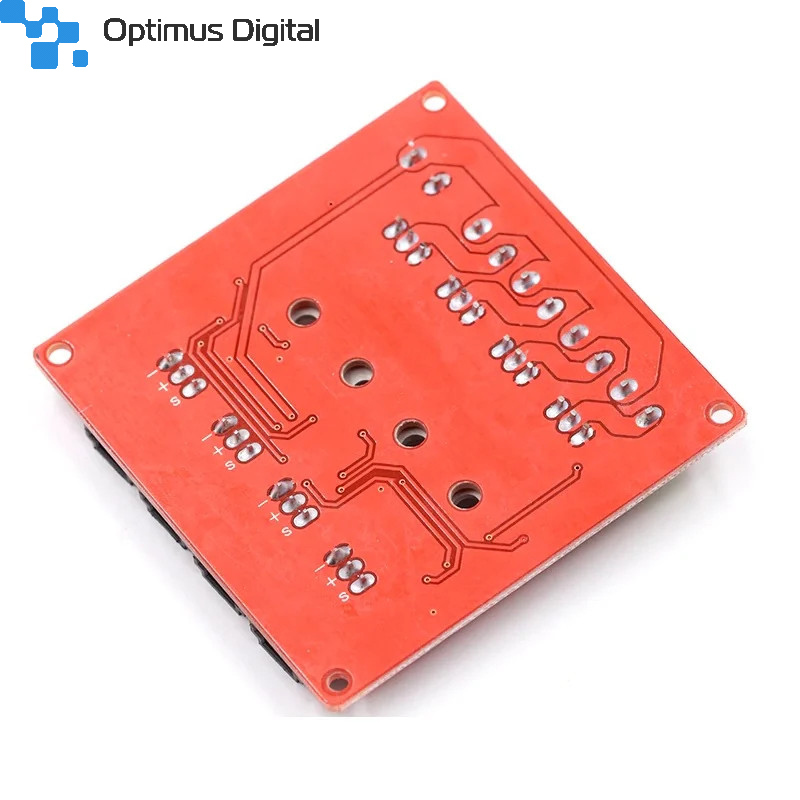

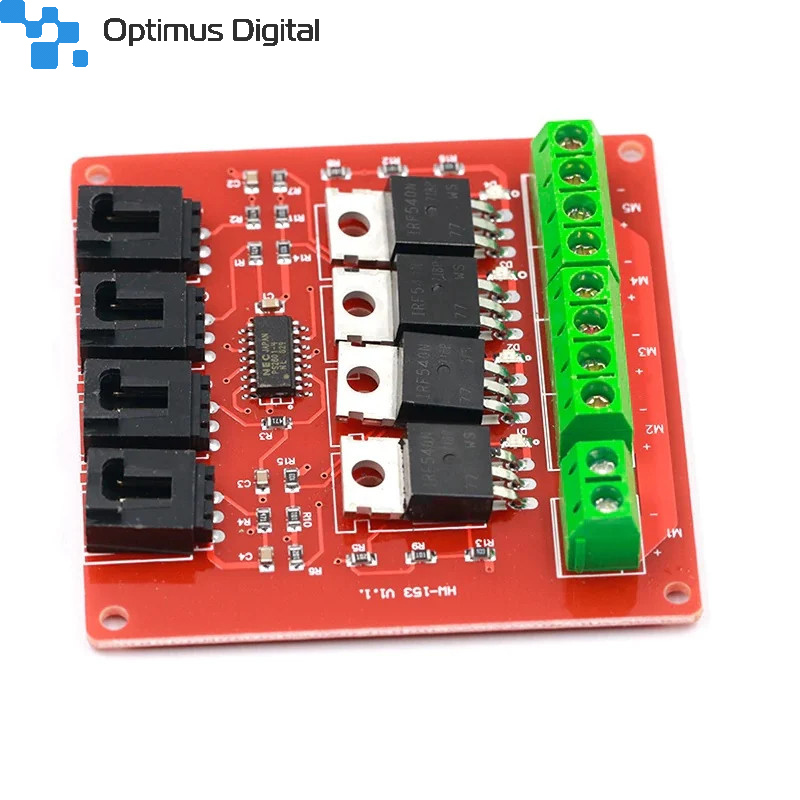

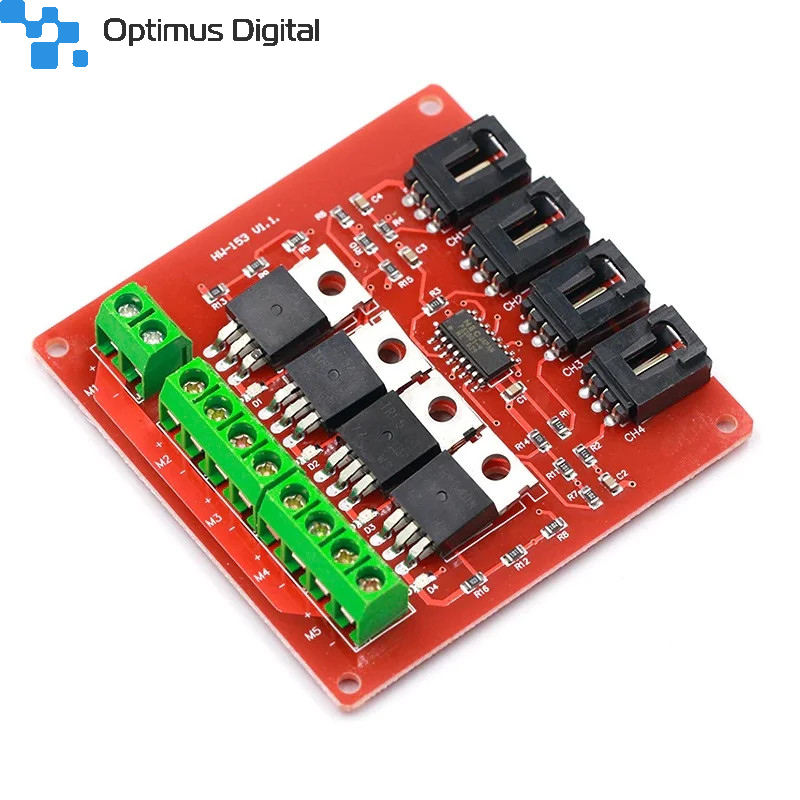

IRF540 Isolation Power Module Electronic Block 4 Channel MOSFET Switch

Description

IRF540 Isolation Power Module Electronic Block 4 Channel MOSFET Switch can supply up to four groups of electronic switches to control different circuit blocks.MOSFET is an electronic device with good switching characteristics. It is widely used in circuits, such as power supplies switching, motor drives, lighting dimmer and so on. Limited by the working principles, MOSFET can only be used to control the DC circuit, such as DC-LED screen and so on, but not suitable for AC circuit control.

In some extreme cases, it can be used to control the 100V/33A DC circuit. However, it is suggested that the controlled DC voltage is more than 9V.

Features:

1. MOSFET is an electronic device with good switching characteristics.
2. Used in power supplies switching
3. Used in Motor drives
4. Color: Red
5. Used in Lighting dimmer
6. It can be used to control the 100V/33A DC circuit. However, it is suggested that the controlled DC voltage is more than 9V.

Specifications

• Length(mm): 67
• width(mm): 67
• Height(mm): 14

Package Includes:

1 x IRF540 Isolation Power Module Electronic Block 4 Channel MOSFET Switch
