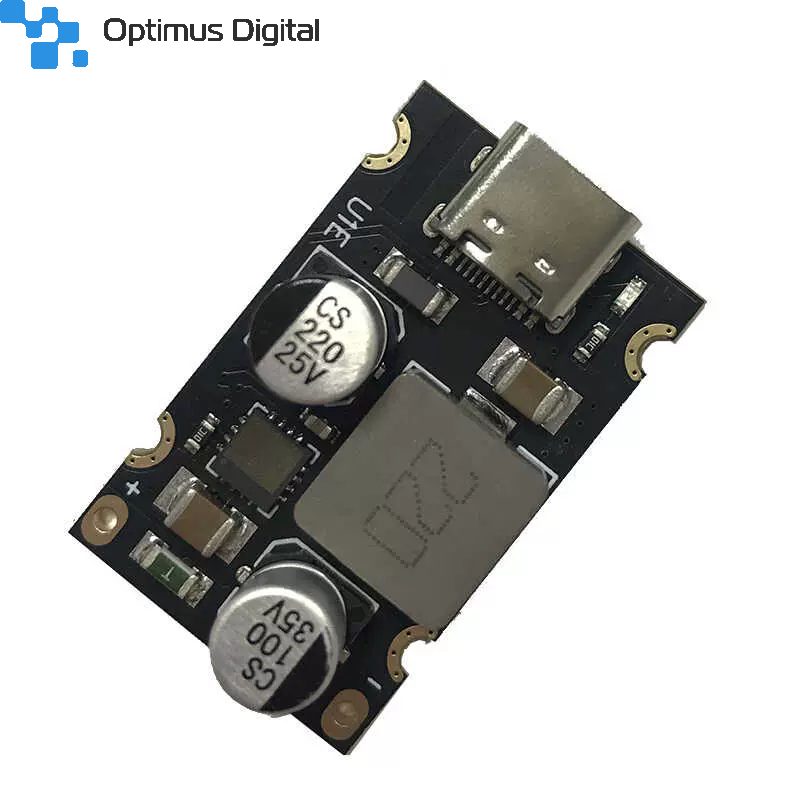

PD65W Fast Charging Module Standard Model

Features

1. Support PD3.1 (PPS), QC3.0, SCP
2. With protection functions, input overvoltage and undervoltage protection, input overcurrent protection, output overcurrent and short circuit protection, and overall machine overtemperature protection.
3. DC models are divided into two types: 5521 and 5525.

• 5521: Outer Diameter 5.5mm and Inner Diameter 2.1mm.
• 5525: Outer Diameter 5.5mm and Inner Diameter 2.5mm.

Specifications

• Maximum Output: 20V 3.25A
• Input Voltage: DC8~30V
• Output Voltage: automatically adjusts between 3.3V~21V when connected to a powered device compatible with TYPE-C (the input voltage must be higher than the output voltage, and to trigger 20V fast charging, the input voltage must be higher than 20v)
• Output Power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
• Conversion Efficiency: 92%~97%
• Output Voltage Ripple: <200mV
• No-load Current: <3mA
• Supported Charging Protocols: BC1.2, Apple protocol
• Qualcomm: QC2.0 and QC3.0
• Dimensions: 32×20×10mm(excluding the 1mm protrusion of the C-port female seat)

Package Includes:

1 x PD65W Fast Charging Module Standard Model
