0104210000006841
New product
This 6 mm 20-tooth type of pulley made of aluminum allows more torque and fewer skipped steps ideal for your 3D printers.
See description for more details about the product.
Add to cart now!
21 Item Items
Warning: Last items in stock!
Availability date:
Cogwheel 2GT-20 with 20 teeth 6 mm
This type of pulley made of aluminum allows more torque and fewer skipped steps ideal for your 3D printers. Together with a GT2 belt, it helps improve your printer quality.
• Material: Aluminum
• Inner Hole: 6 mm
• 5/8 bandwidth
• Type: synchronous pulley
2GT Synchronous Wheel GT2 Pulley Material: Aluminum | |||
Type/number of teeth | Bandwidth (mm) | Type/number of teeth | Bandwidth (mm) |
K type / 12 teeth | 6 | BF type / 30 teeth | 6 |
K type / 16 teeth | 6,10 | BF type / 32 teeth | 6,10 |
H type / 16 teeth | 6 | BF type / 36 teeth | 6, 9, 10, 15 |
K type / 20 teeth | 6, 9, 10, 15 | BF type / 40 teeth | 6, 9, 10 |
H type / 20 teeth | 6,10 | BF type / 48 teeth | 6 |
K type / 30 teeth | 6 | BF type / 60 teeth | 6, 9, 10 |
Double head / 20 teeth | 6 | K type / 20 teeth (black) | 6 |

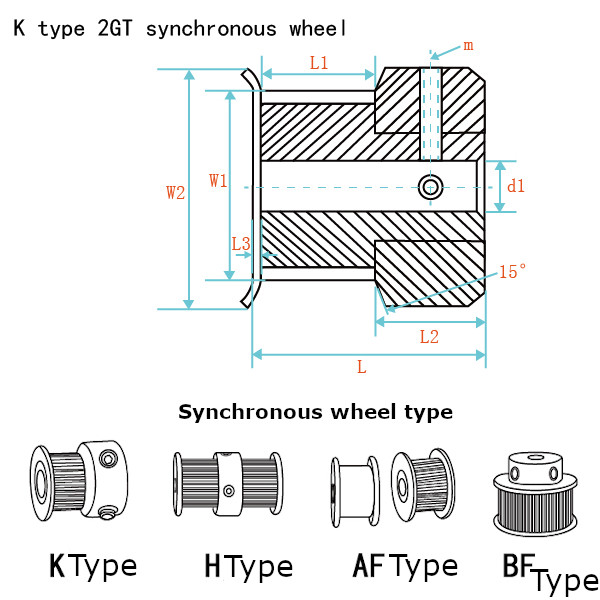

Synchronous wheel model | L | L1 | L2 | L3 | W1 | W2 | m | Weight/g | d1 |
K-2GT-12T-5B-6 | 14.0 | 7.0 | 6.0 | 1.0 | 7.14 | 10.0 | 2*M4 | 4/5 | |
K-2GT-16T-5B-6 | 14.0 | 7.0 | 6.0 | 1.0 | 9.66 | 13.0 | 2*M4 | 3/3.17/4/5/6/6.35 | |
K-2GT-16T-5B-10 | 18.0 | 11.0 | 6.0 | 1.0 | 9.66 | 13.0 | 2*M4 | 3/3.17/4/5/6/6.35 | |
K-2GT-20T-8B-6 | 16.0 | 7.0 | 7.5 | 1.0 | 12.22 | 16.0 | 2*M4 | 3/3.17/4/5/6/6.35/8 | |
K-2GT-20T-9B-9 | 19.0 | 10.0 | 7.5 | 1.0 | 12.22 | 16.0 | 2*M4 | 3/3.17/4/5/6/6.35/8 | |
K-2GT-20T-10B-10 | 20.0 | 11.0 | 7.5 | 1.0 | 12.22 | 16.0 | 2*M4 | 3/3.17/4/5/6/6.35/8 | |
K-2GT-20T-11B-15 | 25.0 | 16.0 | 7.5 | 1.0 | 12.22 | 16.0 | 2*M4 | 3/3.17/4/5/6/6.35/8 | |
K-2GT-25T-5B-6 | 16.0 | 7.0 | 7.5 | 1.0 | 15.41 | 18.0 | 2*M4 | 4/5/6/6.35/8/10 | |
K-2GT-30T-10B-6 | 16.0 | 7.0 | 7.5 | 1.0 | 18.6 | 21.5 | 2*M4 | 4/5/6/6.35/8/10 |
