EasyMech Anti Slip Motor Coupling 6 mm Internal Diameter

Description

If you are about to couple Omni, Mecanum or other Heavy Duty wheels with the motor then this is your perfect choice. The EasyMech has designed this Anti-Slip Motor Coupling mainly for one simple purpose, maximizing safe operation by avoiding any undesirable slipping between the motor shaft and the wheel.

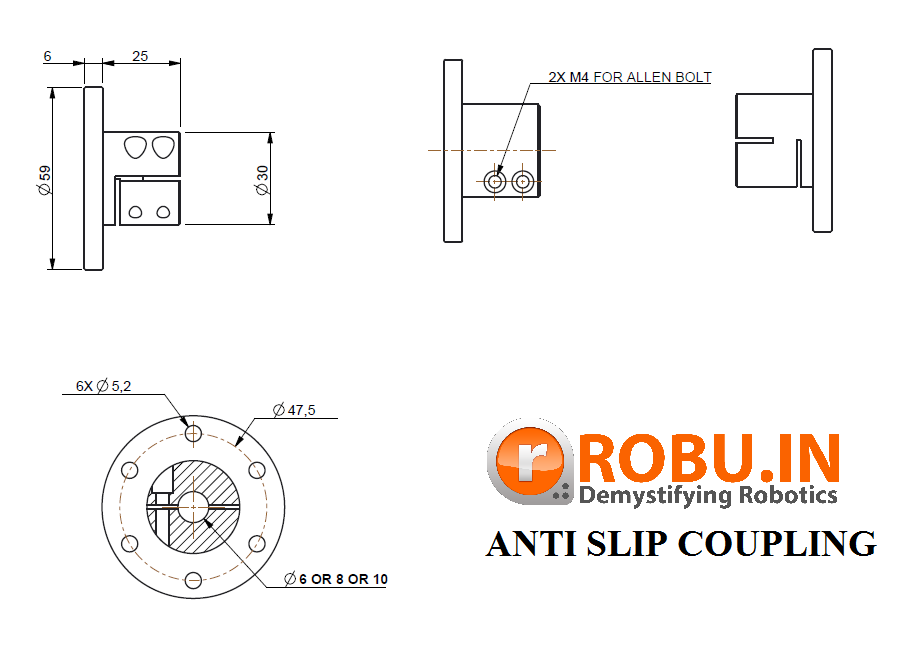

This EasyMech Anti-Slip Motor Coupling 6mm connects a motor having a shaft diameter of 6mm to a wheel which has PCD(pitch circle diameter) of 47.5mm.

They are having a high-quality aluminum body which gives them good operational strength. These rigid couplings will keep backlash to a minimum since the coupling is one single piece. They are tested for the high power robotic application.

The screws that clamp the shafts will be tightened, but not too much. The main feature of this type of clamping coupling is they do not damage the shafts of the motor.

Compatible Wheels having PCD of 47.5mm:

All Omni wheels(except 100mm aluminum), Mecanum wheels, Modified HD wheels.

Features

• Quality assured branded couplings.
• Equips high-quality aluminum.
• Avoids damage to the motor shaft.
• Ensure the safe operation of your robot.

Package Includes

• 1 x EasyMech Anti-Slip Motor Coupling.
• 2 x SS Socket Head Cap Allen Bolt M4x16.
• 1 x Medium Quality Allen Key 3mm.
