VK2828U7G5LF Miniature GPS Module

0104110000032683

New product

This mini GPS module has a built-in antenna, can be used with Arduino or Raspberry Pi and can detect longitude, latitude, altitude, speed, orientation and GMT time. It is very small, it has sides about 3 cm.


See description for more details about the product.

Add to cart now!

More details

3 Items

Warning: Last items in stock!

49,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description and specifications

You can use this mini GPS module in your projects or read data through the instant serial interface. The refresh rate is configurable, so this module can also be used for vehicles or other high-speed projects.

• Refresh rate: 1 Hz (preset) - 10 Hz

• TTL with 9600bps (standard) [supports: 4800.9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600]

• Power supply: 5 V, consumption 30 mA (supports 3.3-5 V)

• Receiver with 56 channels

• High Sensitivity: -161dBm

• Accuracy: 2.5m (Autonomous) / <2m [SBAS]

• Working temperatures from -40 oC to 85 oC

• Hot Start: 1s

• Warm Start: 28s

• Cold Start: 29s

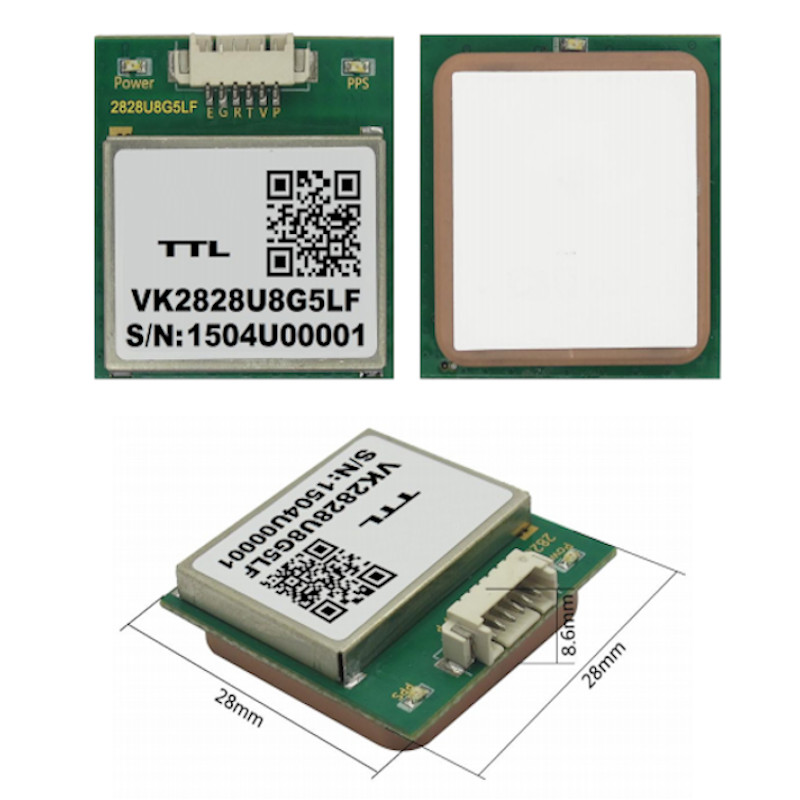

• Dimensions: 28 x 28 x 8.6 mm

• LED indicator


Features

• Industry-standard GPS antenna of 25 * 25 * 4mm, with high sensitivity

• Optional interface: UART/TTL, RS232

• High-precision TCXO of KDS 0.5PPM

• Built-in SQI flash to set the parameters as required

• Built-in RTC crystal and capacitors to start quickly

• Built-in LNA

• Optional frequency of data refreshing: 1 Hz-10 Hz

• Supports A-GPS service: Assist Now Online and Assist Now Offline

• Hybrid engine: GPS, GALILEO, SBAS (WAAS, EGNOS, MSAS, GAGAN)





Pin's Definition

Name Function Description
PPS Output time pulses (pulses per second)
VVC The main power supply is +3.3 V~+5 V, and the power consumption is 50 mA in one hour
TX UART/TTL interface and RS232_TXD is optional
RX UART/TTL interface and RS232_RXD is optional
GND Connect to the ground
EN Power Enable: high level means the module works, low level means the modules are closed.
