Long Range nRF24L01 Module (2.4 GHz)

0104110000000637

New product

This is a 2.4 GHz nRF24L01 transceiver with PA and LNA circuit on board. With its antenna, it can reach 1100 meters transmission distance making it ideal for long-range communication for your project.


See Description for more details about the product.

Add to cart now!

More details

349 Items

15,95 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

This is a long-range 2.4 GHz transceiver based on the NRF24L01+ chip, with onboard power amplifier (PA) and onboard low noise amplifier (LNA). With its external antenna, it features a range of up to 1100 meters. It has the same interface as nRF24L01+ wireless module making it ideal as a replacement if you want to get a higher communication range for your project with minimal modifications.

This module is also great for use in wireless peripherals, remote controls, home automation, commercial automation and more.


Specifications

  • Power Supply Range: 1.9 V to 3.6 V
  • Operating Temperature Range: -20oC to +70oC
  • Sensitivity at 2 Mbps: -92 dBm
  • Sensitivity at 1 Mbps: -95 dBm
  • Sensitivity at 250 kbps: -95 dBm
  • PA Gain: 20 dB
  • LNA Gain: 10 dB


Don't delay, buy today.


Add to cart now!

Reviews

Write a review

Long Range nRF24L01 Module (2.4 GHz)

Long Range nRF24L01 Module (2.4 GHz)

This is a 2.4 GHz nRF24L01 transceiver with PA and LNA circuit on board. With its antenna, it can reach 1100 meters transmission distance making it ideal for long-range communication for your project.


See Description for more details about the product.

Add to cart now!

Customers who bought this product also bought:

Download

Datasheet nRF24L01

Download (1.08M)

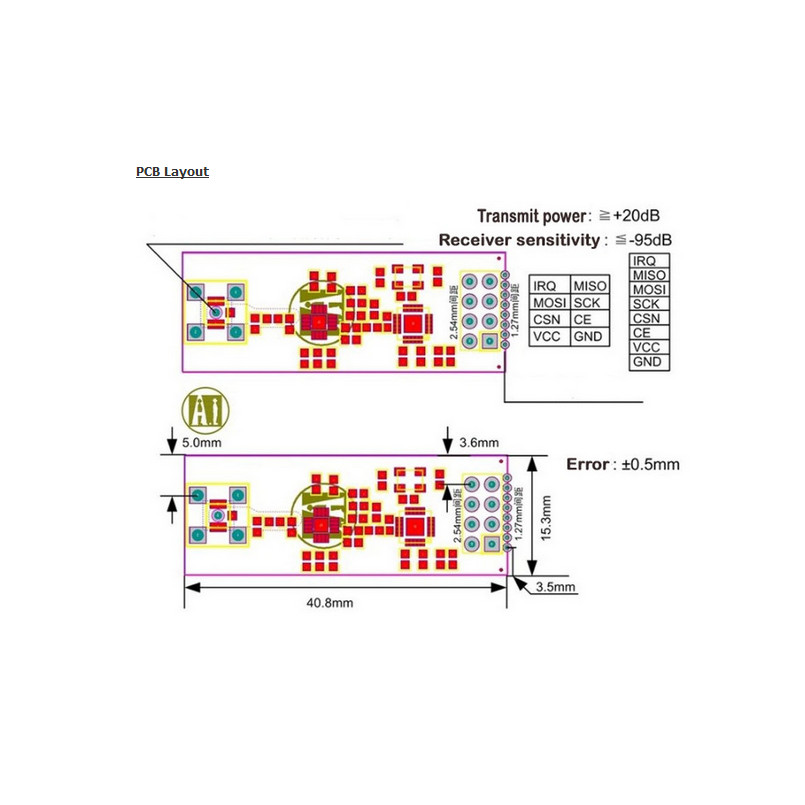

PCB-nRFN24L01

Download (71.49k)
