12 Segment LED Bar (4 Red, 8 Green)

0104110000008718

New product

12-segment LED bar (4 red and 8 green) useful to highlight the magnitude of a certain physical size or to display the binary representation of certain numbers.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

4,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

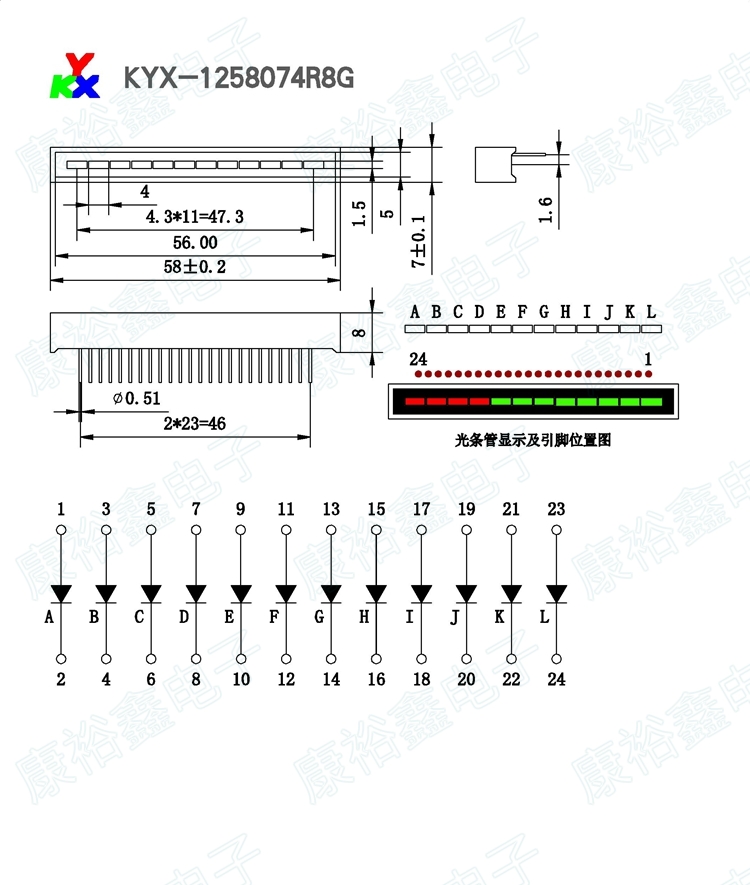

The product is a 12-LED LED bar with two colors: 4 red LEDs and 8 green LEDs. To function properly, each LED needs a voltage drop across it of 1.8 V - 2.2 V and a current of maximum 20 mA, recommended being 15 - 18 mA.

The dimensions of the mode are 7 x 58 mm. This module is useful for displaying the level / amplitude of certain physical quantities, such as temperature, voltage, or to display numeric values ​​in binary.


Don't delay, buy today.


Add to cart now!

Reviews

Grade
01/05/2023

Aurelian Tagarici

pini este mai mica... nu exact gauri pcb

Grade
09/15/2017

Incompatibila cu breadboard

Bara lumineaza suficient de puternic.
Singura problema este ca distanta dintre pini este mai mica decat distanta dintre gaurile din breadboard.
In rest este un produs ok
