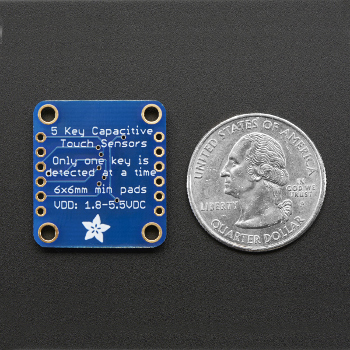

Standalone 5-Pad Capacitive Touch Sensor Breakout - AT42QT1070

P1362

New product

This breakout board is the simplest way to create a project with multiple capacitive touch sensors.


See description for more details about the product.

Add to cart now!

More details

2 Items

Warning: Last items in stock!

59,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info


Description

This breakout board is the simplest way to create a project with multiple capacitive touch sensors. No microcontroller is required here - just power with 1.8 to 5.5VDC and connect up to 5 conductive pads to the 5 left-hand pins. When a capacitive load is detected (e.g. a person touches one of the conductive contacts) the corresponding LED on the right lights up and the output pin goes low. You can use this to update an existing normal-button project where buttons connect to ground when pressed.

Note that only one contact will be detected at once (this is to protect against having a hand brush against two or more contacts at once.

Comes with a fully assembled board, and a stick of 0.1" header so you can plug it into a breadboard. For contacts, we suggest using copper foil, then solder a wire that connects from the foil pad to the breakout.
