Raspberry Pi AI HAT+ 2

Raspberry Pi AI HAT+ 2 for Raspberry Pi 5

Does not include Raspberry pi 5 board. It can be bought separately.

For further information and to get started, access the following link:

https://www.raspberrypi.com/documentation/accessories/ai-hat-plus.html

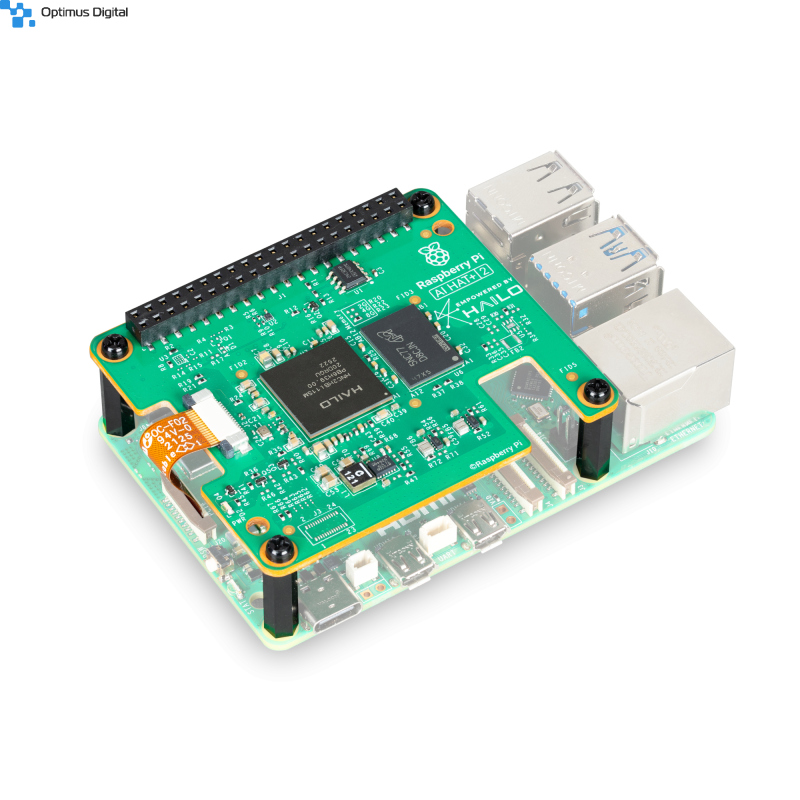

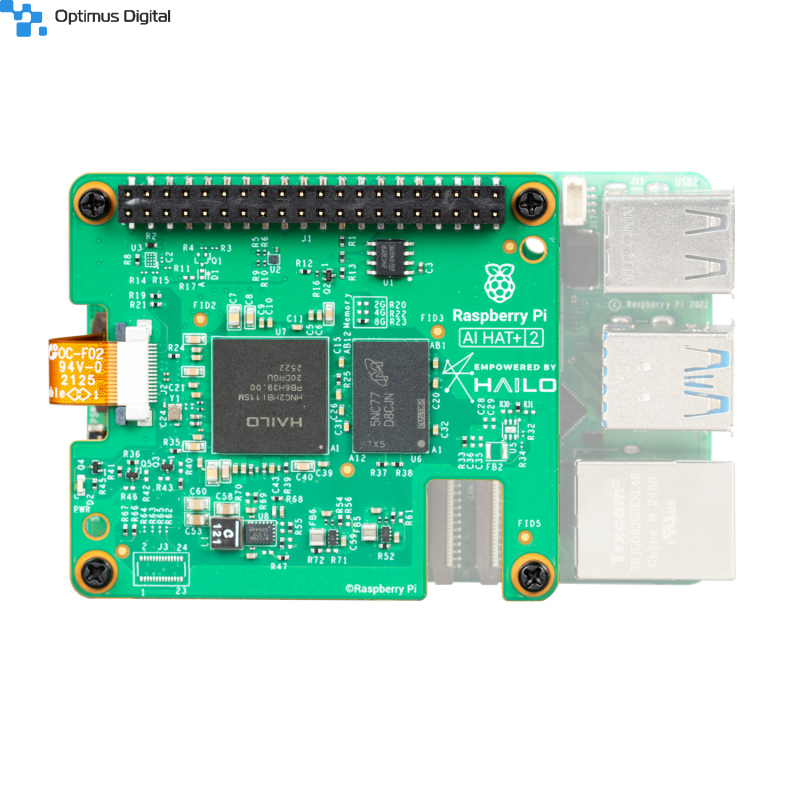

The Raspberry Pi AI HAT+ 2 is an add-on board based on the Hailo-10H AI accelerator that brings generative AI capability to Raspberry Pi 5. With 8GB of dedicated on-board RAM, the AI HAT+ 2 is ideal for running large language models (LLMs) and vision-language models (VLMs) locally, leaving the host Raspberry Pi 5 free to handle other tasks.

The AI HAT+ 2 delivers reliable, low-latency, accelerated generative AI at the edge, making it the perfect choice for applications including offline process control, secure data analysis, facilities management, and robotics. The AI HAT+ 2 delivers 40 tera-operations per second (TOPS) of INT4 inferencing performance, with computer vision performance equivalent or superior to the 26 TOPS AI HAT+. A set of sample models is provided by Hailo; users can also train custom vision models or fine-tune generative AI models using Low-Rank Adaptation (LoRA) to suit their application, such as speech to text, translation, or visual scene
analysis

Specifications:

• Hailo-10H AI accelerator delivering 40 TOPS (INT4)
• Performance for computer vision models comparable to the Raspberry Pi AI HAT+ (26 TOPS)
• Runs generative AI models efficiently using 8GB on-board RAM
• Fully integrated into Raspberry Pi’s camera software stack
• Supplied with heatsink, and with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with
  Raspberry Pi Active Cooler in place

Heatsink application instructions:

Users running benchmarks or very intensive AI workloads are advised to install it to prevent thermal throttling.

1. Remove the backing paper from the underside of the product.
2. Make sure your Raspberry Pi AI HAT+ 2 is powered off. Position the heatsink carefully in the correct
space on the AI HAT+ 2, making sure not to hit any of the connectors.
3. Align the two black push pins with the two dedicated heatsink holes.
4. When correctly positioned, press evenly on the tops of the two push pins simultaneously until they
click, indicating that they are clipped onto the board.
5. We recommend that the heatsink is not removed once it is fitted to the Raspberry Pi AI HAT+ 2.
Removal of the heatsink will cause the push pins and thermal pads to degrade and is likely to lead to
product damage.
6. Ensure the push pins are undamaged and securely clipped onto the AI HAT+ 2 before use.

Safety warnings:

To avoid malfunction or damage to this product, please observe the following:

•  The Raspberry Pi AI HAT+ 2 shall only be connected to a Raspberry Pi 5 via the PCIe interface and GPIO header.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered.
•  Whilst in use, this product should be firmly secured, and should not be contacted by conductive items.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met.
•  The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.
• Operation of this device requires adult supervision.
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; Raspberry Pi computers and the Raspberry Pi AI HAT+ 2 are designed for reliable operation at normal ambient temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Whilst it is powered, avoid handling the printed circuit board, or only handle it by the corners to minimise the risk of electrostatic discharge damage.
