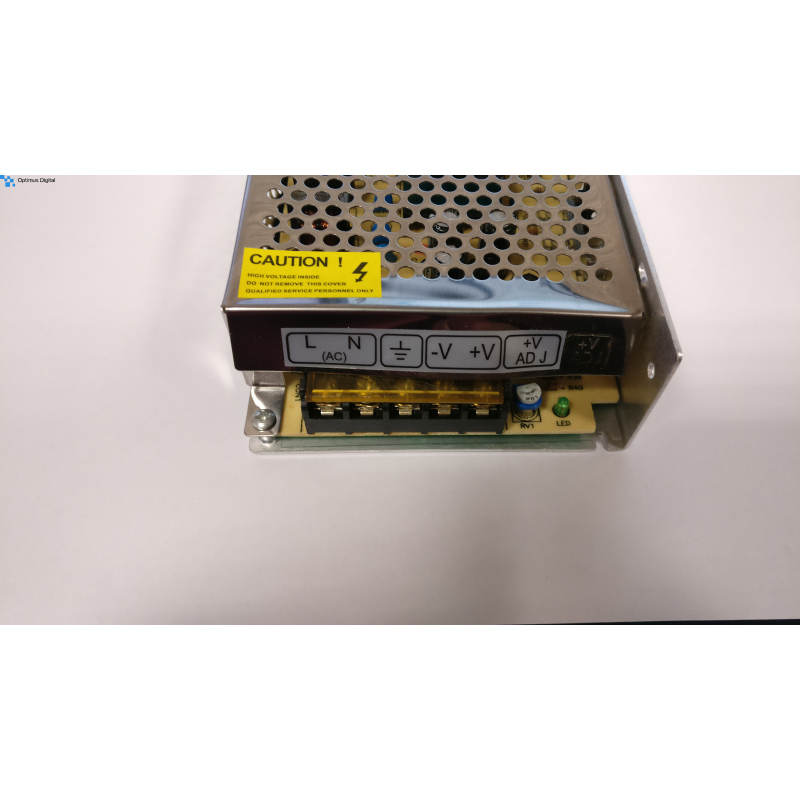

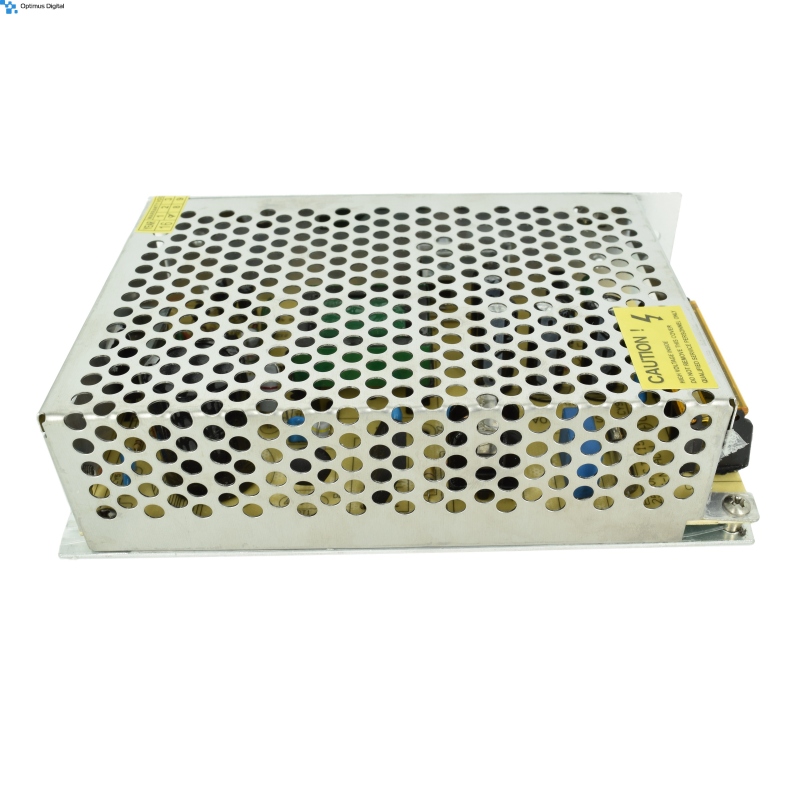

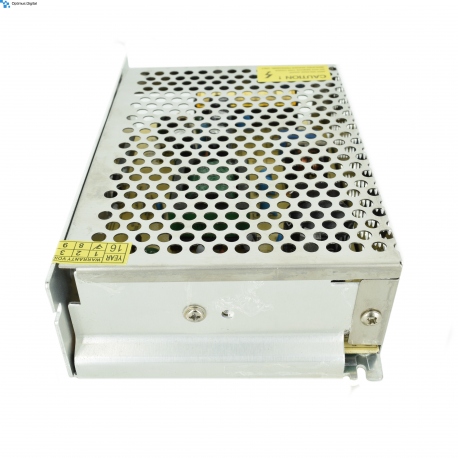

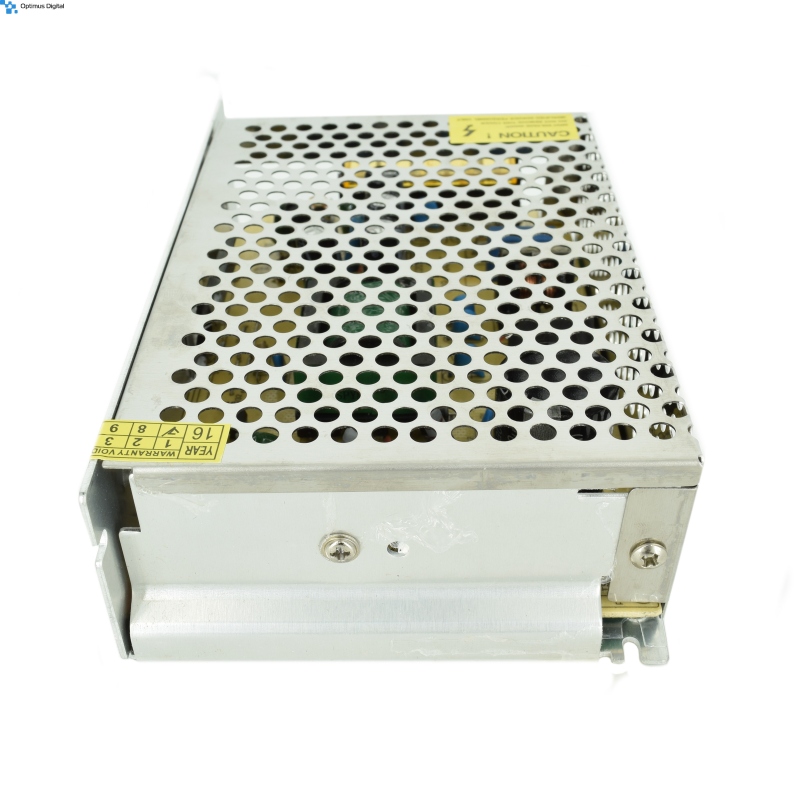

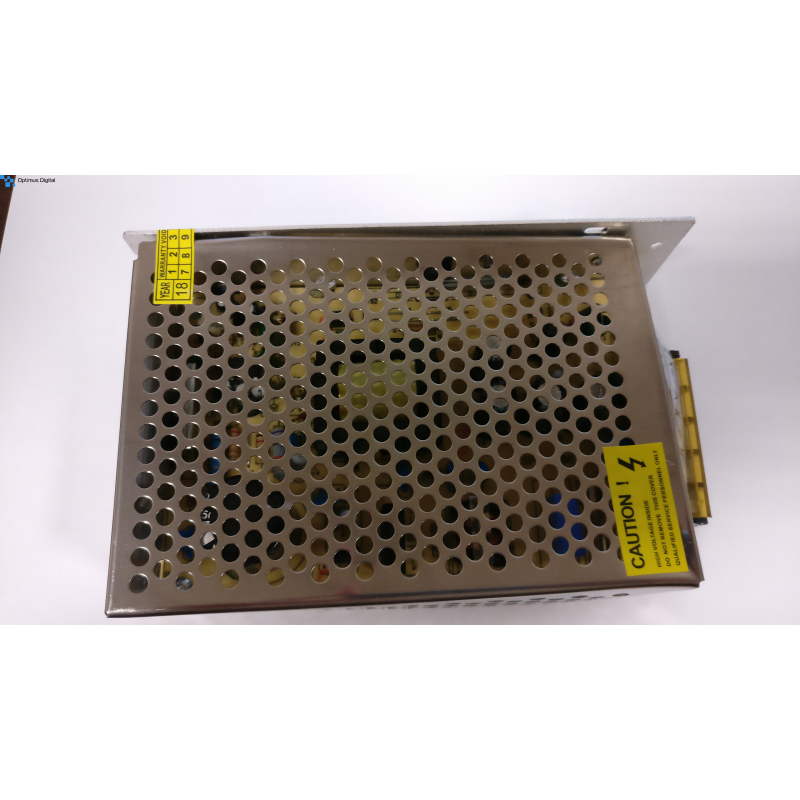

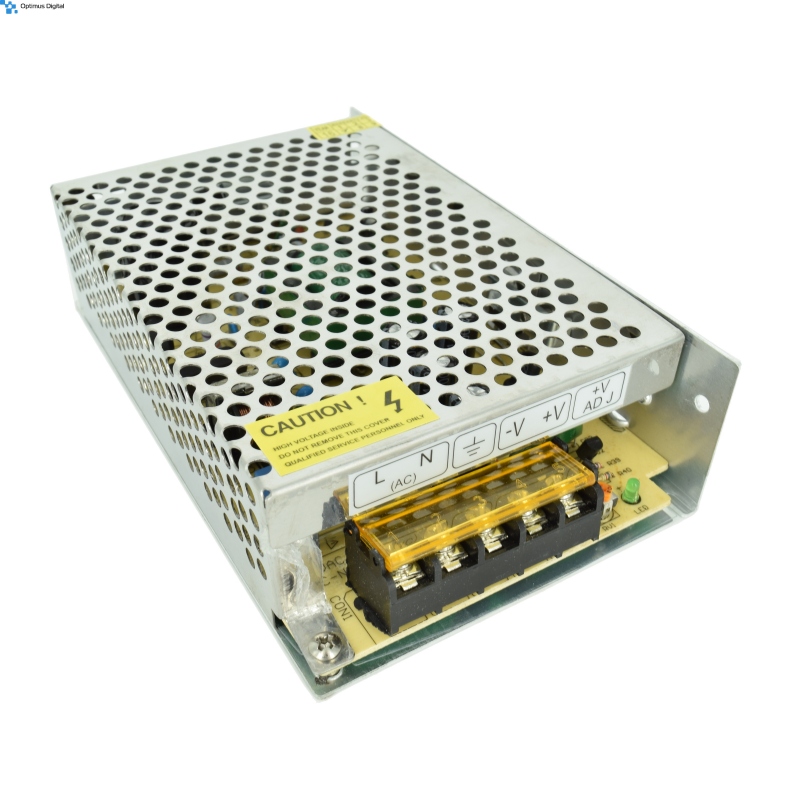

5V 10A (50 W) Switched Mode Power Supply - new product, damaged case

OVERVIEW

This switched mode power supply is widely used in electronic equipment in keeping voltage stability.

It is made of high quality metal material, durable, and very reliable which ensures that it will give you a good performance.

This switching power supply is can be installed easily and very easy to be turned on and off.

SPECIFICATIONS

• Protection Category: Short Circuit / Overload / Over Voltage
• LED Power Indicator
• 100% Full Load Aging Test
• Input Voltage & Frequency Range: 110 V, 220 VAC
• Short-Circuit Protection: Self-recovery
• Output Start-Up Time: ≤ 2 s, 120 VAC  ≤ 1.0 s 230 VAC
• Output Hold Time: ≥10 ms 120 VAC, ≥20 ms 230 VAC
• Working Environment: 10 ℃ to 50 ℃; 20% to 90% RH (no condensation)
• Safety Standards: Design Reference EN / UL
• Electromagnetic Compatibility Standard: Design Reference EN 55022 Class B; EN 61000-4-2 / -3 / -4 / -5 / -6 / -11
• Dielectric Strength:
  • Input - Output: AC 1500 V, 1 min
  • Input - Chassis: AC 1500 V, 1 min
  • Output - Chassis: DC 500 V, 1 min
