Line Tracking Robot Chasis

0104110000023568

New product

Robot chassis tracked the useful line to understand the first concepts of electronics in an interactive way.


See description for more details about the product.

Add to cart now!

More details

1 Item

Warning: Last items in stock!

49,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

-30,00 lei

79,99 lei tax incl.

Add to wishlist

Accessories

Must-have Accessories

Total:



More info

The kit contains

• Two motors with reducer;

• Socket for two R6 batteries;

• Two potentiometers;

• Stop / Start button;

• Integrated circuit LM393;

• Integrated circuit socket;

• LED;

• Two photoresists;

• capacitors;

• Integrated circuit which also uses chassis;

• Two transistors;

• resistors;

• Other electronic and mechanical parts required for operation.


This product is a line follower robot DIY kit. The kit contains all the electronic and mechanical components to get the robot.

The robot works completely autonomously and you do not need to program it. To keep track of the line, he uses LEDs and photoresistors to differentiate between white and black, and comparators and transistors to control the motors according to the direction they need to go.

To put the robot into operation, you only need a letcon or soldering gun, patience, and two batteries. The layout and location of each component can be found in the attached pictures.




Don't delay, buy today.


Add to cart now!

Reviews

Write a review

Line Tracking Robot Chasis

Line Tracking Robot Chasis

Robot chassis tracked the useful line to understand the first concepts of electronics in an interactive way.


See description for more details about the product.

Add to cart now!

Customers who bought this product also bought:

Download

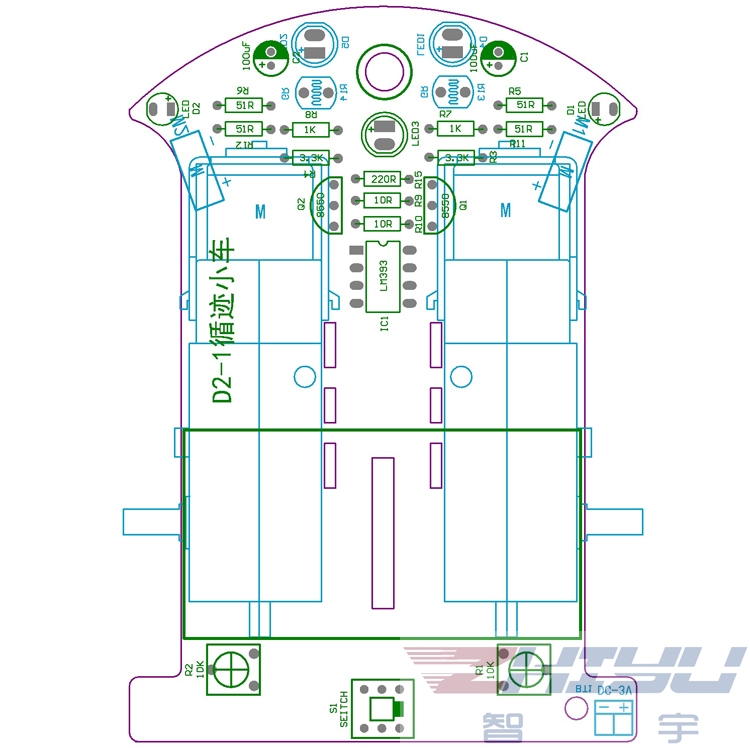

Amplasare componente

Download (209.35k)

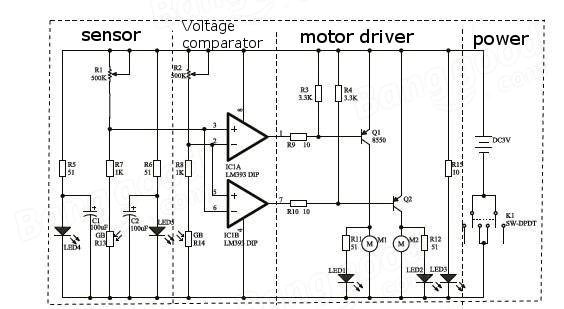

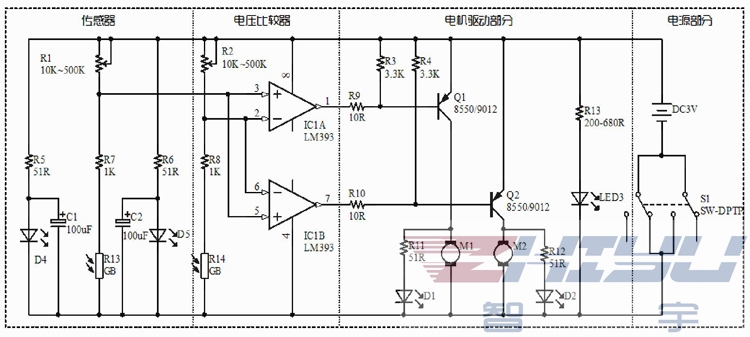

Schema robot

Download (141.74k)
