Adjustable Micro DC-DC Step Down Converter Module (4 - 20 V Input, 0.8 - 17 V Output)

0104110000035288

New product

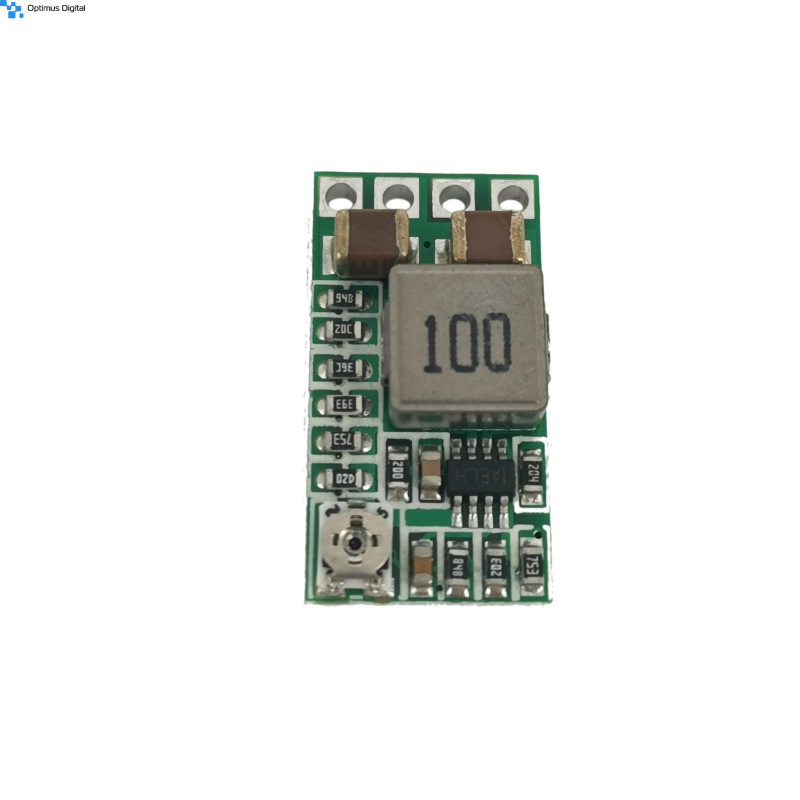

This low voltage source can be adjusted, you can get voltages between 0.8 V and 17 V via potentiometer setting and have a maximum output current of 3 A.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

9,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description and specifications

Due to its small size, you can include this source in a wide range of projects.

    • Input voltages: 4 - 20 V DC

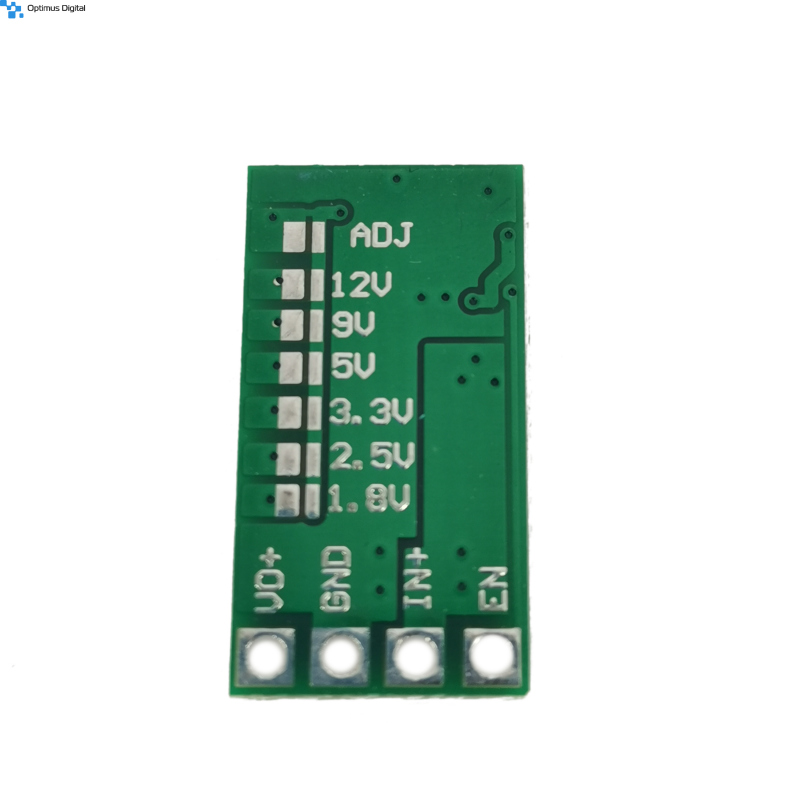

    • Output voltages between 0.8 and 17 V, fixed (1.8 V, 2.5 V, 3.3 V, 5 V, 9 V, 12 V)
    • Maximum output current: 3 A (1.5 A measured at 12 V output)
    • Efficiency up to 97.5%
    • Working Frequency: 500 KHz
    • Ripple: 20 mV
    • Leakage current: 0.85 mA
    • Dynamic Response: 5% - 200uS
    • Short-circuit protection on the output (not short-circuited for a long period of time)
    • Enable pin
    • Accuracy at output voltage setting: 0.5%
    • Pin spacing: 2.54 mm

Pay attention to connections, polarization must not be reversed.


Don't delay, buy today.


Add to cart now!

Reviews

Grade
11/16/2019

Completare cu informatii

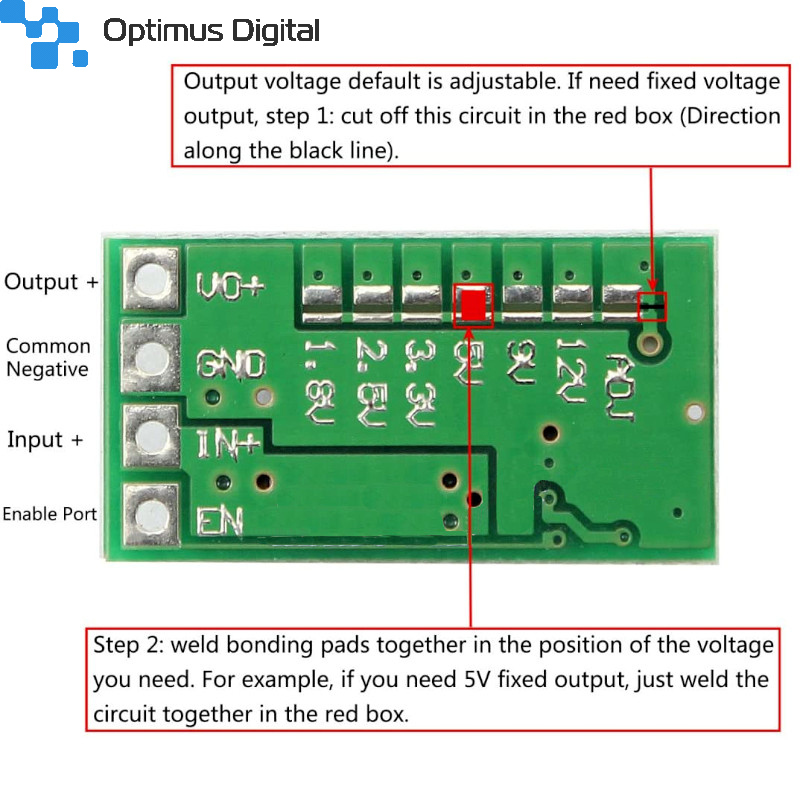

Are default enable pus cu pull-up pe placa. Default este pus semireglabilul pentru a regla tensiunea. Daca se doreste tensiune fixa, trebuie taiat pe spate traseul de ADJ si lipit tensiunea necesara. Informatii suplimetare gasiti pe www.sunrom.com sau pe www.electrodragon.com cautand in goolge '3A/24V, MP2315' (siteurile apar mai jos, nu primele - 3, 5)

  • 23 out of 23 people found this review useful.
