WiFi Module ESP8266 ESP-07

0104210000003314

New product

High-performance WiFi ESP-07, which can help you connect your internet circuits. The ESP-07 wireless module is a high-performance one that can help you with your electronic projects. The module also has an available external antenna connection, which increases its data transmission capabilities.


See description for more details about the product.

Add to cart now!

More details

899 Items

16,62 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info


Technical specifications

  • Protocol 802.11 b / g / n
  • Power supply: 3.3V
  • Required current: up to 215mA, depending on operating mode
  • Output power in 802.11b mode of + 19.5dBm
  • Current consumed in power down mode <10uA
  • May communicate via SPI, UART or SDIO 2.0
  • Wi-Fi Direct (P2P)
  • Integrated TCP / IP stack
  • It can exit standby mode and send data in less than 2ms

Dimensions: 16 x 21.2 mm

The ESP-07 wirelles module is a high-performance one that can help you with your electronic projects. The module also has an available external antenna connection, which increases its data transmission capabilities.

This product can help you with many innovative projects. A very exciting project would be to connect the devices in your home to Arduino relays and pads and, along with this module, to control your home-to-office home appliances via the internet.

CAREFUL!!! Pin spacing is not standard (2.54 mm), so the module is not compatible with breadboard or standard pin headers. The pin spacing is approximately 1.5 mm.


Instructions for use

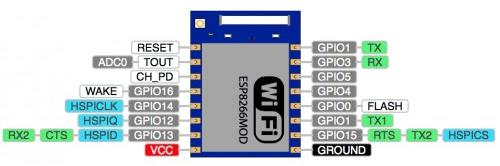

The map of the pins is as follows:

ESP07_ESP8266_Pinout_Colored-500x416_1.j

Programming this module is done using a USB converter to Serial CP2102 . The login scheme is attached below:

CAREFUL!!! The module feeds to 3.3 volts, otherwise you risk damaging the product.
