BD243 DIY Prototyping Kit of Mini Tesla Coil

Description

ATTENTION! Needs assembly and soldering!

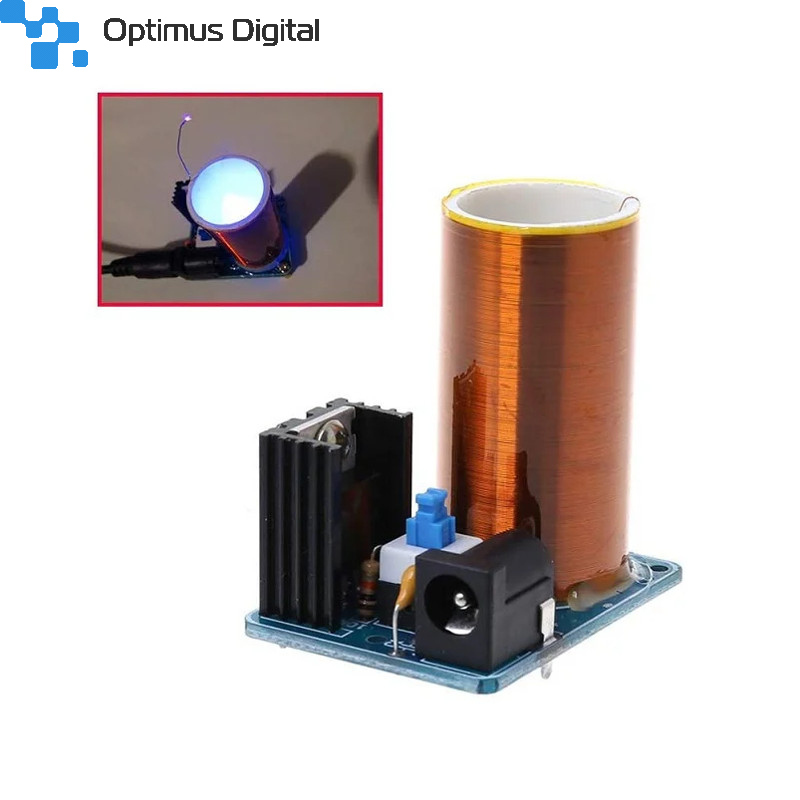

BD243 DIY Kit Mini Tesla Coil Kit is un-assembled Tesla coil prototype kit. It is the famous Tesla Coil transformer (resonant transformer) prototype kit that operates on the principle of resonance.

It can produce high-temperature and high-pressure plasma and can ignite, wirelessly transmit electricity, illuminate fluorescent lamps. This product is newly developed. The primary coil is already on the PCB board. It does not need to be wound on the outside It is convenient for fans to install with high efficiency and compact design.

Features and Specification

1. Type: Diy kits
2. Input voltage: 9-12V, can be started with 9V battery, but if there is an arc, the working voltage needs 12V.
3. PCB board size: 3.1x4cm/1.22x1.57inch
4. Color: As shown
5. Quantity: 1 Set

Specifications

• Operating Voltage: 9V, but if there is an arc, the working voltage needs 12V.
• Operating Current (A): 2.4

Package Includes

1 x BD243 DIY Kit Mini Tesla Coil Kit

Kit Includes:

1 x PCB board
1 x Coil
2 x 3MM LED Blue
1 x DC005 seat
2 x 105 monolithic capacitor
1 x 8×8 self-locking switch
2 x 10K resistor
1 x 15x10x20 small heat sink
1 x 3×6 screw
1 x BD243
1 x Bubble
4 x M2x4 screw
4 x M2x7 double pass copper column
