Overview

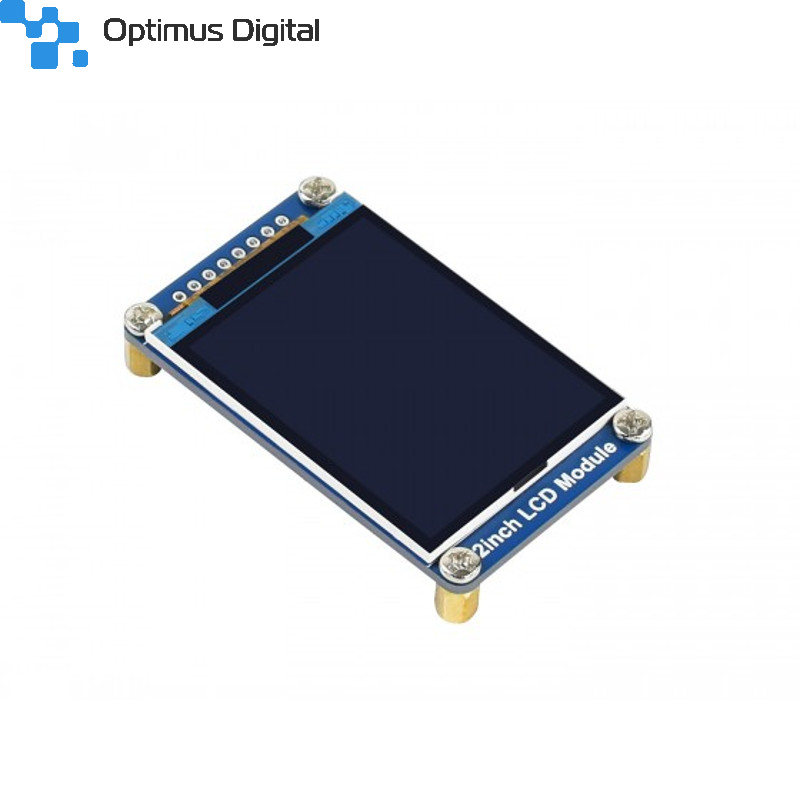

This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface.


Features

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)


Specifications

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 262K color
  • Resolution: 240×320
  • Backlight: LED
  • Operating voltage: 3.3V/5V


Interface

SYMBOL DESCRIPTION
VCC Power (3.3V/5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight


Dimensions


PACKAGE CONTENT

Weight: 0.024 kg

  • 2inch LCD Module x1
  • PH2.0 20cm 8Pin x1
