MAX7219 LED Dot Matrix Module

0104110000000477

New product

This module used MAX7219 chip to drive 8 x 8 LED matrix which can be used in various electronic display panels.


See Description for more details about the product.

Add to cart now!

More details

20 Items

$4.20
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

This module is based on the MAX7219 chip which is a compact, serial input common-cathode driver that interfaces microcontrollers to LED matrices.

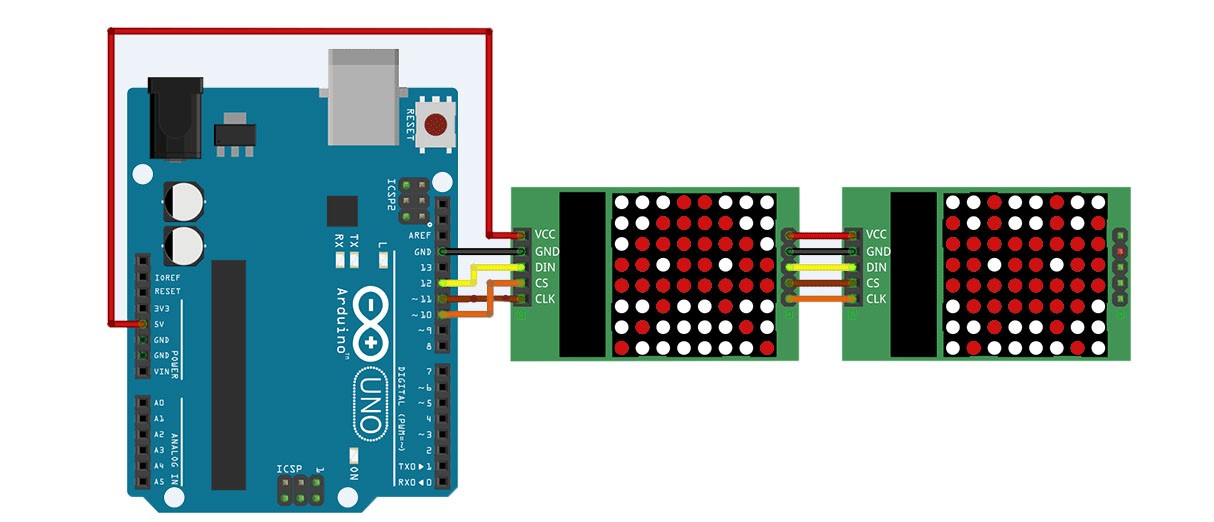

All common microcontrollers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects.


Specifications

  • Operating Voltage: 5 V
  • Size: 5 cm x 3.2 cm (wide) x 1.5 cm (high)
  • Four holes (3 mm) with screws for easy installation (M3 studs can be used)
  • 5 x DuPont Lines (20 cm)
