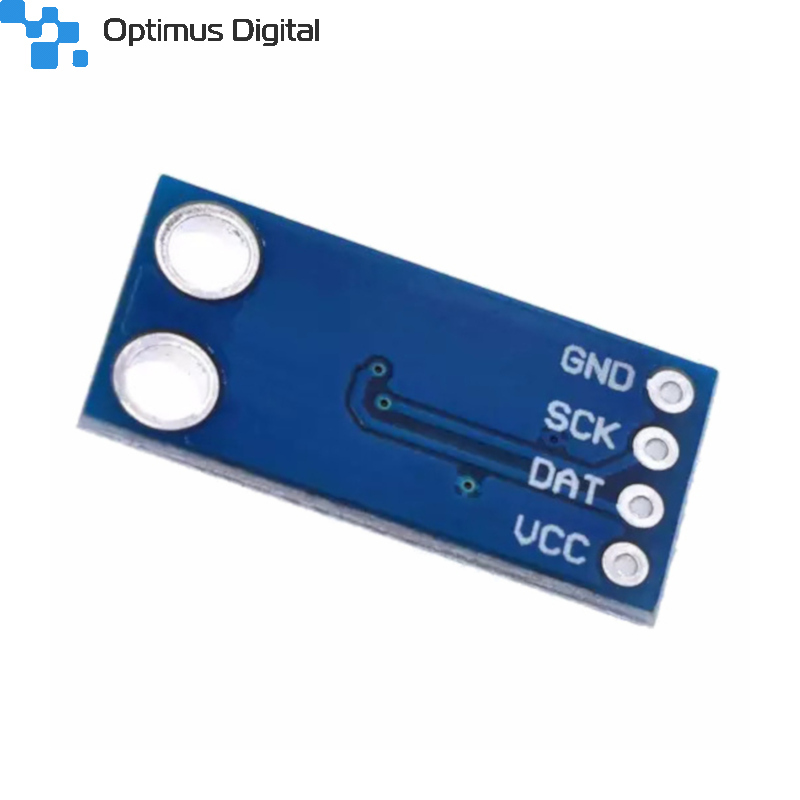

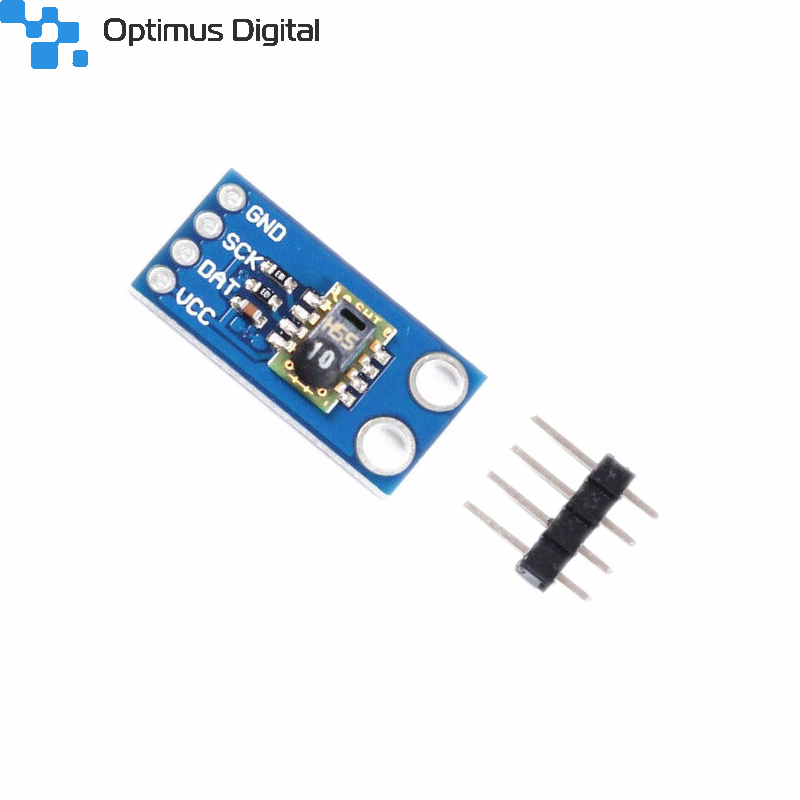

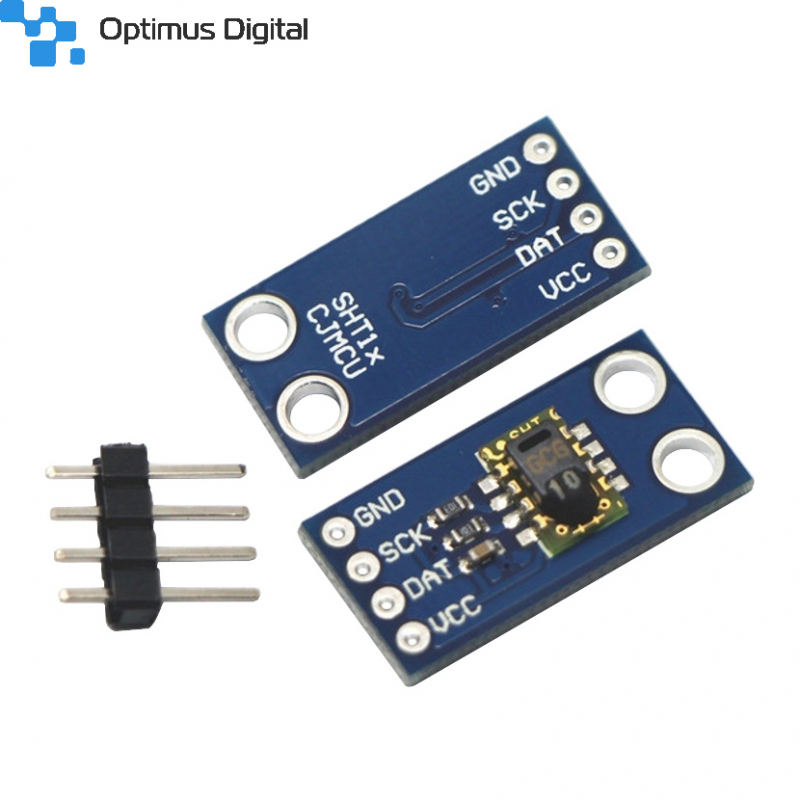

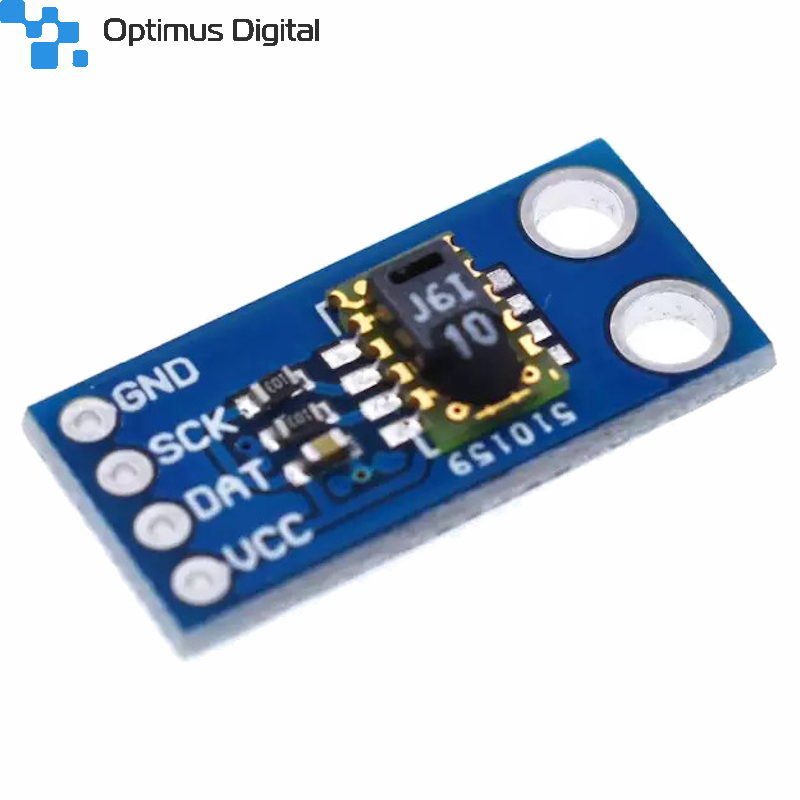

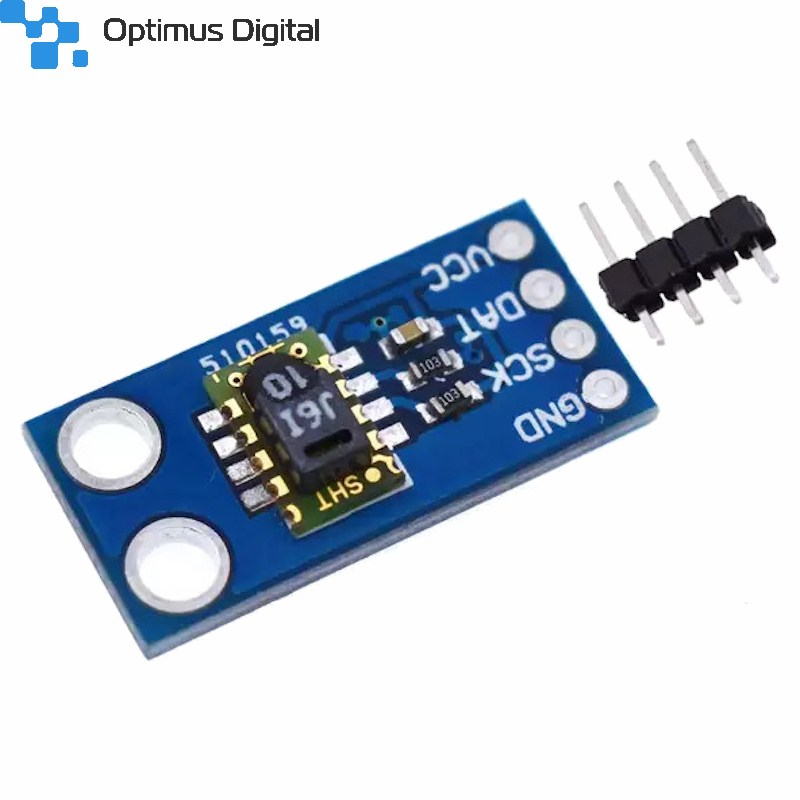

SHT10 Temperature and Humidity Sensor

0104110000027818

New product

This module is based on the SHT10 sensor, which has digital output, is calibrated and can measure ambient temperature and humidity.


See description for more details about the product.

Add to cart now!

More details

7 Items

59,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description and specifications

The sensor can measure the temperature with an accuracy of 0.5oC and the humidity accurate to ± 4.5RH. It also integrates a processor for obtaining digital output data. Relative humidity can be measured in the range 0-100% RH. The humidity sensor is connected to a 14-bit ADC converter and a serial interface, resulting in high signal quality, fast response time and good interference resistance.

  • Digital output
  • Power supply from 2.4 to 5.5 V
  • Power consumption: 80 μW (at a 12-bit measurement, powered by 3 v)
  • Humidity measuring range: 0-100% RH
  • Moisture response time: 8 seconds
  • Each sensor is calibrated in a precisely measured humidity chamber, the settings being stacked on the chip.
