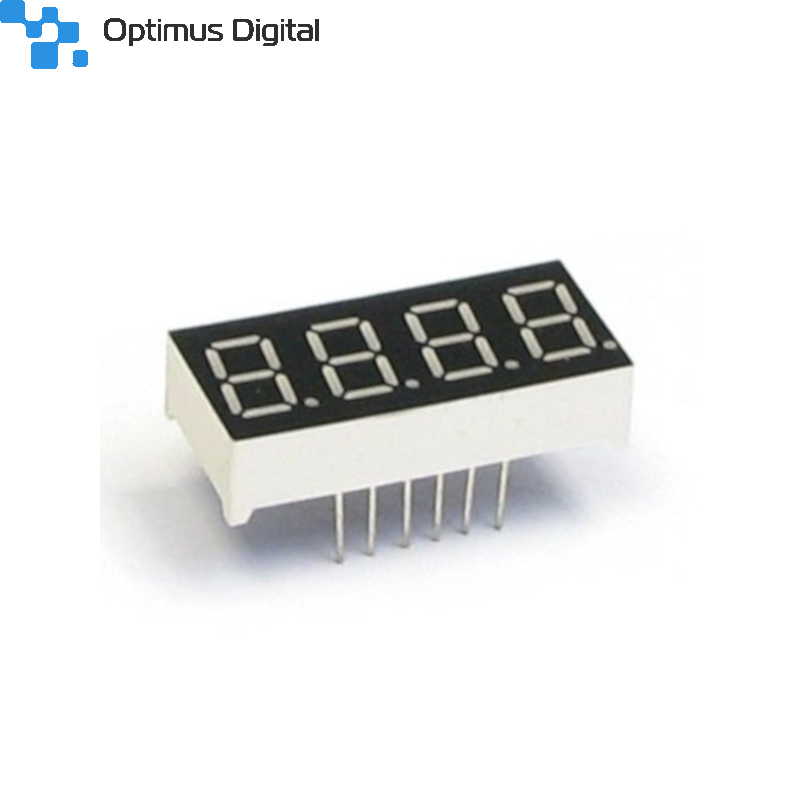

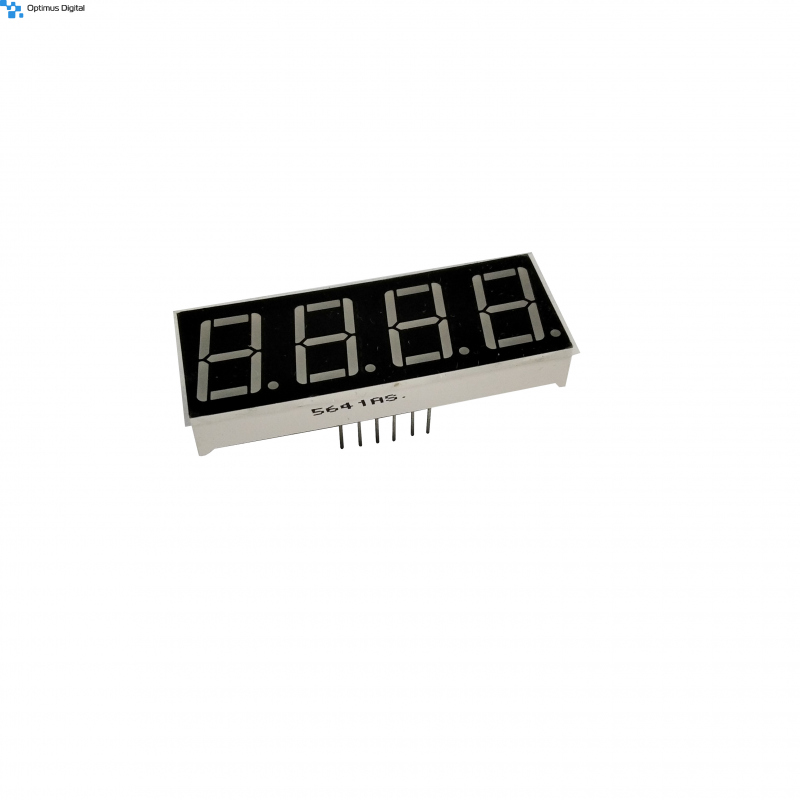

5641AS 4 Digit LED Display Common Cathode

0104110000093455

New product

5641AS 4 Digit LED Display Common Cathode


See description for more details about the product.

Add to cart now!

More details

488 Items

1,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Technical Specifications

  • 4 digit display, 7 segments
  • Dimensions:  50x19 mm (Length x width).
  • Maximum: 10 mA / segment


Instructions for use

1. Make the hardware connections.

The common cathode LED display requires the use of 4 220 Ω resistors to be used with an Arduino UNO-compatible development board. Being a common cathode, the resistors will be mounted on the pins that select the digits.

To deduce the significance of each pin, see the attached images below:


Connecting to a development board is easy because each pin has to be connected to a digital pin. A connection scheme would be the following:


2. Load the code on the development board.

If you do not have the segment display experience, you can download a library specifically created for this component. This is called "SevSeg" and can be downloaded from the Arduino IDE development environment, following the following steps: open SKETCH> INCLUDE LIBRARY> MANAGE LIBRARIES and search for "SevSeg". To load an example, go to EXAMPLES > SevSeg and select one of the examples. You also need to make sure that the declared pins match the connections made and that the corresponding screen type ("COMMON_CATHODE") is selected.
