XU4 Shifter Shield

0104110000072931

New product

All the native GPIO pins on the XU4 operate at 1.8V. However, many devices support only 3.3V or 5V.


See description for more details about the product.

Add to cart now!

More details

1 Item

Warning: Last items in stock!

139,00 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

-60,00 lei

199,00 lei tax incl.

Add to wishlist

More info

Description

Works with the ODROID-XU4.

All the native GPIO pins on the XU4 operate at 1.8V. However, many devices support only 3.3V or 5V.

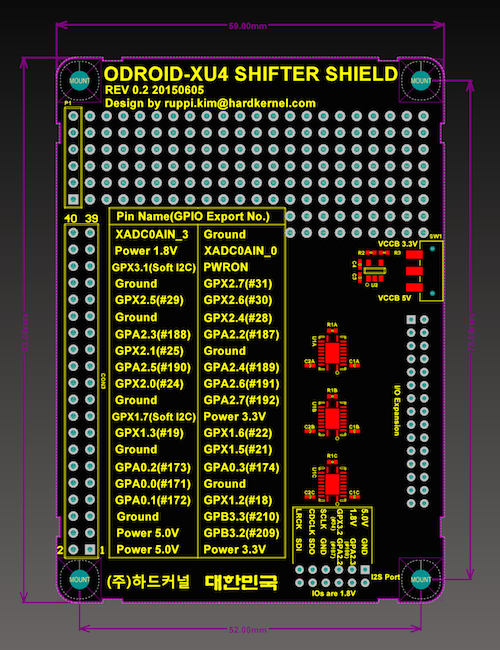

This level shifter board contains 3 x TSX0108E bi-directional level shifter ICs. The 30-pin and 12-pin GPIO ports on the XU4 are converted to the more common 0.1inch (2.54mm) pitch 40-pin header. All the signals can be level shifted to 3.3V or 5V. You can choose the voltage with a small hardware slide switch on the board.
The 40-pin header pin map is compatible with the ODROID-C1 and Raspberry Pi/Pi 2.
We are working on the WiringPi compatible libraries to simplify development.





Package Included

XU4 Shifter Shield Board

4 x 19mm PCB spacer (Metal)

8 x 10mm PCB spacer (Plastic)


Board Detail
