Ball Caster with 3/4" Metal Ball

0104110000027603

New product

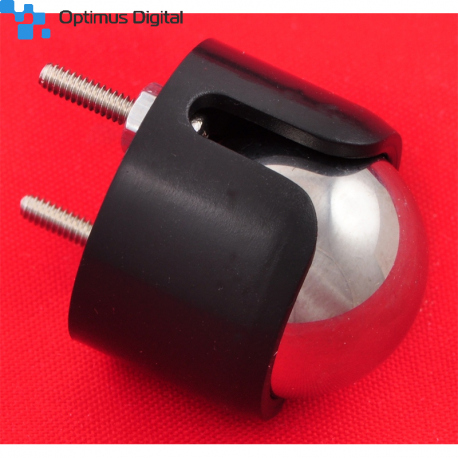

This ball caster uses a 3/4" diameter metal ball. The height of the assembled kit ranges from 0.8" to 1.1", depending on the combination of included spacers used.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

$4.08
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Overview

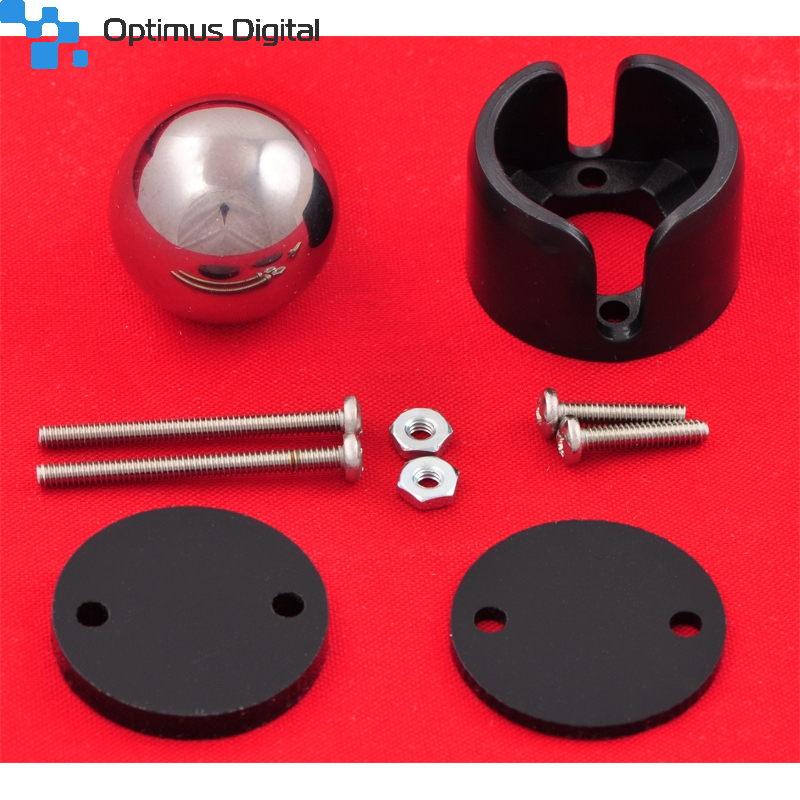

This ball caster kit includes a black ABS housing, a 3/4" diameter metal ball, two spacers (1/16" and 1/8" thick), and two #2 screw sets. The total height of the ball caster, 0.83", can be increased to about 1" using the included spacers. The two included #2 screws can be used to mount the ball caster to your chassis (the distance between the screw holes is 0.61").

Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will probably keep it from rolling well.

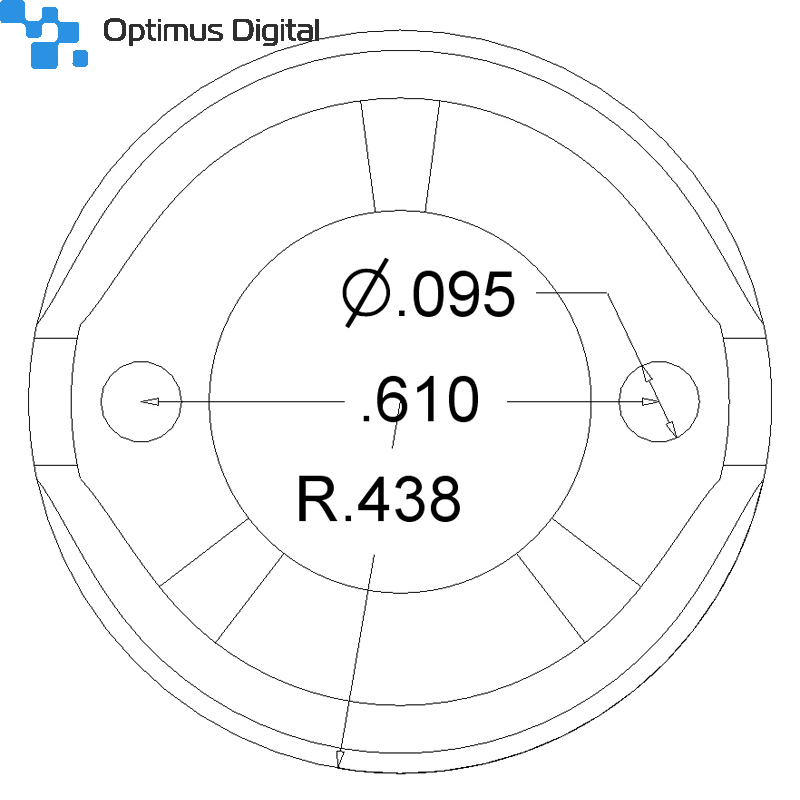

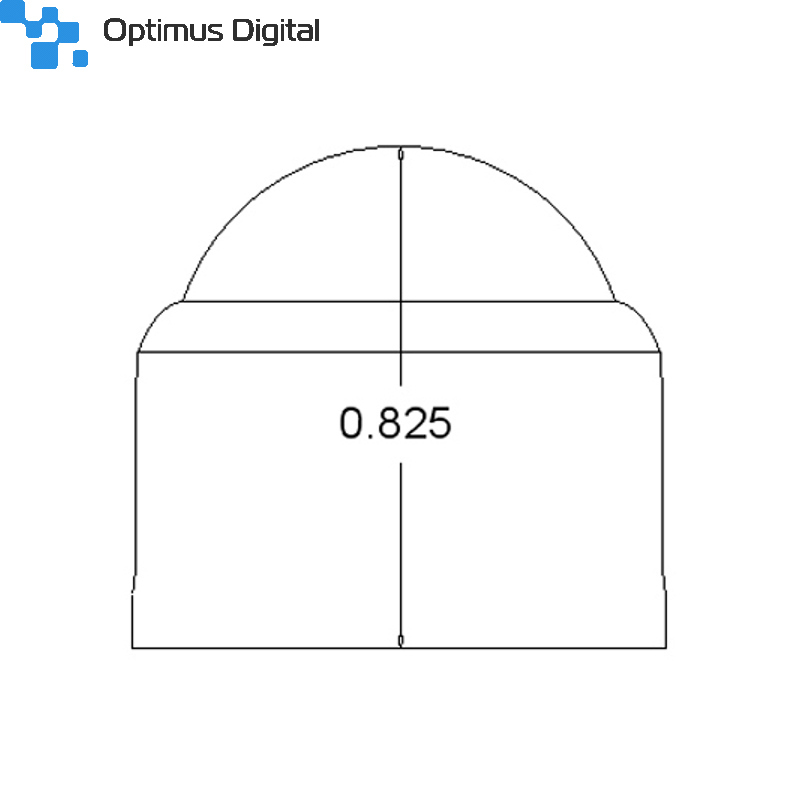

For detailed dimensions, see the dimension diagram (159k pdf).


Specifications

Dimensions

Ball diameter: 0.75 in
Weight: 30 g1


General specifications

Ball material: metal


Notes:

1 Without screws or spacers.

Ball caster with 3/4" metal ball with included hardware.
