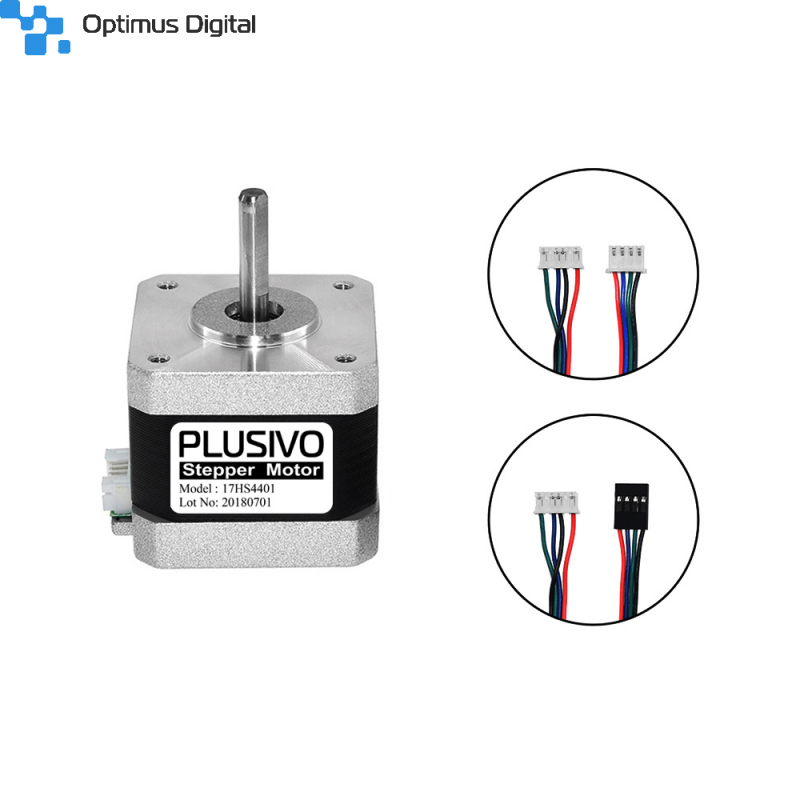

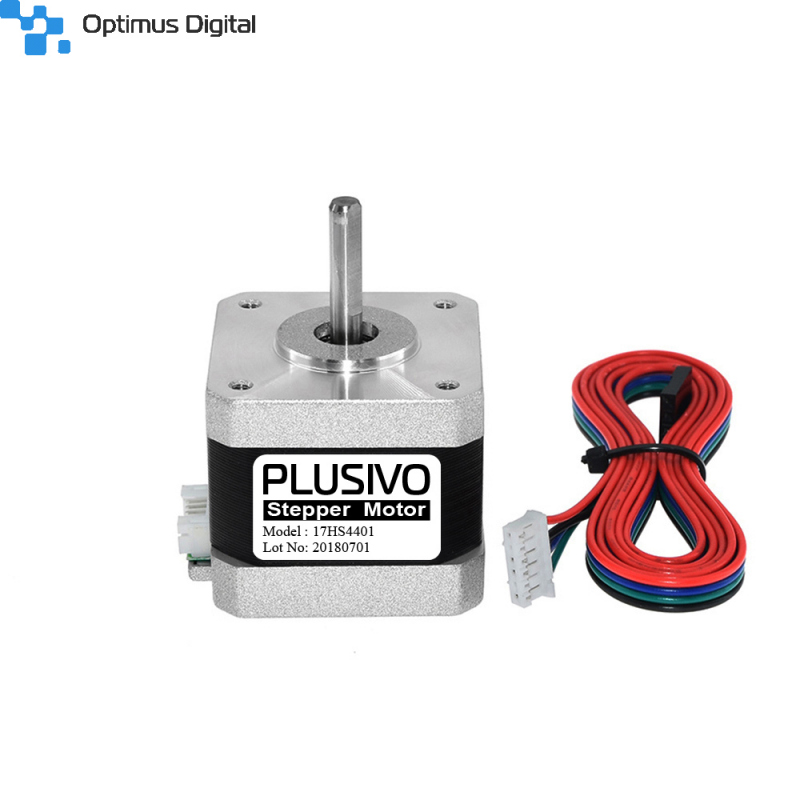

17HS4401 Stepper Motor (1.7 A, 40 N⋅cm)

OVERVIEW

Stepper motor is a motor that moves in discrete steps, one step at a time. It is generally used in a variety of applications where precise position control is desirable such as a 3D printer, laser cutter and pick & place machine. This NEMA 17HS4401 bipolar stepper motor has a 1.8º step angle (200 steps/revolution) with 40N.cm (56oz.in) holding torque.

Electrical Specification:

• Motor Type: Bipolar Stepper

• Step Angle: 1.8 deg.

• Holding Torque: 40N.cm (56oz.in)

• Rated Current/phase: 1.7A

• Phase Resistance: 1.5Ohm±10%

• Insulation Resistance: 100MΩ¸ Min, 500VDC

• Insulation Strength: 500VAC for one minute

Physical Specification:

• Frame Size: 42 x 42mm (1.7 inch x 1.7 inch)

• Body Length: 40mm

• Shaft Diameter: 5mm

• Number of Wire Leads: 4

• Wire Length: 400mm

• Weight: 280g

• Temperature rise: 80deg Max(rated current, 2 phase on)
