EasyDriver Stepper Motor Driver Module

0104110000008121

New product

This is the newest version of EasyDriver module that provides much more flexibility and control in driving stepper motor.


See description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

16,99 lei
tax incl.

Valid in the limit of the available stock

The price includes the costs for collection, treatment and ellimination of WEEE

Add to wishlist

More info

Description

EasyDriver is micro-stepping motor driver based on the A3967 integrated circuit. It features an onboard voltage regulator for the digital interface that can be set to 5 V or 3.3 V. This is compatible with any device that can output a digital 0 to 5 V pulse. MS1 and MS2 pins are routed out to change the micro-stepping resolution to full, half quarter, and eighth steps (default is eighth).


Specifications

  • A3967 micro-stepping driver
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • Adjustable current control from 150 mA / phase to 750 mA / phase
  • 7 V to 30 V power supply
  • 5 V or 3.3 V I/O voltage
  • The higher the voltage, the higher the torque at high speeds


Don't delay, buy today.


Add to cart now!

Reviews

Write a review

EasyDriver Stepper Motor Driver Module

EasyDriver Stepper Motor Driver Module

This is the newest version of EasyDriver module that provides much more flexibility and control in driving stepper motor.


See description for more details about the product.

Add to cart now!

Customers who bought this product also bought:

Download

Datasheet A3967

Download (387.81k)

Schema electrica EasyDriver

Download (24.02k)

PCB EasyDriver

Download (48.76k)

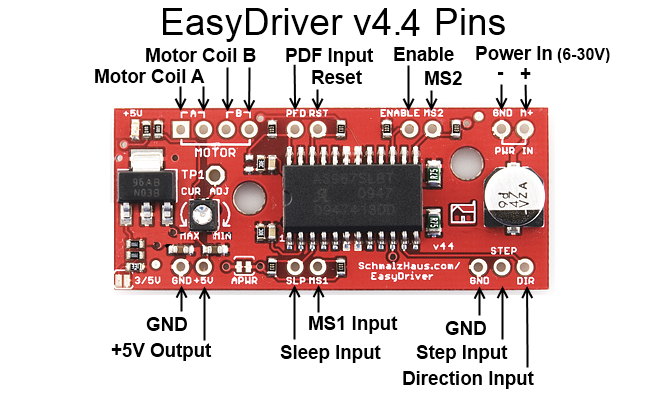

Dispunere Pini EasyDriver

Download (239.2k)
